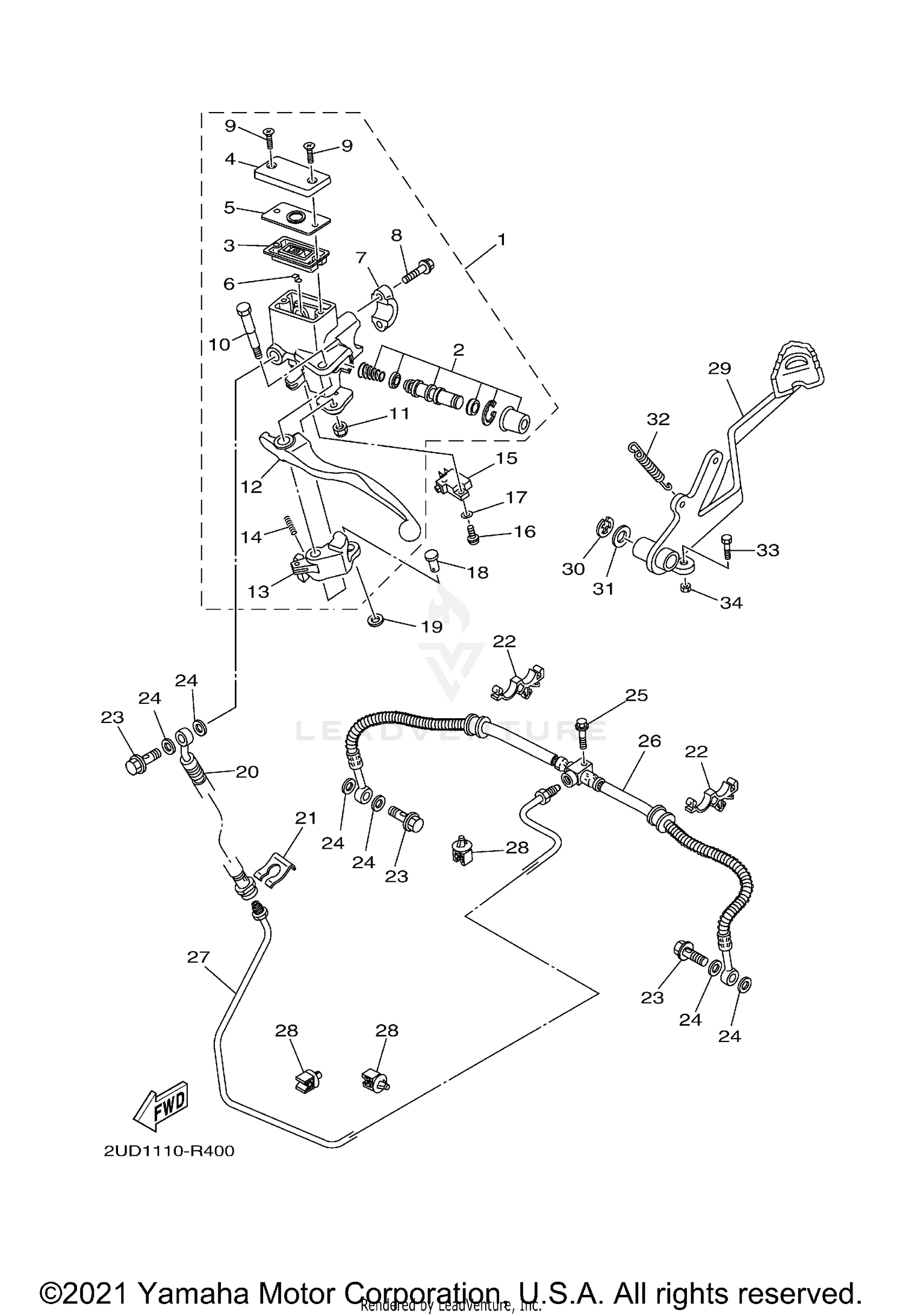

| Ref | Part Number | Description |
|---|
| 1 |
2UD-F583V-00-00 |
RR. MASTER CYLINDER ASSY. Price: $110.99 |
| 2 |
B16-F5807-00-00 |
CYLINDER KIT, MASTER Price: $33.99 |
| 3 |
B16-F5854-00-00 |
DIAPHRAGM, RESERVOIR Price: $4.55 |
| 4 |
B16-F5852-00-00 |
CAP, RESERVOIR Price: $8.49 |
| 5 |
B16-F585B-00-00 |
PLATE, DIAPHRAGM Price: $6.49 |
| 6 |
B16-F5889-00-00 |
SEPARATOR Price: $0.75 |
| 7 |
B16-F5867-00-00 |
BRACKET, MASTER CYLINDER Price: $10.49 |
| 8 |
B16-F6332-00-00 |
BOLT Price: $5.49 |
| 9 |
98780-04012-00 |
SCREW, FLAT HEAD Price: $3.10 |
| 10 |
2UD-F589F-00-00 |
BOLT, LEVER Price: $7.49 |
| 11 |
2UD-F6294-00-00 |
NUT 1 Price: $3.05 |
| 12 |
2UD-F3912-00-00 |
LEVER, BRAKE Price: $23.99 |
| 13 |
2UD-F6168-00-00 |
KNOCKER Price: $18.99 |
| 14 |
2UD-F5865-00-00 |
SPRING, SEAT Price: $3.30 |
| 15 |
1HP-82530-03-00 |
STOP SWITCH ASSY Price: $34.99 |
| 16 |
98517-04012-00 |
SCREW,PANHEAD This part replaces 98502-04012-00. Price: $4.20 |
| 17 |
92990-04600-00 |
WASHER, PLATE This part replaces 92902-04600-00. Price: $0.99 |
| 18 |
90240-08013-00 |
PIN, CLEVIS Price: $9.49 |
| 19 |
92990-08600-00 |
WASHER, PLATE This part replaces 92902-08600-00. Price: $2.70 |
| 20 |
2UD-F5872-02-00 |
HOSE, BRAKE 1 Price: $22.99 |
| 21 |
2GU-25866-00-00 |
CIRCLIP Price: $10.99 |
| 22 |
90464-16006-00 |
CLAMP Price: $10.49 |
| 23 |
90401-10015-00 |
BOLT, UNION Price: $12.49 |
| 24 |
90201-10118-00 |
WASHER, PLATE Price: $3.80 |
| 25 |
95817-06025-00 |
BOLT, FLANGE This part replaces 95812-06025-00. Price: $1.75 |
| 26 |
2BG-F5874-02-00 |
HOSE, BRAKE 3 This part replaces 2BG-F5874-01-00. Price: $77.99 |
| 27 |
1HP-F5882-02-00 |
PIPE, BRAKE 2 This part replaces 1HP-F5882-01-00. Price: $18.49 |
| 28 |
5KM-81677-00-00 |
CLAMP 1 Price: $7.49 |
| 29 |
1HP-F7211-01-00 |
PEDAL, BRAKE This part replaces 1HP-F7211-00-00. Price: $37.99 |
| 30 |
99002-10600-00 |
CIRCLIP Price: $9.49 |
| 31 |
90201-14023-00 |
WASHER, PLATE Price: $6.49 |
| 32 |
90506-20014-00 |
SPRING, TENSION Price: $9.49 |
| 33 |
97012-06014-00 |
BOLT This part replaces 97022-06014-00. Price: $8.49 |
