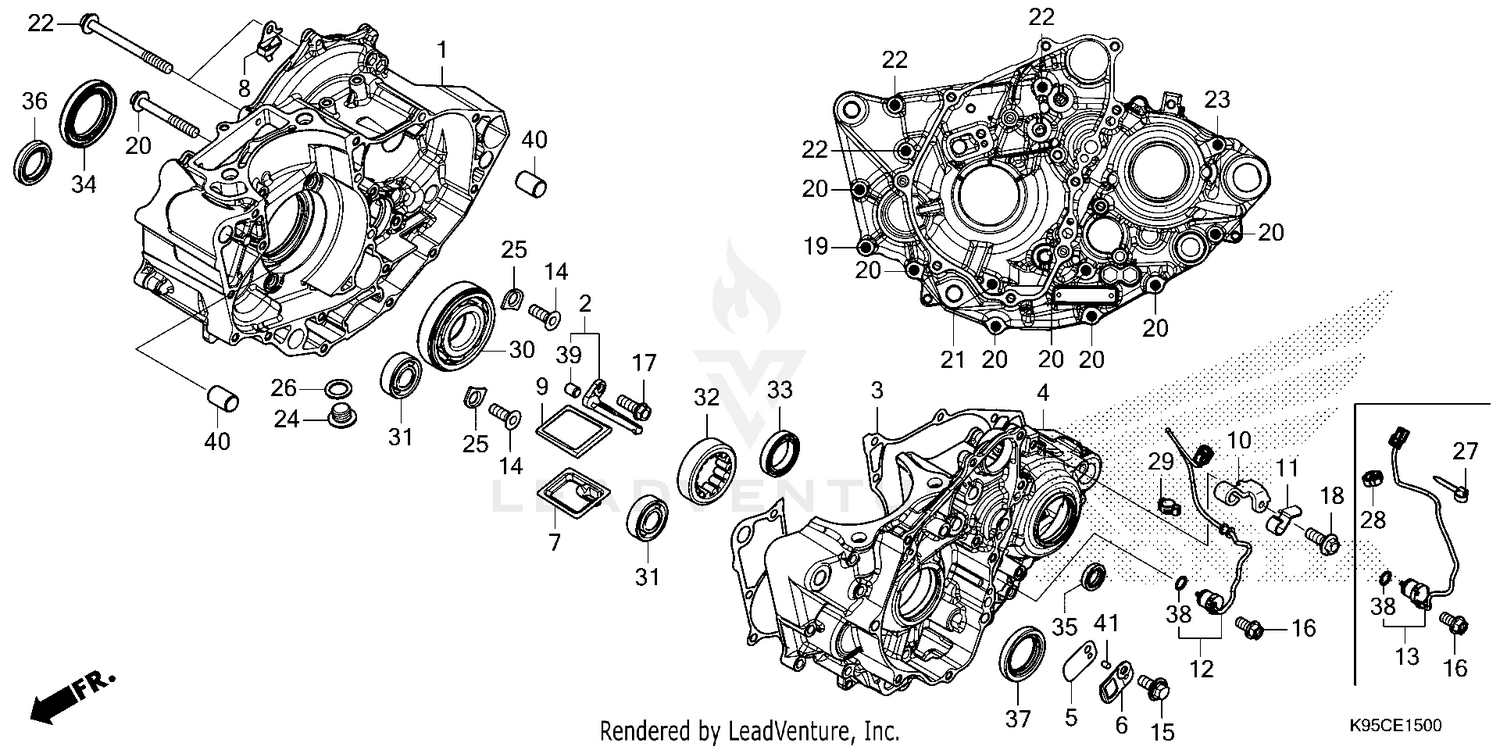

| Ref | Part Number | Description |
|---|
| 1 |
11100-K95-AA0 |
CRANKCASE, R. Price: $464.04 |
| 2 |
11110-K95-A40 |
JET, PISTON Price: $56.40 |
| 3 |
11191-K95-A21 |
GASKET, CRANKCASE Price: $33.71 |
| 4 |
11200-K95-AA0 |
CRANKCASE, L. Price: $437.37 |
| 5 |
11221-MKE-A00 |
VALVE, REED Price: $9.78 |
| 6 |
11231-K95-AG0 |
STOPPER, REED VALVE Price: $10.49 |
| 7 |
15153-K95-A20 |
STRAINER, OIL Price: $20.31 |
| 8 |
15301-K95-AA0 |
PLATE, OIL GUIDE (NOT AVAILABLE) Price: $7.25 |
| 9 |
15421-MKE-A70 |
SCREEN, OIL FILTER Price: $17.09 |
| 10 |
22838-MEN-A30 |
RECEIVER, CLUTCH CABLE Price: $6.22 |
| 11 |
32113-K95-A60 |
STAY, CHANGE SWITCH WIRE Price: $4.07 |
| 12 |
35759-K95-AA1 |
SWITCH ASSY., CHANGE Price: $110.07 |
| 14 |
90001-MEN-850 |
SCREW, SPECIAL FLAT (6X17) Price: $2.05 |
| 15 |
90019-MKE-A00 |
BOLT-WASHER (6X14) Price: $2.71 |
| 16 |
90020-GHB-620 |
BOLT, FLANGE (6X12) Price: $2.45 |
| 17 |
90020-GHB-640 |
BOLT, FLANGE (6X16) Price: $2.58 |
| 18 |
90020-GHB-640 |
BOLT, FLANGE (6X16) Price: $2.58 |
| 19 |
90025-GHB-690 |
BOLT, FLANGE (6X28) Price: $2.65 |
| 20 |
90025-GHB-750 |
BOLT, FLANGE (6X45) Price: $3.53 |
| 21 |
90025-GHB-760 |
BOLT, FLANGE (6X50) Price: $3.31 |
| 22 |
90025-GHB-790 |
BOLT, FLANGE (6X65) Price: $3.84 |
| 23 |
90025-GHB-810 |
BOLT, FLANGE (6X75) Price: $3.67 |
| 24 |
90084-K95-AA0 |
CAP (14MM) Price: $9.47 |
| 25 |
90441-MEN-A30 |
PLATE, BEARING HOLDER Price: $4.53 |
| 26 |
90544-KF0-000 |
WASHER, SEALING (14MM) Price: $4.09 |
| 29 |
90690-MJE-D11 |
CLIP, CABLE (10MM) Price: $2.53 |
| 30 |
91001-K95-A21 |
BEARING, RADIAL BALL (30X72X16) Price: $47.84 |
| 31 |
91001-MEN-A31 |
BEARING, RADIAL BALL SPECIAL (6202) Price: $13.44 |
| 32 |
91002-K95-A21 |
BEARING, SPECIAL ROLLER Price: $59.07 |
| 33 |
91004-GEM-003 |
BEARING, RADIAL BALL (6805) Price: $13.25 |
| 34 |
91202-K95-A41 |
OIL SEAL (39X56X7.5) Price: $21.04 |
| 35 |
91203-KA4-771 |
OIL SEAL (14X22X5) (NOK) Price: $4.80 |
| 36 |
91206-K95-A21 |
OIL SEAL (24X36X7) Price: $9.58 |
| 37 |
91207-K95-A21 |
OIL SEAL (31X45X7) Price: $10.80 |
| 38 |
91305-KC1-850 |
O-RING (16.5X2.5) Price: $2.24 |
| 39 |
94301-08100 |
PIN A, DOWEL (8X10) Price: $2.35 |
| 40 |
94301-14200 |
PIN A, DOWEL (14X20) Price: $2.58 |
