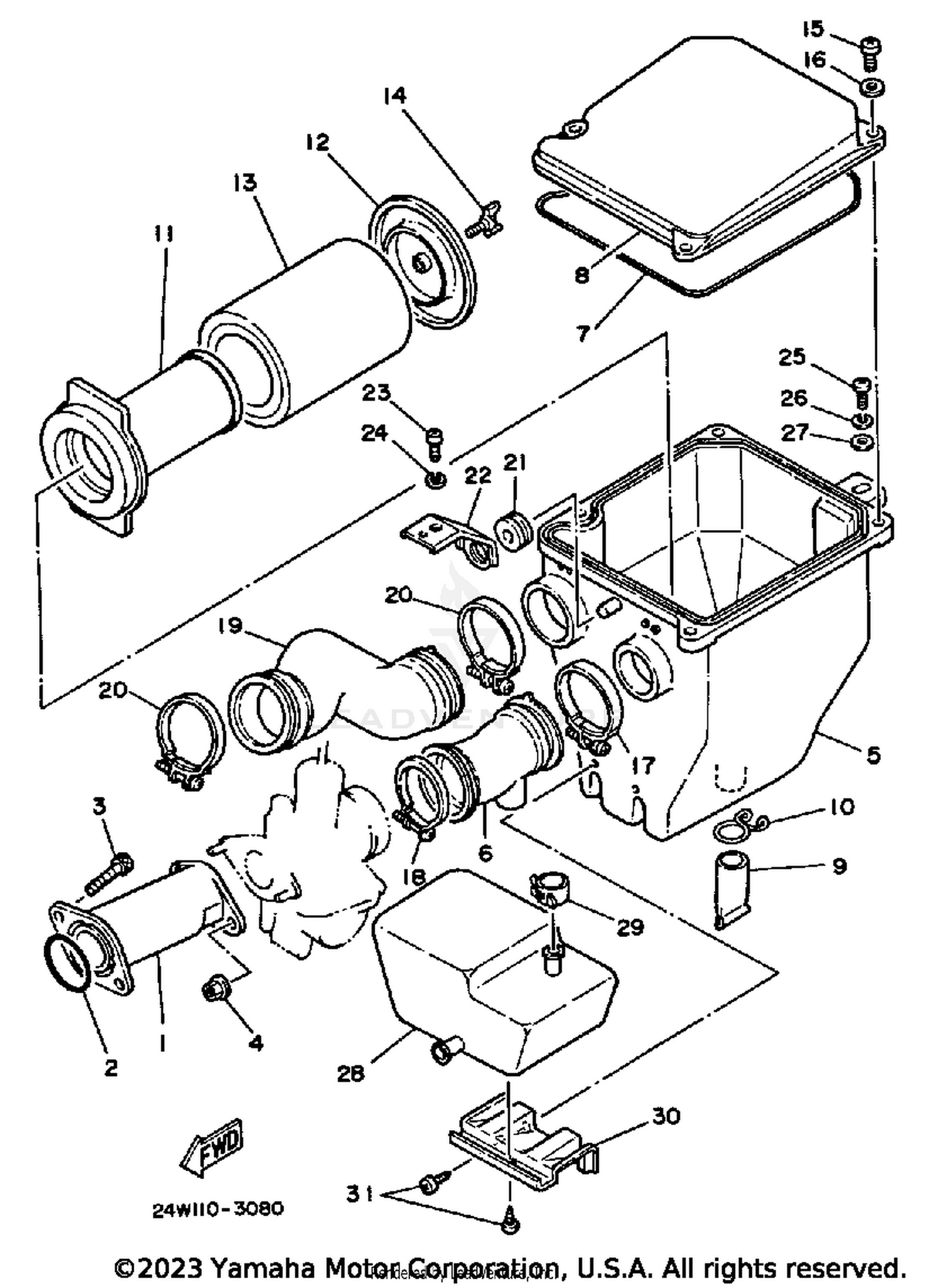

| Ref | Part Number | Description |
|---|
| 1 |
24W-13586-02-00 |
JOINT, CARBURETOR 1 Price: $153.99 |
| 2 |
93210-35537-00 |
O-RING Price: $15.49 |
| 3 |
91317-06020-00 |
BOLT This part replaces 91316-06020-00. Price: $2.75 |
| 4 |
95780-06500-00 |
NUT, FLANGE This part replaces 95701-06500-00. Price: $2.95 |
| 5 |
21V-14411-00-00 |
CASE,AIR CLEANER 1 Price: $23.99 |
| 6 |
24W-14453-00-00 |
JOINT,AIR CLNR 1 Price: $20.99 |
| 7 |
1VJ-14462-00-00 |
GASKET, TAIL LENS Price: $19.99 |
| 8 |
21V-14412-01-00 |
CAP, CLEANER CASE 1 This part replaces 21V-14412-00-00. Price: $19.99 |
| 9 |
59V-14457-00-00 |
SEAL Price: $7.49 |
| 10 |
90467-22080-00 |
CLIP Price: $9.49 |
| 11 |
21V-14458-01-00 |
GUIDE, ELEMENT Price: $106.99 |
| 12 |
21V-14468-00-00 |
PLATE, ELEMENT FTNG Price: $19.49 |
| 14 |
90122-05022-00 |
BOLT, WING This part replaces 90122-05018-00. Price: $8.49 |
| 15 |
97885-05016-00 |
SCREW, PAN HEAD This part replaces 98580-05016-00. Price: $4.60 |
| 16 |
92990-05600-00 |
WASHER, PLATE This part replaces 92901-05600-00. Price: $0.80 |
| 17 |
90460-49058-00 |
CLAMP, HOSE Price: $8.49 |
| 18 |
90450-47002-00 |
HOSE CLAMP ASSY This part replaces 90460-46206-00. Price: $9.49 |
| 19 |
21V-14437-01-00 |
DUCT Price: $23.99 |
| 20 |
90460-49058-00 |
CLAMP, HOSE Price: $8.49 |
| 21 |
90480-16233-00 |
GROMMET Price: $9.49 |
| 22 |
21V-14499-00-00 |
STAY 2 Price: $13.99 |
| 23 |
97885-06012-00 |
SCREW, PAN HEAD This part replaces 98580-06012-00. Price: $3.35 |
| 24 |
92995-06100-00 |
WASHER, PAN HEAD Price: $3.45 |
| 25 |
98580-06020-00 |
SCREW, PAN HEAD Price: $9.49 |
| 26 |
92995-06100-00 |
WASHER, PAN HEAD Price: $3.45 |
| 27 |
90201-06380-00 |
WASHER PLAIN This part replaces 90201-06067-00. Price: $0.65 |
| 28 |
21V-13581-00-00 |
CHAMBER,AIR Price: $29.99 |
| 29 |
90467-19051-00 |
CLIP Price: $3.50 |
| 30 |
21V-14493-00-00 |
STAY 1 Price: $2.58 |
