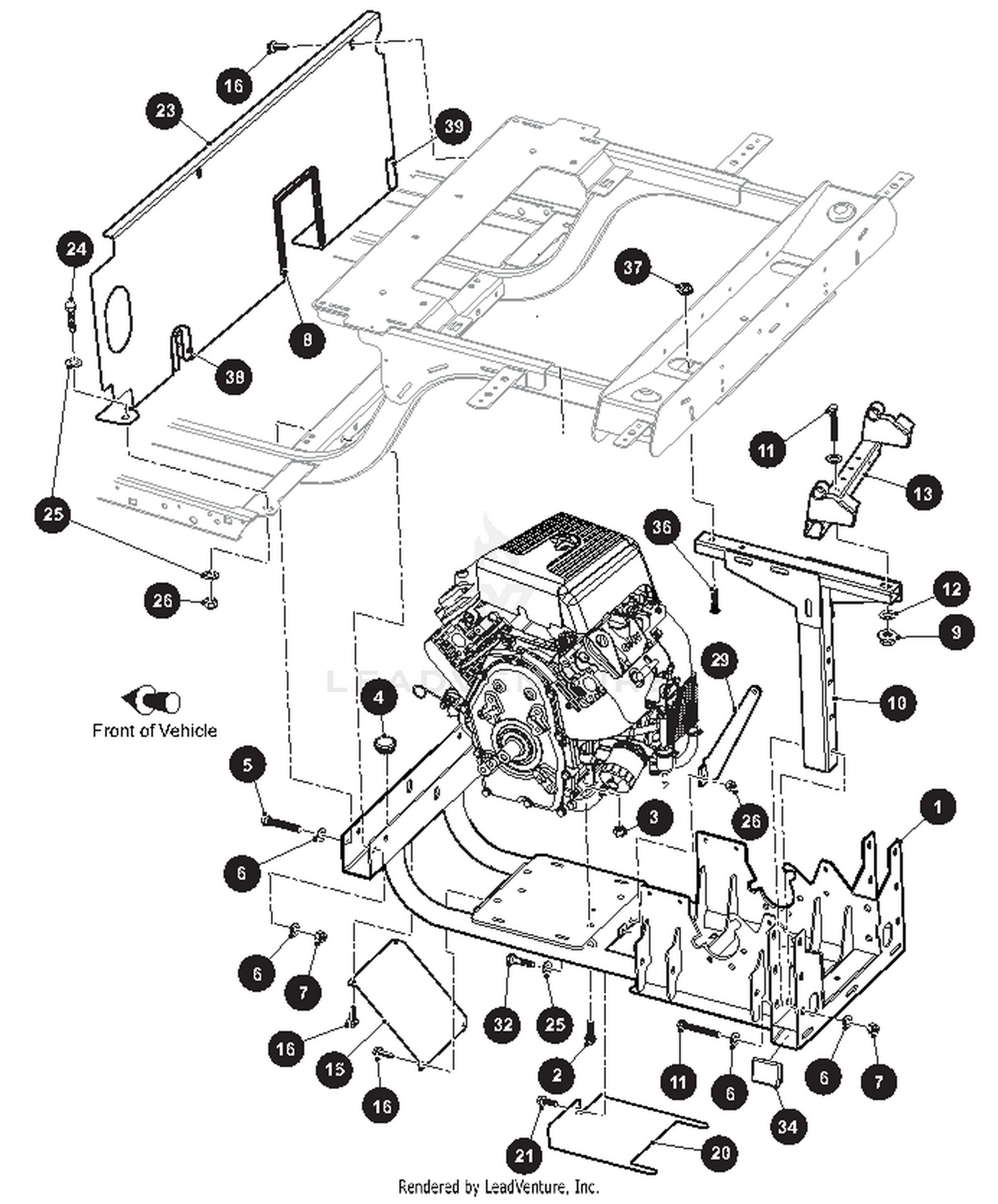

| Ref | Part Number | Description |
|---|
| 1 |
644792 |
FRAME (POWERTRAIN) Price: $885.38 |
| 2 |
603800 |
FLANGED HEX HEAD BOLT, M10-1.5X50 Price: $2.99 |
| 3 |
600525 |
LOCK NUT, M10-1.5 Price: $1.99 |
| 4 |
628915 |
TUBE PLUG, 1.5 OD X 8 12GA PLASTIC Price: $2.85 |
| 5 |
00428G8 |
HEX HEAD BOLT, 3/8-16X 2 1/4 Price: $1.99 |
| 6 |
00560G1 |
FLAT WASHER, 3/8" Price: $0.99 |
| 7 |
11098G5 |
LOCK NUT, 3/8"-16 Price: $0.99 |
| 8 |
645169G2 |
TRIM, 14.5" LG Price: Call Us |
| 9 |
12262G1 |
FLANGED LOCK NUT, 3/8"-16 Price: $2.99 |
| 10 |
632160 |
SUPPORT WELDMENT GAS POWERTRAIN Not Available Price: |
| 11 |
00665G9 |
HEX HEAD BOLT, 3/8-16 X 3 1/2 Price: $7.99 |
| 12 |
15121G1 |
FLAT WASHER, 3/8" Price: $0.99 |
| 13 |
637334 |
BED PIVOT WELDMENT Not Available Price: |
| 15 |
634680 |
STARTER GUARD Price: $31.16 |
| 16 |
00715G2 |
HEX WASHER HEAD BOLT, 5/16-18 X 0.8 Price: $1.99 |
| 20 |
634687 |
ACCESS PANEL (OIL) Price: $12.59 |
| 21 |
548604 |
FLANGED HEX HEAD BOLT, 5/16-18X3/4 Price: $1.62 |
| 23 |
650045 |
HEAT SHIELD, BATTERY Price: $98.18 |
| 24 |
00462G7 |
HEX HEAD BOLT, 7/16-14 X 7/8 Price: $3.16 |
| 25 |
00922G3 |
FLAT WASHER, 7/16" Price: $0.99 |
| 26 |
00734G1 |
LOCK NUT, 7/16-14 Price: $1.99 |
