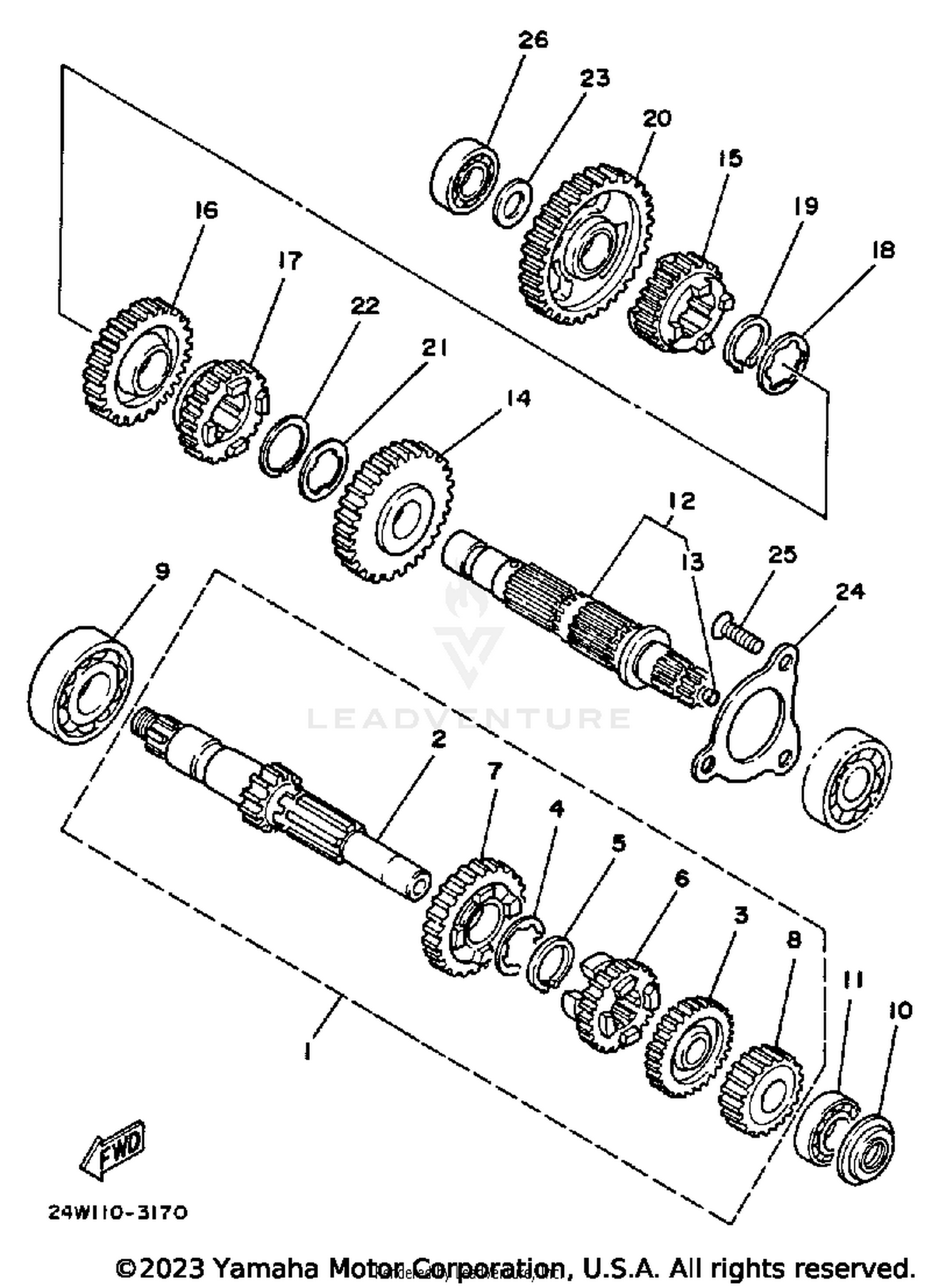

| Ref | Part Number | Description |
|---|
| 1 |
24W-17410-10-00 |
MAIN AXLE Price: $202.99 |
| 2 |
24W-17401-00-00 |
MAIN AXLE ASSEMBLY Price: $134.99 |
| 3 |
15A-17151-01-00 |
GEAR, 5TH PINION (28T) This part replaces 15A-17151-00-00. Price: $46.99 |
| 4 |
90209-16209-00 |
WASHER Price: $8.49 |
| 5 |
93410-20038-00 |
CIRCLIP, S-TYPE Price: $4.05 |
| 6 |
24W-17131-00-00 |
GEAR, 3RD PINION Price: $37.99 |
| 7 |
15A-17141-00-00 |
GEAR, 4TH PINION (25T) This part replaces 24W-17141-00-00. Price: $32.99 |
| 8 |
24W-17121-00-00 |
GEAR, 2ND PINION Price: $34.99 |
| 9 |
93306-20461-00 |
BEARING (B6204) This part replaces 93306-20421-00. Price: $43.99 |
| 10 |
93101-15101-00 |
OIL SEAL Price: $12.49 |
| 11 |
93306-20211-00 |
BEARING Price: $28.99 |
| 12 |
24W-17402-00-00 |
DRIVE AXLE ASSY Price: $119.99 |
| 13 |
90331-07041-00 |
PLUG, TIGHT Price: $3.76 |
| 14 |
24W-17221-10-00 |
GEAR, 2ND WHEEL Price: $73.99 |
| 15 |
5MP-17261-00-00 |
GEAR, 6TH WHEEL (23T) This part replaces 1EV-17251-00-00. Price: $97.99 |
| 16 |
24W-17231-00-00 |
GEAR, 3RD WHEEL Price: $41.99 |
| 17 |
24W-17241-00-00 |
GEAR, 4TH WHEEL (26T) Price: $57.99 |
| 18 |
90209-18208-00 |
WASHER Price: $9.49 |
| 19 |
93410-22039-00 |
CIRCLIP Price: $9.49 |
| 20 |
36X-17211-00-00 |
GEAR,1ST WHEEL This part replaces 24W-17211-00-00. Price: $56.99 |
| 21 |
90209-23241-00 |
WASHER This part replaces 90209-23233-00. Price: $3.95 |
| 22 |
93410-26067-00 |
CIRCLIP This part replaces 93440-26121-00. Price: $9.49 |
| 23 |
90201-154E8-00 |
WASHER, PLATE (T=1.0) Price: $9.49 |
| 24 |
24W-17558-00-00 |
PLATE, BEARING Price: $23.99 |
| 25 |
90149-08013-00 |
SCREW This part replaces 90149-08152-00. Price: $9.49 |
