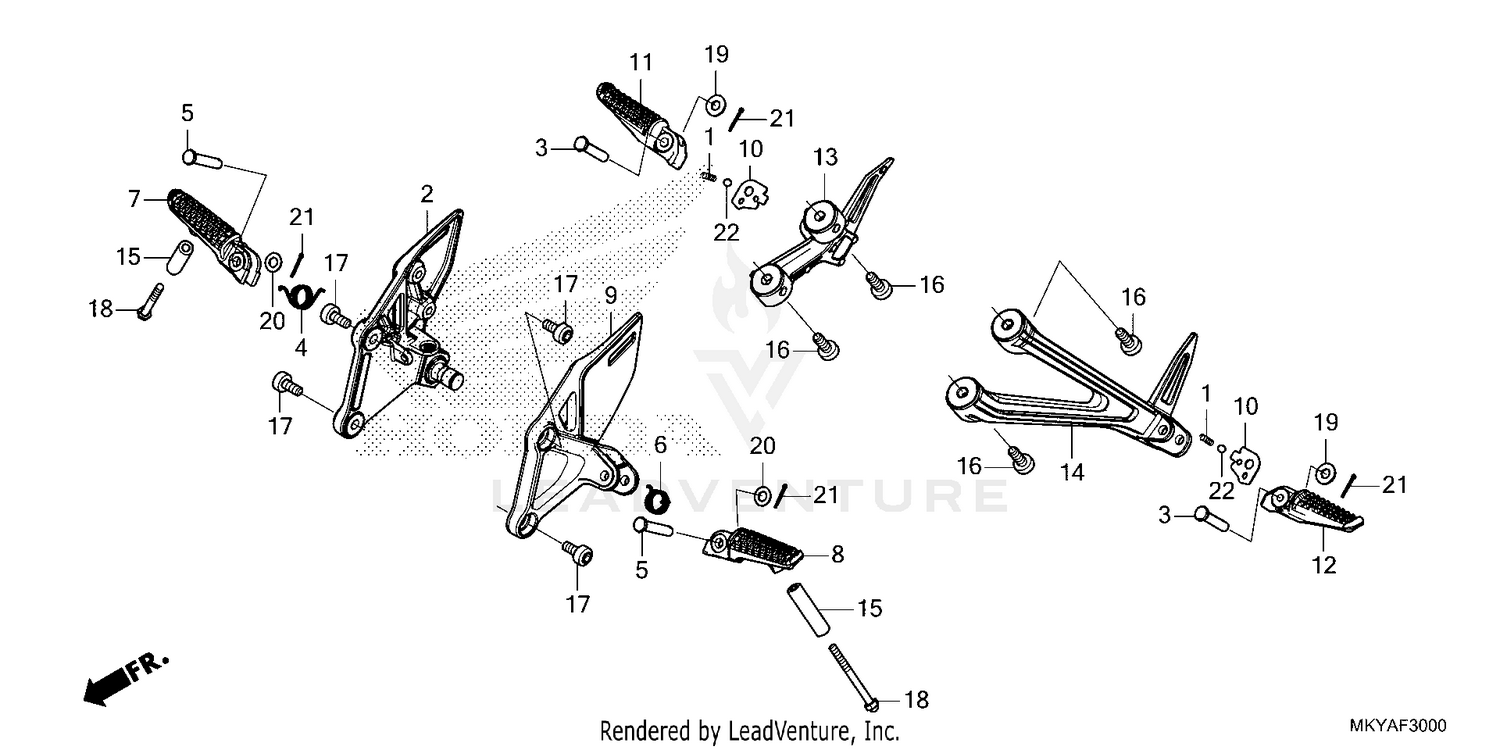

| Ref | Part Number | Description |
|---|
| 1 |
28333-300-000 |
SPRING, KICK STARTER STOPPER Price: $3.55 |
| 2 |
50600-MKN-D50 |
HOLDER, R. MAIN STEP Price: $44.20 |
| 3 |
50603-033-010 |
PIN, STEP BAR JOINT Price: $4.02 |
| 4 |
50617-445-840 |
SPRING, R. STEP RETURN (L. SIDE) Price: $6.84 |
| 5 |
50639-ML0-010 |
PIN, STEP BAR Price: $6.36 |
| 6 |
50644-445-840 |
SPRING, L. STEP RETURN (R. SIDE) Price: $6.84 |
| 7 |
50660-MKN-D50 |
ARM, R. MAIN STEP Price: $16.75 |
| 8 |
50665-MKN-D50 |
ARM, L. MAIN STEP Price: $16.75 |
| 9 |
50700-MKN-D50 |
HOLDER, L. MAIN STEP Price: $36.76 |
| 10 |
50718-MN8-000 |
PLATE, PILLION STEP CLICK Price: $2.84 |
| 11 |
50720-K94-T00 |
ARM, R. PILLION STEP Price: $14.20 |
| 12 |
50730-K94-T00 |
ARM, L. PILLION STEP Price: $14.20 |
| 13 |
50750-MKN-D50 |
HOLDER, R. PILLION STEP Price: $40.11 |
| 14 |
50760-MKN-D50 |
HOLDER, L. PILLION STEP Price: $40.11 |
| 15 |
51486-MKN-D50 |
COLLAR, STEP (LOWER) Price: $3.87 |
| 16 |
90116-MGZ-J00 |
BOLT, SOCKET (8X22) Price: $1.09 |
| 17 |
90116-MJE-D00 |
BOLT, SOCKET (8X18) Price: $3.45 |
| 18 |
92501-06060-0A |
BOLT, HEX. CAP (6X60) Price: $1.36 |
| 19 |
94101-08000 |
WASHER, PLAIN (8MM) Price: $0.87 |
| 20 |
94102-08800 |
WASHER, PLAIN (8MM) Price: $0.98 |
| 21 |
94201-20150 |
PIN, COTTER (2.0X15) Price: $1.08 |
