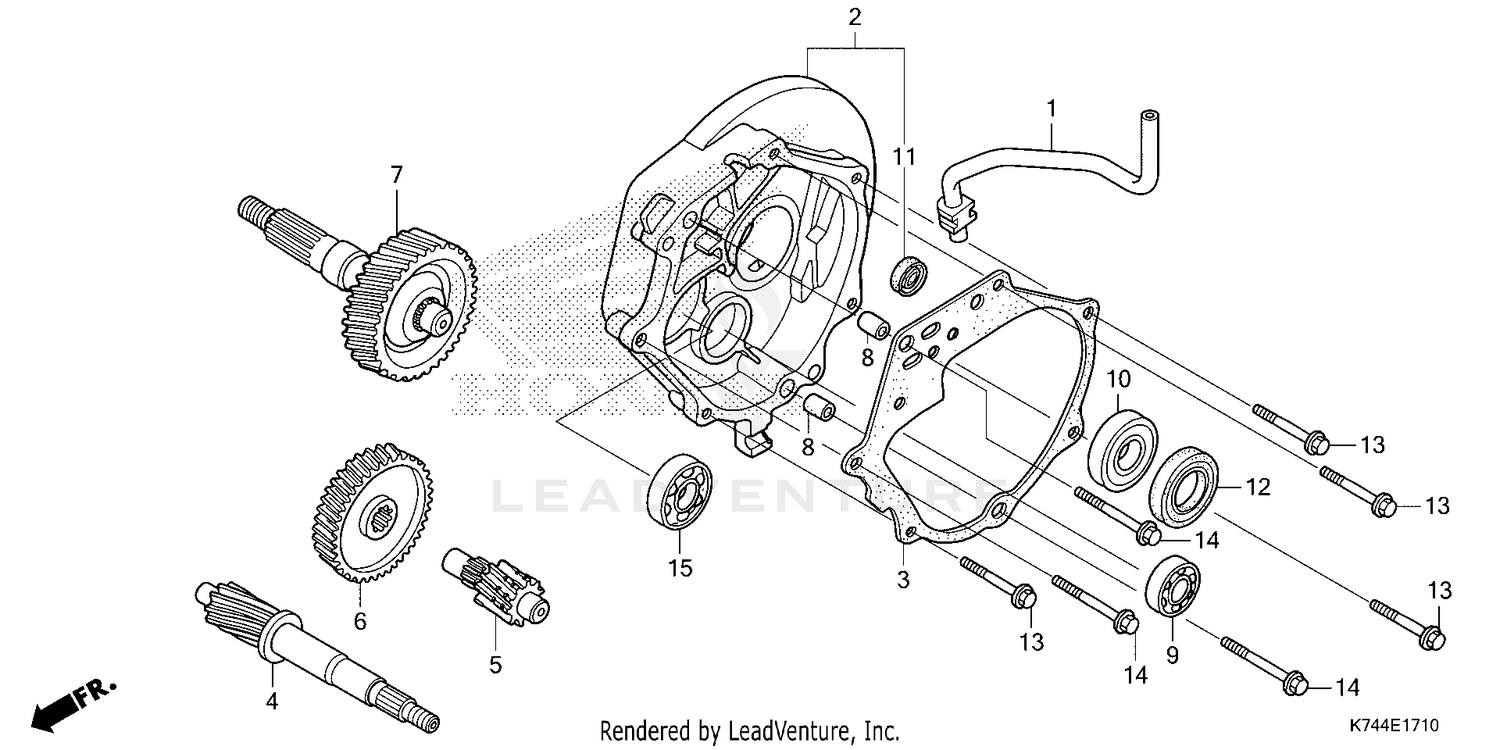

TRANSMISSION
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11220-KWP-H00 | TUBE, TRANSMISSION BREATHER Price: $0.67 |
| 2 | 21200-KWP-H00 | CASE, TRANSMISSION Price: $64.15 |
| 3 | 21395-KWP-902 | GASKET, TRANSMISSION CASE Price: $1.84 |
| 4 | 23411-KWP-H00 | DRIVESHAFT (19T) Price: $11.78 |
| 5 | 23421-KVT-G00 | COUNTERSHAFT (13T) (NOT AVAILABLE) Price: Call Us |
| 5 | 23421-KWP-H10 | COUNTERSHAFT (13T) (NOT AVAILABLE) This part replaces 23421-KWP-H00. Price: $14.02 |
| 6 | 23422-KWP-F00 | GEAR (51T) Price: $9.75 |
| 6 | 23422-KWP-H10 | GEAR, COUNTER (51T) (NOT AVAILABLE) Price: Call Us |
| 7 | 23430-KWP-H00 | GEAR, FINAL (49T) Price: $21.47 |
| 8 | 90701-KPL-900 | PIN (8X14) Price: $0.16 |
| 9 | 91006-KWP-G31 | BEARING (6201) Price: $2.98 |
| 9 | 91006-KWP-G32 | BEARING (6201) Price: $3.71 |
| 10 | 91008-KWP-D02 | BEARING (6004UU) This part replaces 91008-KWP-D01. Price: $7.20 |
| 10 | 91008-KWP-D03 | BEARING, RADIAL BALL (6004UU) (NEI LTD) Price: Call Us |
| 11 | 91203-KPL-901 | OIL SEAL (14X20X3.2) Price: $0.44 |
| 11 | 91204-KWP-D01 | OIL SEAL (14X20X3.2) Price: $0.20 |
| 12 | 91225-KWP-D01 | OIL SEAL (27X42X7) Price: $1.53 |
| 13 | 95701-06030-00 | BOLT, FLANGE (6X30) Price: $1.97 |
| 14 | 95701-06040-00 | BOLT, FLANGE (6X40) BOLT, FLANGE (6X45) Price: $1.97 |
