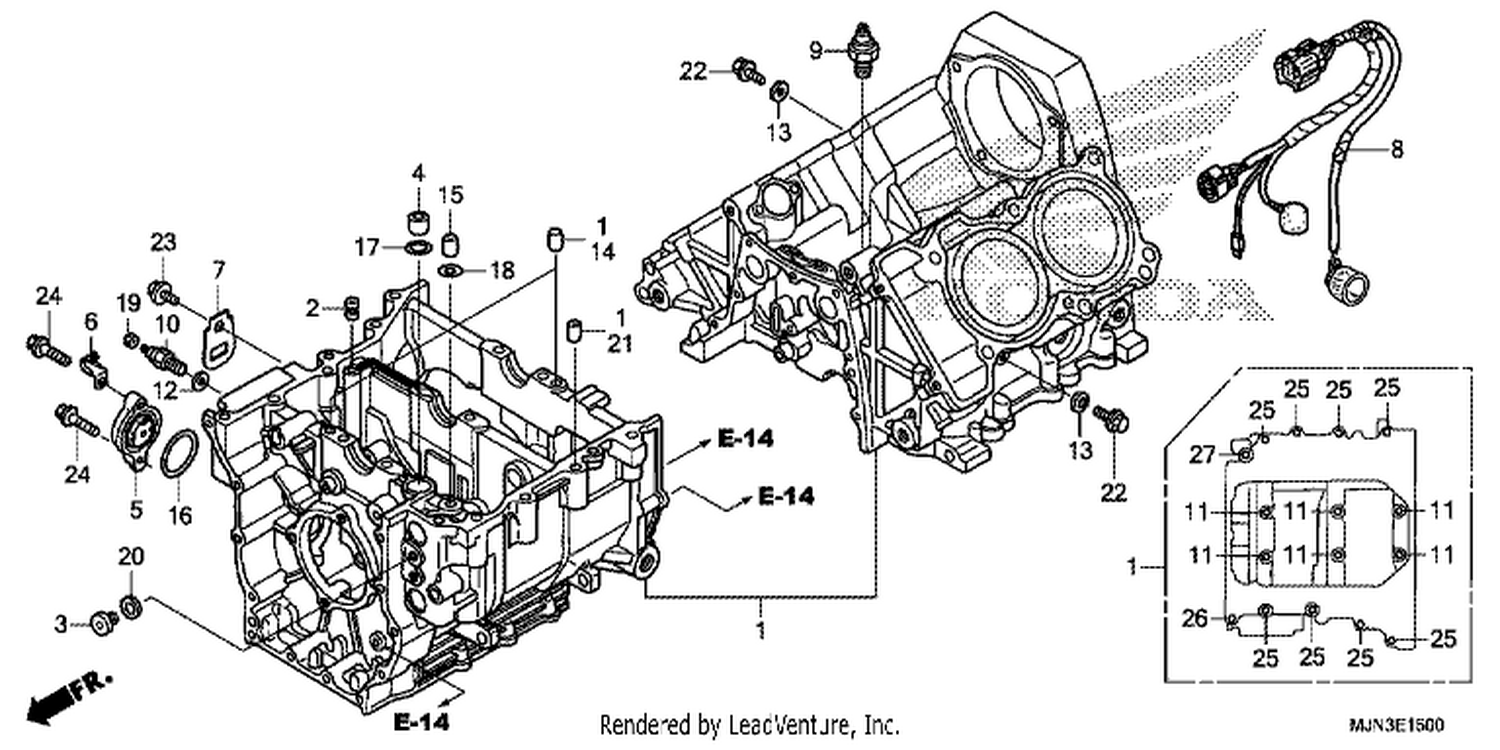

CRANKCASE

 CRANKCASE

Parts (27)

RefPart NumberDescription
1 11000MJNA00 CRANKCASE SET Price: Call Us
1 11000MJNA01 CRANKCASE SET Price: Call Us
2 11205MCS000 ORIFICE A, 1.6MM Price: Call Us
3 12206MBW000 BOLT, SEALING, 14MM Price: Call Us
4 15326KBV000 COLLAR, 16X18X10 Price: Call Us
5 15660MJNA00 FINDER COMP., OIL LEVEL Price: Call Us
6 16106KW7900 CLIP B, TUBE Price: Call Us
7 30535MJNA00 STAY, HARNESS CLIP Price: Call Us
8 32109MJNA00 SUB HARNESS, ENGINE Price: Call Us
9 35500MJ4024 SWITCH ASSY., OIL PRESSURE (DENSO) Price: Call Us
10 35600MK4860 SWITCH ASSY., NEUTRAL Price: Call Us
11 90001MCS000 BOLT, FLANGE, 10X87 Price: Call Us
12 90443MJ6000 WASHER, NEUTRAL Price: Call Us
13 90463ML7000 WASHER, SEALING, 6.5MM Price: Call Us
14 90701MV9670 DOWEL PIN, 10X16 Price: Call Us
15 90702MJ4000 DOWEL PIN, 10X10 Price: Call Us
16 91301679003 O-RING, 45X2.5 (ARAI) Price: Call Us
17 91302KE8003 O-RING, 18X3 (ARAI) Price: Call Us
18 91305422000 O-RING, 9.8X2.4 Price: Call Us
19 9405004000 NUT, FLANGE, 4MM Price: Call Us
20 9410914000 WASHER, DRAIN PLUG, 14MM Price: Call Us
21 9430110160 DOWEL PIN, 10X16 Price: Call Us
22 957010601200 BOLT, FLANGE, 6X12 Price: Call Us
23 957010601202 BOLT, FLANGE, 6X12 Price: Call Us
24 957010602502 BOLT,FLANGE,6X25 Price: Call Us
25 957010806000 BOLT, FLANGE, 8X60 Price: Call Us
26 957010808000 BOLT, FLANGE, 8X80 Price: Call Us
