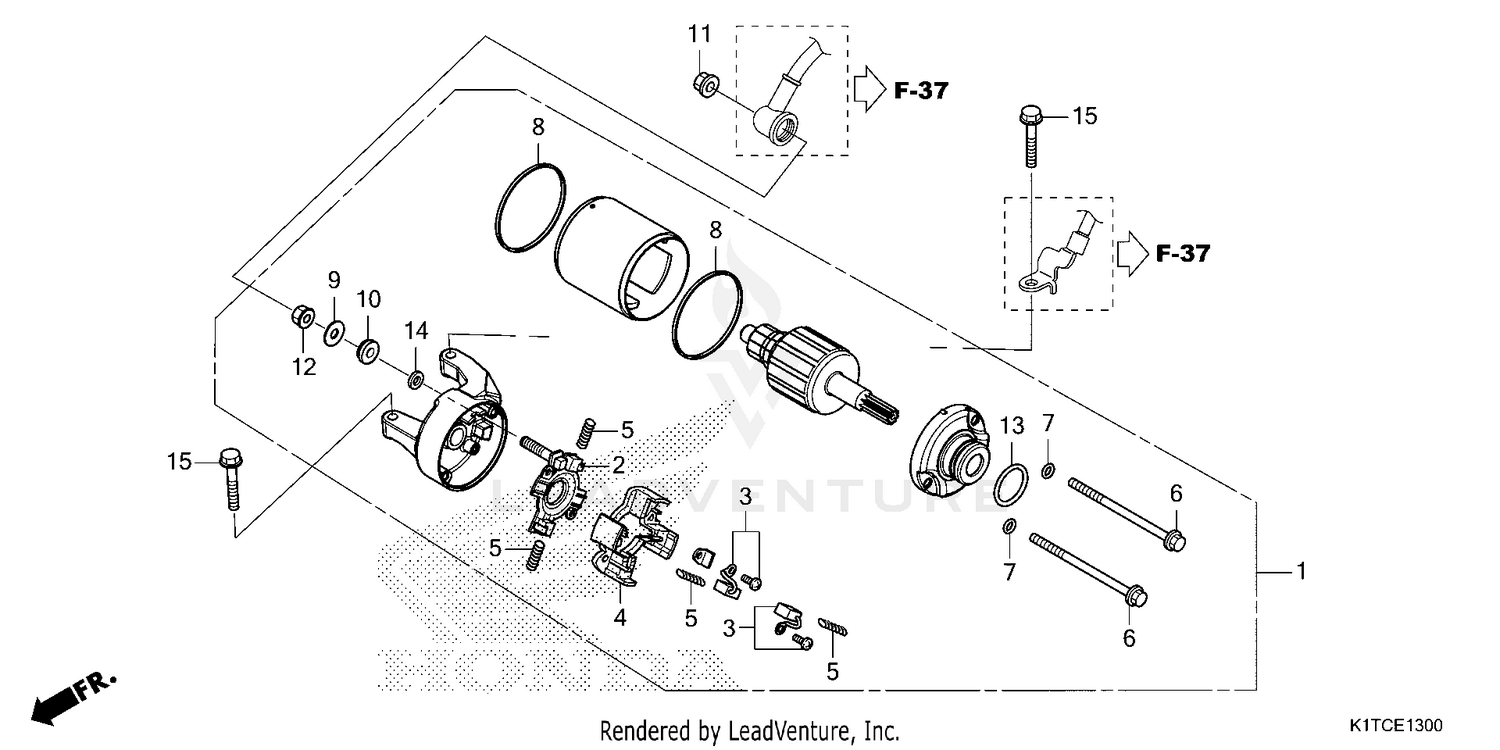

STARTER MOTOR
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 31200-K0A-DB1 | STARTER MOTOR ASSY. Price: $131.98 |
| 2 | 31201-K0Z-901 | BRUSH SET Price: $14.07 |
| 3 | 31202-K0Z-901 | BRUSH SET Price: $6.44 |
| 4 | 31203-K0Z-901 | HOLDER, BRUSH Price: $2.64 |
| 5 | 31204-K0Z-901 | SPRING, BRUSH Price: $0.42 |
| 6 | 31205-K0Z-901 | BOLT, THROUGH Price: $0.65 |
| 7 | 31206-K0Z-901 | O-RING Price: $0.15 |
| 8 | 31207-K0Z-901 | SEAL, YOKE Price: $1.67 |
| 9 | 31210-K0Z-901 | WASHER, PLAIN Price: $0.13 |
| 10 | 32112-K0Z-901 | INSULATOR, BUSH Price: $0.58 |
| 11 | 90071-KTE-D00 | NUT-WASHER (6MM) Price: $0.20 |
| 12 | 90201-K0Z-901 | NUT, FLANGE Price: $0.24 |
| 13 | 91309-K0Z-901 | O-RING Price: $0.44 |
| 14 | 91320-K0Z-901 | RING, SEAL Price: $0.33 |
