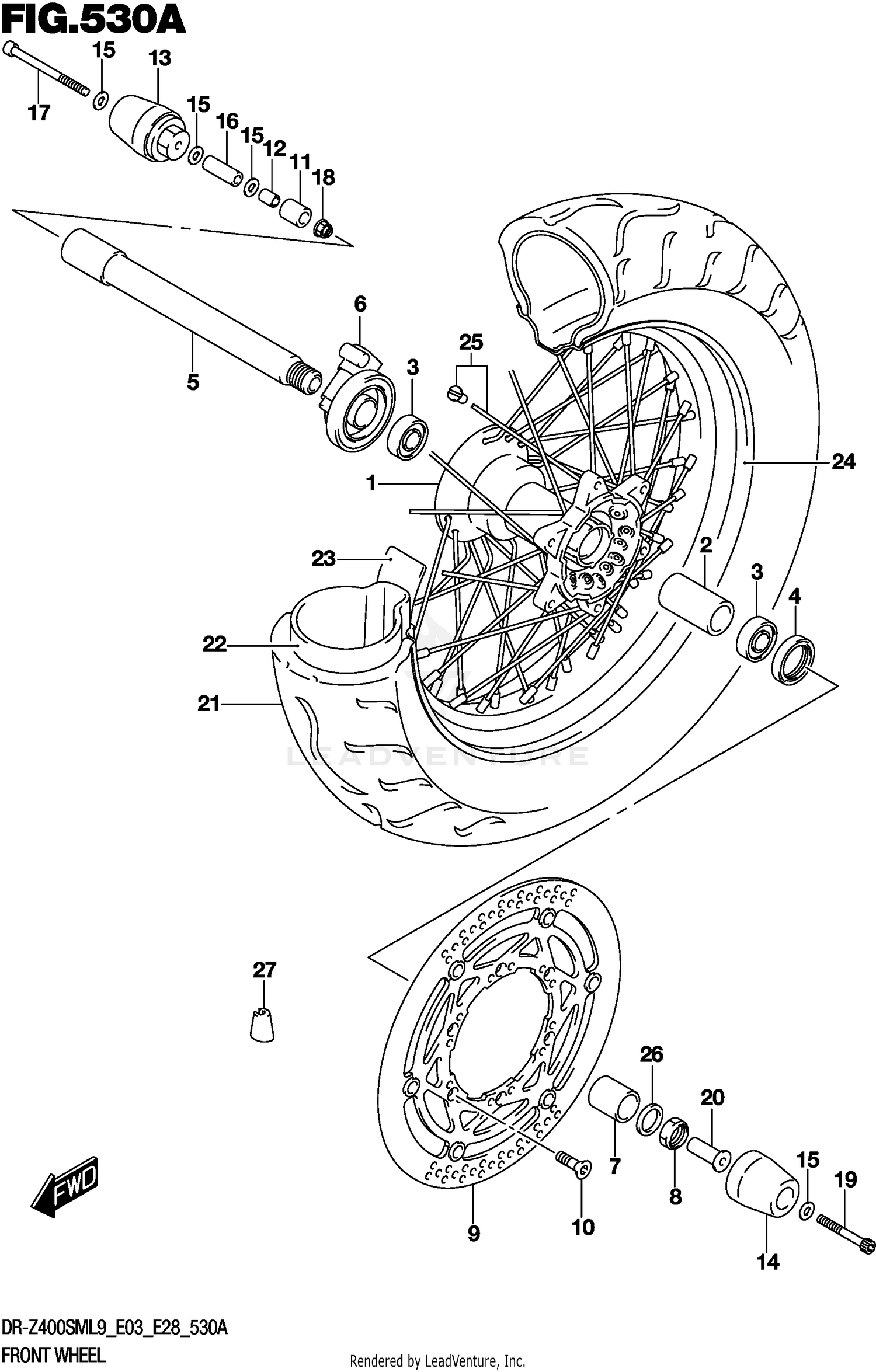

FRONT WHEEL
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 54111-29F10 | HUB FRONT WHEEL Price: $341.44 |
| 2 | 54731-36E10 | SPACER,FR HUB BEARING (20.5X2 Price: $27.82 |
| 3 | 09262-20174 | BEARING Price: $57.39 |
| 4 | 09283-25083 | SEAL,OIL (25X37X6) Price: $10.34 |
| 5 | 54711-29F10 | AXLE FR Price: $113.38 |
| 6 | 54600-29F11 | BOX ASSY SPEEDOMETER GEAR This part replaces 54600-29F10. Price: $93.40 |
| 7 | 54751-36E10 | SPACER,FR AXLE,L (L:31) Price: $22.04 |
| 8 | 09159-18018 | NUT Price: $20.98 |
| 9 | 59220-29F00 | DISC FRONT BRAKE Price: $412.15 |
| 10 | 09120-06014 | SCREW (6X18) Price: $2.94 |
| 11 | 54744-29F00 | EXPANDER FR AXLE SLIDER R Price: $6.34 |
| 12 | 09180-05048 | SPACER (5.5X8X10.5) Price: $2.48 |
| 13 | 54745-29F00 | SLIDER FR AXLE R Price: $30.03 |
| 14 | 54755-29F00 | SLIDER FR AXLE L Price: $27.53 |
| 15 | 09160-05029 | WASHER (5.5X12X0.8) Price: $1.89 |
| 16 | 09180-05060 | SPACER (5.5X9.5X26) Price: $5.89 |
| 17 | 09106-05021 | BOLT (5X65) Price: $6.80 |
| 18 | 08316-2005B | NUT Price: $3.04 |
| 19 | 07130-0540A | BOLT Price: $3.13 |
| 20 | 09159-05050 | NUT Price: $9.86 |
| 22 | 55200-29FA0 | TUBE ASSY,WHEEL INNER Price: $63.23 |
| 23 | 55261-29FA0 | PROTECTOR,WHEEL INNER TUBE Price: $6.93 |
| 25 | 55320-29F10 | SPOKE SET FRONT WHEEL Price: $131.06 |
| 26 | 09160-18034 | WASHER (18X26X2.8) Price: $3.12 |
