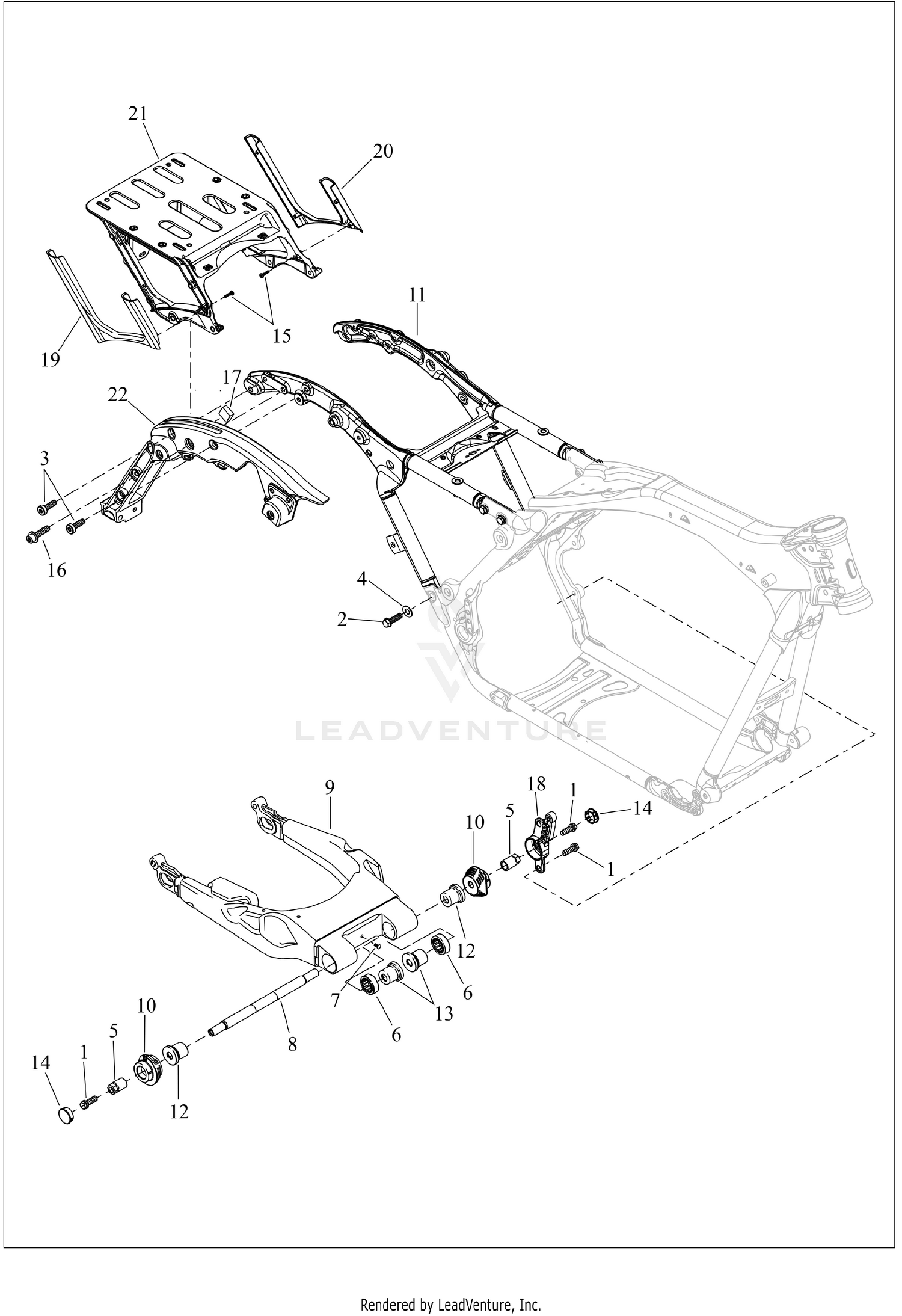

FRAME AND FORK, REAR AND TOUR-PAK SUPPORT
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3057 | SCREW,SEMS,HEX HD/LOCK Price: $1.82 |
| 2 | 3536 | SCREW,HEX HD Price: $3.22 |
| 3 | 3684 | SCREW PAN HD TAPPING TORX Price: $0.59 |
| 4 | 6532 | WASHER HARDENED Price: $1.22 |
| 6 | 9208 | BUSHING,PLAIN,X Price: $35.31 |
| 10 | 47584-09 | SWGARM ASSY SUB-CMPNT,X Price: $48.52 |
| 14 | 67875-11 | HOLE PLUG Price: $0.55 |
| 15 | 10200155 | PAN HEAD SCREW,TORX DRIVE Price: $0.55 |
| 16 | 10200217 | SCREW,SEMS, TORX Price: $1.37 |
| 17 | 11100068 | CUSHION Price: $3.56 |
