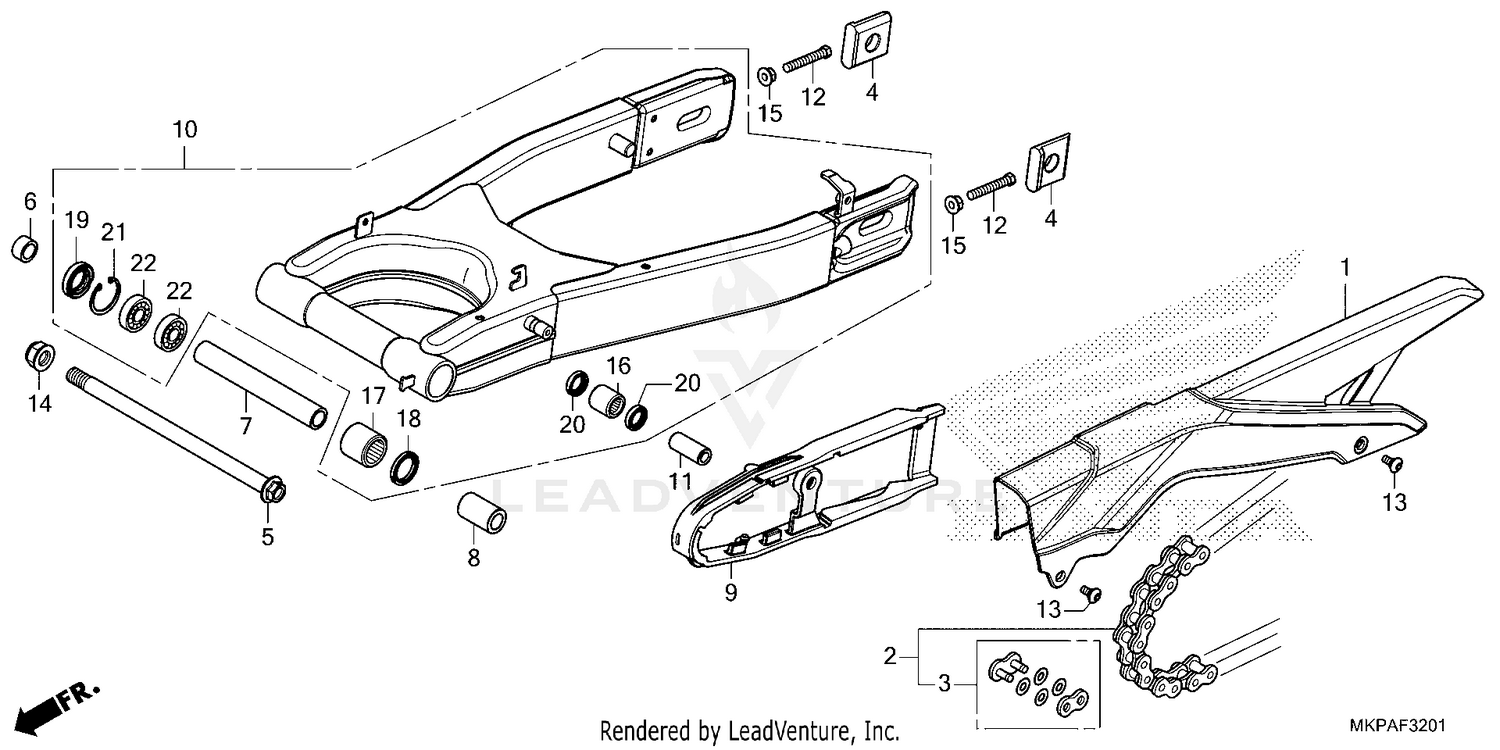

| Ref | Part Number | Description |
|---|
| 1 |
40510-MKP-DN0 |
CASE, DRIVE CHAIN Price: $25.49 |
| 2 |
40540-KYJ-902 |
CHAIN, DRIVE (DID520VF-120ZB) (DAIDO) (STANDARD LINK 108L) Price: $166.67 |
| 2 |
40540-MKP-DN2 |
CHAIN, DRIVE Price: $294.80 |
| 3 |
40545-KYJ-902 |
MASTER LINK (DAIDO) Price: $17.51 |
| 3 |
40545-MKP-DN2 |
MASTER LINK Price: $25.38 |
| 4 |
42305-MKP-J00 |
COLLAR, RR. AXLE Price: $26.55 |
| 5 |
52101-MKP-DN0 |
BOLT, SWINGARM PIVOT Price: $10.69 |
| 6 |
52105-MJ0-000 |
COLLAR B, RR. SWINGARM PIVOT Price: $6.42 |
| 7 |
52141-MKP-DN0 |
COLLAR Price: $12.85 |
| 8 |
52143-MGZ-J00 |
COLLAR, L. PIVOT DISTANCE Price: $18.33 |
| 9 |
52170-MKP-DN0 |
SLIDER, CHAIN Price: $21.13 |
| 10 |
52200-MKP-DN0 |
SWINGARM SUB, RR. Price: $322.67 |
| 11 |
52463-MGZ-J00 |
COLLAR, CUSHION CONNECTING ROD Price: $5.91 |
| 12 |
90106-MCF-D00 |
BOLT, HEX. (8X50) Price: $2.76 |
| 13 |
90127-MKN-D50 |
SCREW, SPECIAL (6X14) Price: $1.53 |
| 14 |
90305-KCJ-951 |
NUT, U (14MM) (FUJI SEIMITSU) Price: $6.71 |
| 15 |
90309-357-000 |
NUT, HEX. (10MM) Price: $4.27 |
| 16 |
91071-KV3-005 |
BEARING, NEEDLE (KOYO) Price: $30.15 |
| 17 |
91071-MT7-003 |
BEARING, NEEDLE (NTN) Price: $27.67 |
| 18 |
91202-MAL-601 |
DUST SEAL (25X33X4) Price: $8.75 |
| 19 |
91213-MB2-003 |
DUST SEAL (22X35X7) (ARAI) Price: $9.36 |
| 20 |
91262-KV3-831 |
DUST SEAL (17X24X5) (ARAI) Price: $7.78 |
| 21 |
94520-35000 |
CIRCLIP (INNER) (35MM) Price: $2.03 |
