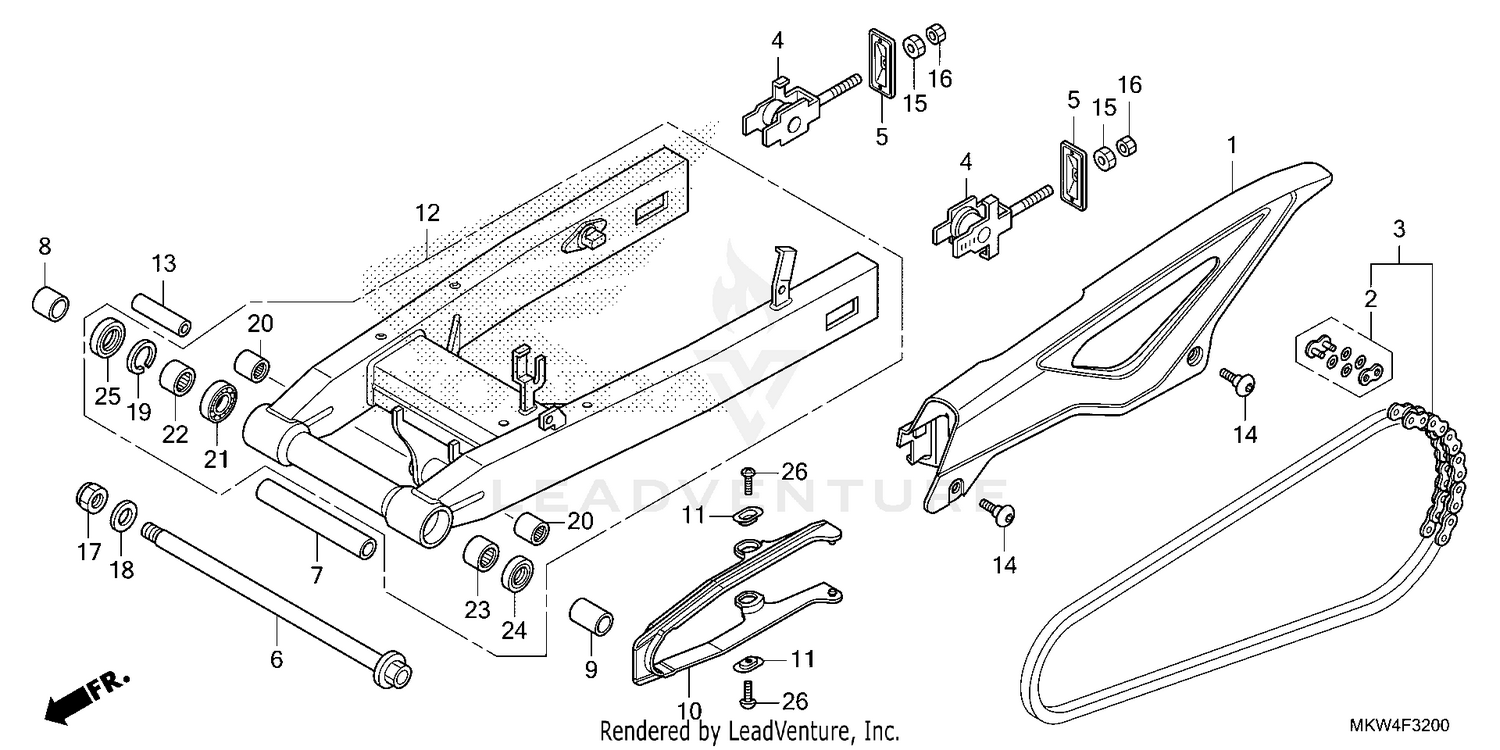

| Ref | Part Number | Description |
|---|
| 1 |
40510-MGS-D30 |
CASE, DRIVE CHAIN Price: $131.00 |
| 2 |
40531-MJF-A02 |
MASTER LINK (RK EXCEL) Price: $15.11 |
| 2 |
40545-MGS-D31 |
MASTER LINK (DAIDO) Price: $15.35 |
| 3 |
40540-MGS-D31 |
CHAIN, DRIVE (DID520V0-120ZB) (DAIDO) (STANDARD LINK 112L) (STANDARD LINK 114L) Price: $264.13 |
| 3 |
40540-MJF-A02 |
CHAIN, DRIVE (RK520KHO-120LJFZ) (RK EXCEL) (STANDARD LINK 112L) (STANDARD LINK 114L) Price: $260.18 |
| 4 |
40543-MGS-D30 |
ADJUSTER, CHAIN Price: $38.00 |
| 5 |
40546-MGS-D30 |
CAP, SWINGARM END Price: $24.93 |
| 6 |
52101-MGS-D30 |
BOLT, SWINGARM PIVOT Price: $45.13 |
| 7 |
52141-MGS-D10 |
COLLAR, PIVOT DISTANCE CENTER Price: $39.33 |
| 8 |
52142-MGS-D10 |
COLLAR, R. PIVOT DISTANCE Price: $21.29 |
| 9 |
52143-MGS-D10 |
COLLAR, L. PIVOT DISTANCE Price: $22.98 |
| 10 |
52170-MGS-D30 |
SLIDER, CHAIN Price: $51.65 |
| 11 |
52171-KR6-000 |
WASHER, CHAIN SLIDER Price: $2.95 |
| 12 |
52200-MGS-D32 |
SWINGARM SUB-ASSY., RR. Price: $1,369.58 |
| 13 |
52463-MGS-D10 |
COLLAR B, CUSHION ARM Price: $15.71 |
| 14 |
90118-MJK-N20 |
SCREW, SPECIAL (6X14) Price: $3.09 |
| 15 |
90302-MBZ-G00 |
NUT, HEX. (8MM) Price: $0.98 |
| 16 |
90303-MBZ-G00 |
NUT, HEX. (8MM) Price: $0.87 |
| 17 |
90306-MCS-G01 |
NUT, U (18MM) Price: $8.56 |
| 18 |
90401-MAS-000 |
WASHER (20X31.5X2) Price: $4.02 |
| 19 |
90651-MEW-920 |
CIRCLIP (INNER) (37) Price: $3.58 |
| 20 |
91052-MGS-D31 |
BEARING, NEEDLE (17X24X30) Price: $11.84 |
| 21 |
91054-MGS-D31 |
BEARING, RADIAL BALL (20X37X9) Price: $11.44 |
| 22 |
91055-MGS-D31 |
BEARING, NEEDLE (30X37X20) Price: $21.95 |
| 23 |
91071-MR7-003 |
BEARING, NEEDLE Price: $31.11 |
| 24 |
91202-MR7-003 |
DUST SEAL (28X37X4) Price: $7.98 |
| 25 |
91253-KZ3-861 |
DUST SEAL (30X37X4) Price: $10.51 |
