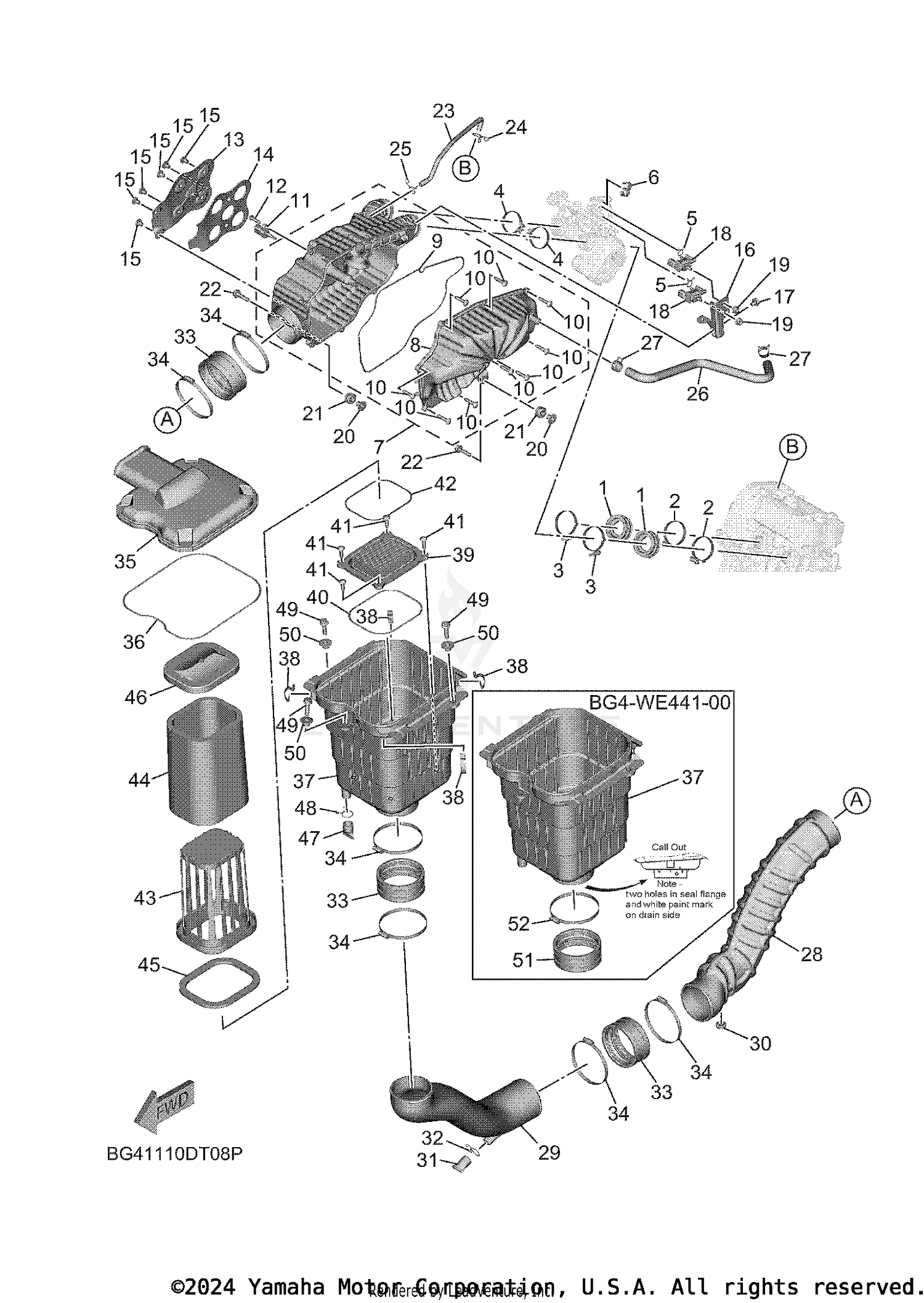

| Ref | Part Number | Description |
|---|
| 1 |
BG4-13586-00-00 |
JOINT, CARBURETOR 1 Price: $22.99 |
| 2 |
90450-56011-00 |
HOSE CLAMP ASSY Price: $15.49 |
| 3 |
90450-56013-00 |
HOSE CLAMP ASSY Price: $12.49 |
| 4 |
90450-50005-00 |
HOSE CLAMP ASSY Price: $11.49 |
| 5 |
90467-100A1-00 |
CLIP This part replaces 90467-10041-00. Price: $8.49 |
| 6 |
90464-09M31-00 |
CLAMP Price: $8.49 |
| 7 |
BG4-E4440-00-00 |
SILENCER ASSY, INTAKE Price: $133.99 |
| 8 |
BG4-E4431-00-00 |
SILENCER, INTAKE 1 Price: $12.49 |
| 9 |
BG4-E4467-00-00 |
SEAL Price: $4.65 |
| 10 |
97707-50025-00 |
SCREW, TAPPING This part replaces 97702-50025-00. Price: $9.49 |
| 11 |
8FP-85886-00-00 |
SENSOR, AIR TEMPERATURE Price: $65.99 |
| 12 |
97702-50520-00 |
SCREW, TAPPING Price: $0.45 |
| 13 |
BG4-E4477-00-00 |
PLATE Price: $12.49 |
| 14 |
BG4-E4409-00-00 |
DAMPER Price: $5.49 |
| 15 |
98980-06008-00 |
SCREW, BIND This part replaces 98902-06008-00. Price: $0.70 |
| 16 |
BG4-E4493-00-00 |
STAY 1 Price: $3.85 |
| 17 |
95812-06008-00 |
BOLT, FLANGE Price: $8.49 |
| 18 |
BG4-86120-00-00 |
SOLENOID VALVE ASSY Price: $52.99 |
| 19 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 20 |
90387-06199-00 |
COLLAR Price: $4.05 |
| 21 |
90480-12596-00 |
GROMMET Price: $11.49 |
| 22 |
95817-06025-00 |
BOLT, FLANGE This part replaces 95822-06025-00. Price: $1.75 |
| 23 |
BG4-11166-00-00 |
PIPE, BREATHER 1 Price: $18.49 |
| 24 |
90467-100A1-00 |
CLIP This part replaces 90467-10041-00. Price: $8.49 |
| 25 |
90467-12052-00 |
CLIP Price: $10.49 |
| 26 |
BG4-F1745-00-00 |
PIPE, OIL TANK BREATHER Price: $17.49 |
| 27 |
90467-22097-00 |
CLIP Price: $10.49 |
| 28 |
BG4-E4437-01-00 |
DUCT This part replaces BG4-E4437-00-00. Price: $21.99 |
| 29 |
BG4-E443A-00-00 |
DUCT Price: $18.99 |
| 30 |
90480-13567-00 |
GROMMET Price: $5.49 |
| 31 |
59V-14457-00-00 |
SEAL Price: $7.49 |
| 32 |
90467-220A1-00 |
CLIP Price: $6.49 |
| 35 |
BG4-E4412-00-00 |
CAP, CLEANER CASE 1 Price: $37.99 |
| 36 |
BG4-E4452-00-00 |
SEAL Price: $4.05 |
| 38 |
B16-E4424-00-00 |
CLIP, CAP FITTING Price: $3.70 |
| 39 |
BG4-E4461-00-00 |
ELEMENT, AIR CLEANER 2 Price: $28.99 |
| 40 |
BG4-E4462-00-00 |
SEAL Price: $3.35 |
| 41 |
90167-05078-00 |
SCREW, TAPPING This part replaces 97702-50020-00. Price: $9.49 |
| 42 |
BG4-E4457-00-00 |
SEAL Price: $3.10 |
| 43 |
BG4-E4458-00-00 |
GUIDE Price: $16.99 |
| 44 |
BG4-E4451-00-00 |
ELEMENT, AIR CLEANER Price: $80.99 |
| 45 |
BG4-E4425-00-00 |
DAMPER 1 Price: $6.49 |
| 46 |
BG4-E4422-00-00 |
CAP, CLEANER CASE 2 Price: $12.49 |
| 47 |
B16-E443E-00-00 |
PIPE, DRAIN Price: $2.45 |
| 48 |
90467-220A1-00 |
CLIP Price: $6.49 |
| 49 |
90105-06833-00 |
BOLT, FLANGE Price: $2.30 |
| 50 |
90387-071E0-00 |
COLLAR Price: $8.49 |
