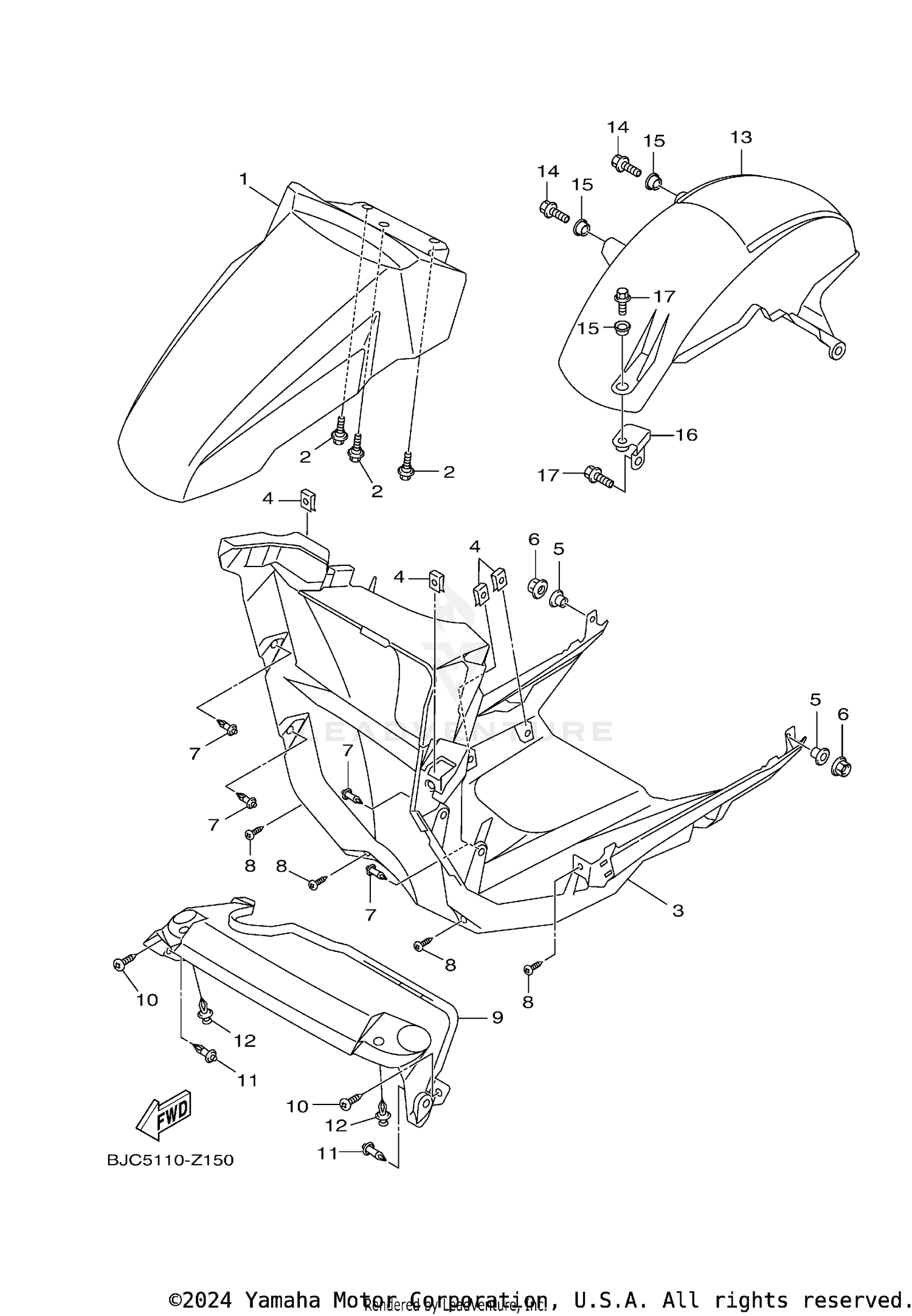

| Ref | Part Number | Description |
|---|
| 1 |
BBJ-F1511-01-00 |
FENDER, FRONT Price: $15.49 |
| 2 |
90109-06172-00 |
BOLT Price: $3.50 |
| 3 |
BBJ-F1552-01-00 |
FENDER, INNER Price: $44.99 |
| 4 |
90183-05827-00 |
NUT, SPRING Price: $1.65 |
| 5 |
90387-06868-00 |
COLLAR Price: $1.15 |
| 6 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 7 |
90269-06803-00 |
RIVET Price: $0.60 |
| 8 |
97707-50016-00 |
SCREW, TRUSS HEAD TAPPING Price: $1.85 |
| 9 |
BBJ-F1553-01-00 |
FENDER, INNER 2 Price: Call Us |
| 10 |
97707-50016-00 |
SCREW, TRUSS HEAD TAPPING Price: $1.85 |
| 11 |
90269-06803-00 |
RIVET Price: $0.60 |
| 12 |
90269-06806-00 |
RIVET Price: $2.20 |
| 13 |
B8R-F1611-01-00 |
FENDER, REAR Price: $18.49 |
| 14 |
95D07-06016-00 |
BOLT, FLANGE DEEP RECESS Price: $1.25 |
| 15 |
90387-06868-00 |
COLLAR Price: $1.15 |
| 16 |
B8R-F1613-00-00 |
STAY, FENDER 1 Price: $3.50 |
