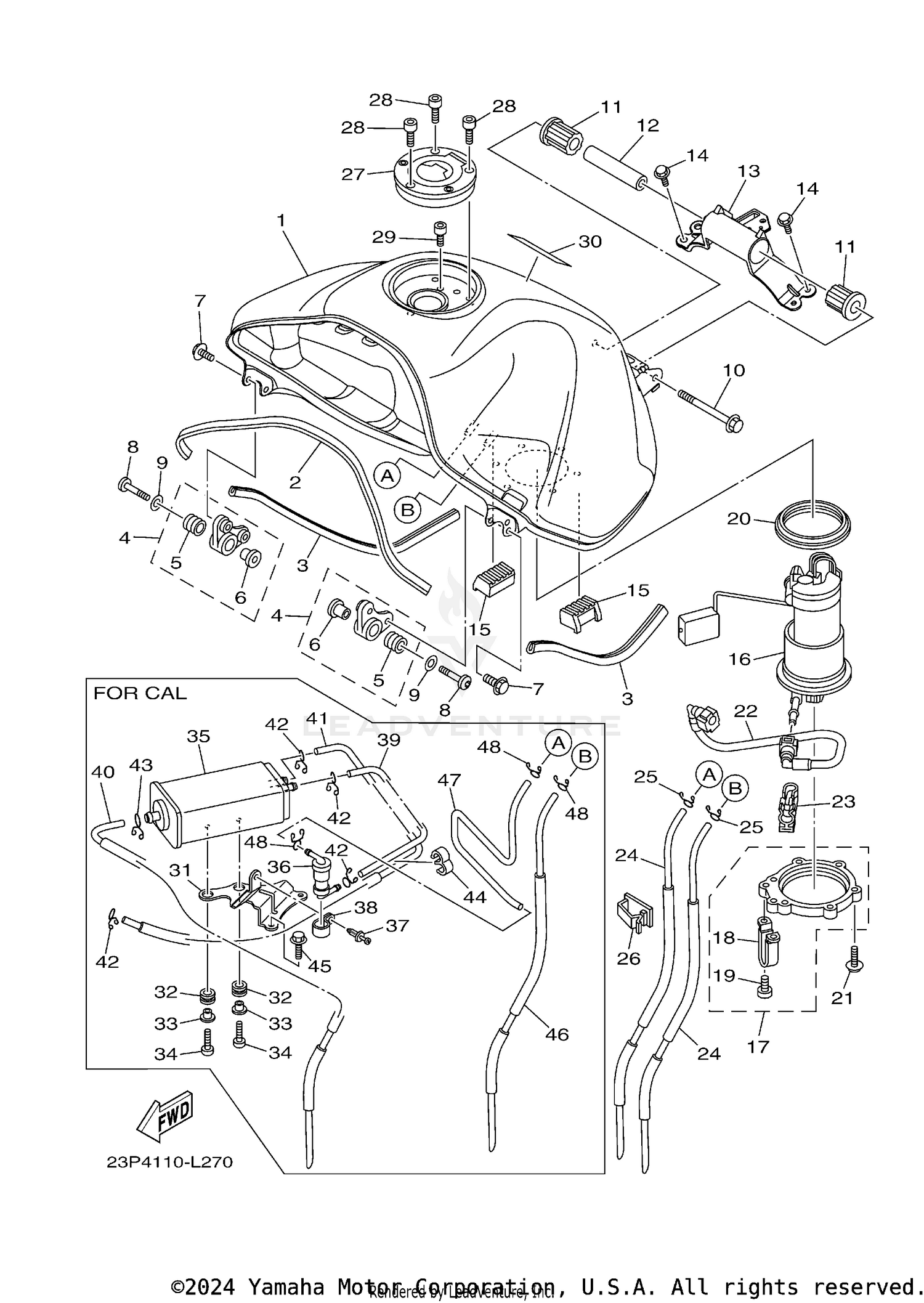

| Ref | Part Number | Description |
|---|
| 2 |
23P-24188-00-00 |
MOLD, FUEL TANK Price: $34.99 |
| 3 |
23P-24188-10-00 |
MOLD, FUEL TANK Price: $34.99 |
| 4 |
23P-24104-00-00 |
TANK BRACKET ASSY This part replaces 23P-24104-01-00. Price: $46.99 |
| 5 |
90480-18008-00 |
GROMMET Price: $4.00 |
| 6 |
90387-06266-00 |
COLLAR Price: $4.95 |
| 7 |
90119-06200-00 |
BOLT, WITH WASHER Price: $9.49 |
| 8 |
90149-06328-00 |
SCREW Price: $6.49 |
| 9 |
90201-06072-00 |
WASHER, PLATE Price: $10.49 |
| 10 |
95814-08110-00 |
BOLT, FLANGE This part replaces 95812-08110-00. Price: $8.49 |
| 11 |
23P-24183-00-00 |
DAMPER, LOCATING 3 Price: $4.40 |
| 12 |
90387-12050-00 |
COLLAR Price: $9.99 |
| 13 |
23P-2413Y-00-00 |
BRACKET, TANK FITTING Price: $74.99 |
| 14 |
95817-06020-00 |
BOLT, FLANGE This part replaces 95802-06020-00. Price: $3.50 |
| 15 |
23P-24181-00-00 |
DAMPER, LOCATING 1 Price: $11.99 |
| 16 |
23P-13907-03-00 |
FUEL PUMP COMP. This part replaces 23P-13907-01-00. Price: $641.99 |
| 17 |
23P-24105-00-00 |
TANK BRACKET ASSY 2 Price: $49.99 |
| 18 |
2D1-24192-00-00 |
BRACKET, FUEL TANK 2 Price: $13.49 |
| 19 |
98902-05008-00 |
SCREW, BIND Price: $1.85 |
| 20 |
19B-24486-01-00 |
O-RING Price: $47.99 |
| 21 |
90110-05028-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 22 |
23P-13971-01-00 |
PIPE, FUEL 1 Price: $65.99 |
| 23 |
90464-16005-00 |
CLAMP Price: $13.49 |
| 26 |
90464-13012-00 |
CLAMP Price: $5.49 |
| 27 |
39P-24602-00-00 |
CAP ASSY Price: $278.99 |
| 28 |
90110-05112-00 |
BOLT, HEXAGON SOCKET HEAD Price: $10.49 |
| 29 |
91312-05010-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 30 |
29P-2816R-01-00 |
LABEL, WARNING GENER This part replaces 29P-2816R-00-00. Price: $3.65 |
