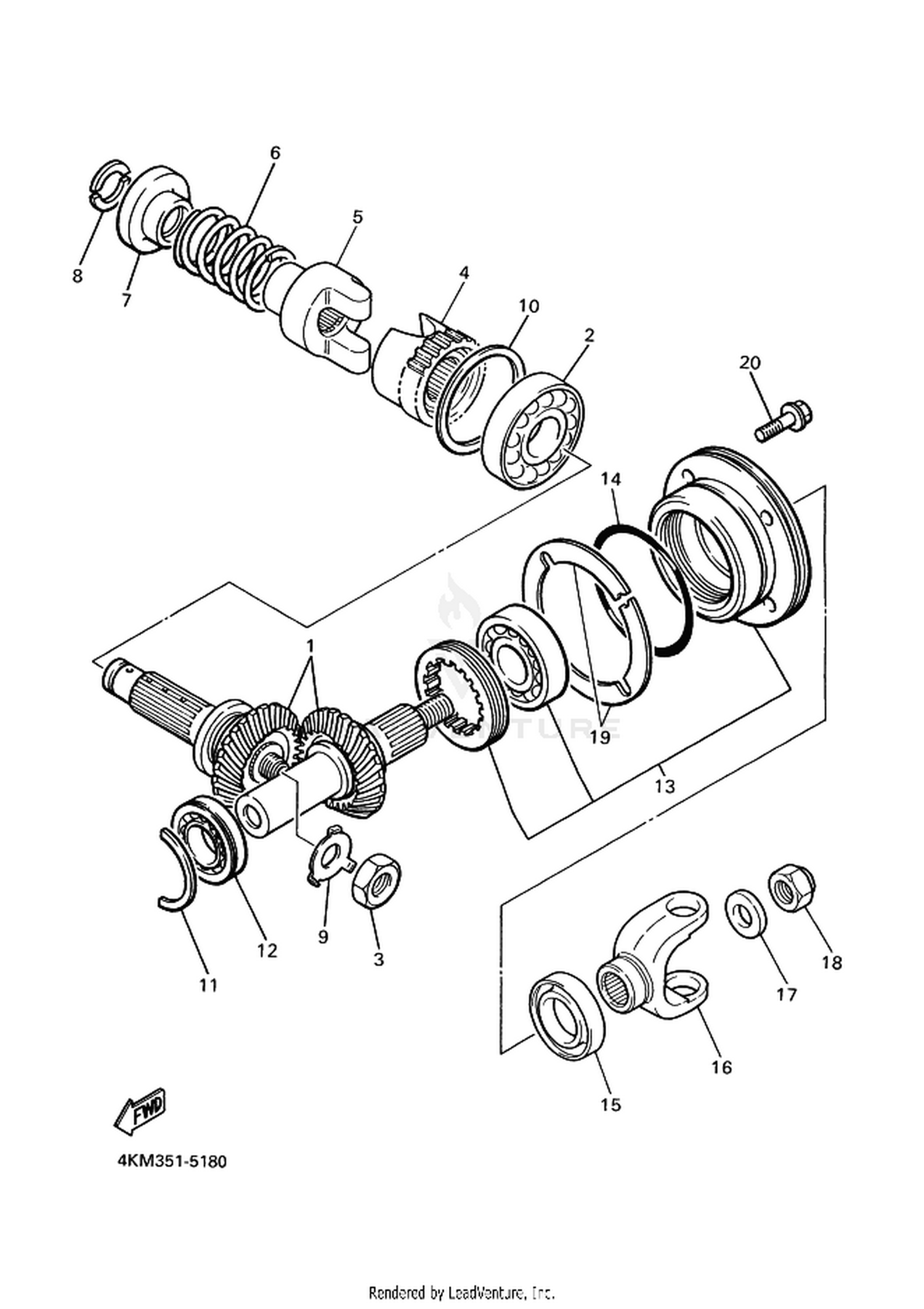

18 MIDDLE DRIVE GEAR
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 4KM-W1751-00 | MIDDLE GEAR COMP. Price: Call Us |
| 2 | 93306-20709 | BEARING Price: Call Us |
| 3 | 90179-18360 | NUT Price: Call Us |
| 4 | 31A-17526-01 | CAM, DRIVE Price: Call Us |
| 5 | 4KM-17527-00 | CAM, DRIVEN Price: Call Us |
| 6 | 90501-70762 | SPRING, COMPRESSION Price: Call Us |
| 7 | 4H7-17524-00 | HOLDER Price: Call Us |
| 8 | 3H5-17529-00 | WASHER, THRUST Price: Call Us |
| 9 | 90215-23265 | WASHER, LOCK Price: Call Us |
| 11 | 93440-45144 | CIRCLIP Price: Call Us |
| 12 | 93306-00519 | BEARING Price: Call Us |
| 13 | 31A-W1752-00 | HOUSHING COMP. Price: Call Us |
| 14 | 93210-71360 | O-RING Price: Call Us |
| 15 | 93101-35097 | OIL SEAL Price: Call Us |
| 16 | 4KM-17556-00 | YOKE, JOINT Price: Call Us |
| 17 | 90201-14633 | WASHER, PLATE Price: Call Us |
| 18 | 90185-14070 | NUT, SELF-LOCKING Price: Call Us |
