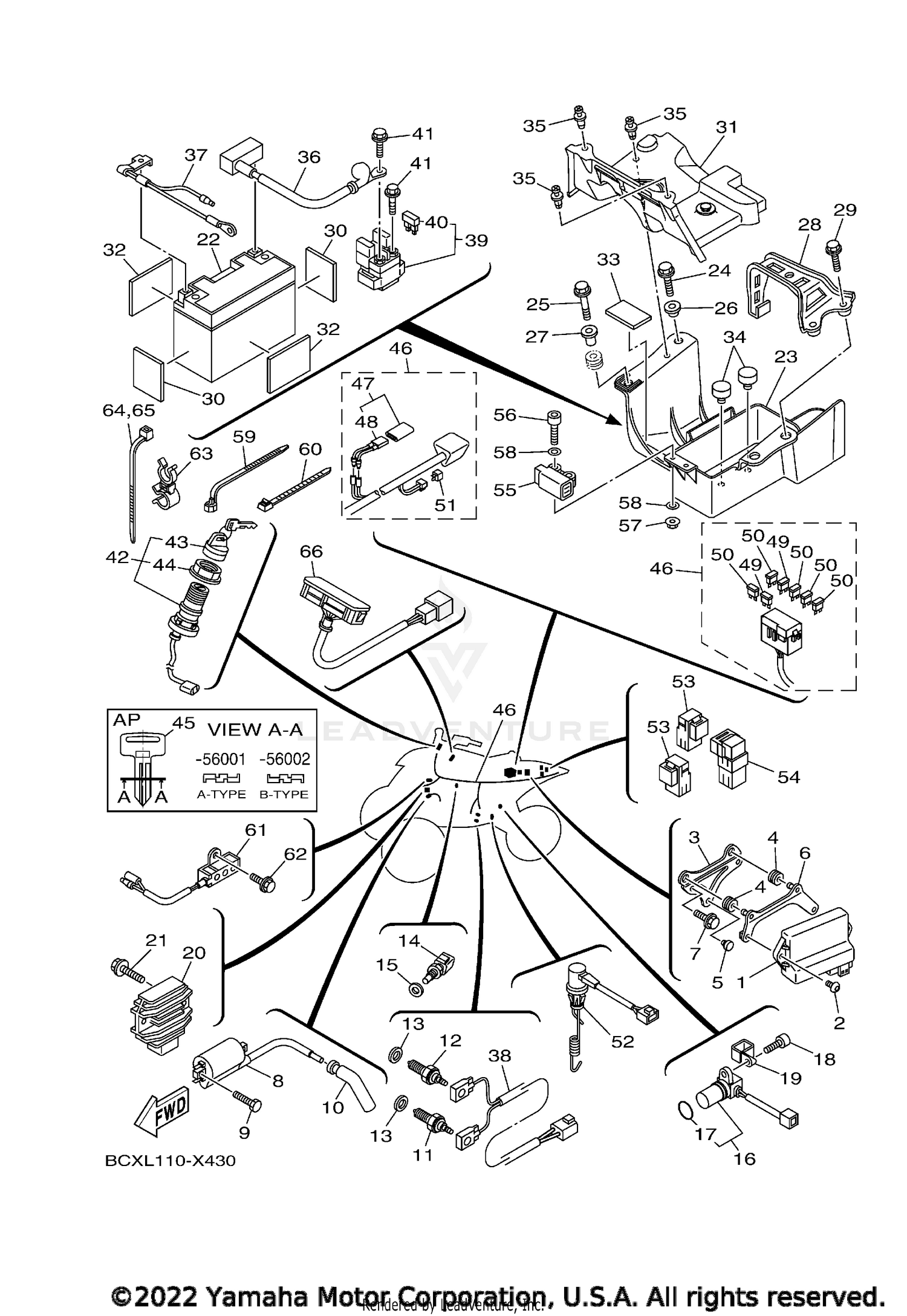

| Ref | Part Number | Description |
|---|
| 1 |
2LS-8591A-10-00 |
ENGINE CONTROL UNIT Price: $770.99 |
| 2 |
92012-06010-00 |
BOLT, BUTTON HEAD Price: $4.65 |
| 3 |
2LS-F1274-00-00 |
BRACKET, C.D.I. UNIT Price: $4.45 |
| 4 |
90480-11224-00 |
GROMMET Price: $3.70 |
| 5 |
90338-07007-00 |
PLUG Price: $4.00 |
| 6 |
2LS-2830X-00-00 |
BRKT., CONTROL UNIT Price: $16.49 |
| 7 |
95817-06016-00 |
BOLT, FLANGE This part replaces 95812-06016-00. Price: $1.95 |
| 8 |
3TB-82310-01-00 |
IGNITION COIL ASSY Price: $77.99 |
| 9 |
97027-05020-00 |
BOLT This part replaces 97002-05020-00. Price: $3.55 |
| 10 |
5VK-82370-00-00 |
PLUG CAP ASSY Price: $68.99 |
| 11 |
5LP-82540-01-00 |
NEUTRAL SWITCH ASSY Price: $41.99 |
| 12 |
3GB-82540-01-00 |
NEUTRAL SWITCH ASSY Price: $63.99 |
| 13 |
90430-10148-00 |
GASKET Price: $5.99 |
| 14 |
5YP-85790-00-00 |
THERMOSENSOR ASSY Price: $70.99 |
| 15 |
90430-12202-00 |
GASKET Price: $9.49 |
| 16 |
1S3-83755-02-00 |
SENSOR, SPEED Price: $137.99 |
| 17 |
4D9-81168-00-00 |
O-RING Price: $7.49 |
| 18 |
91312-06016-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 19 |
90461-10004-00 |
CLAMP Price: $8.49 |
| 20 |
5BN-81960-00-00 |
RECTIFIER & REGULATOR ASSY Price: $223.99 |
| 21 |
95D32-06025-00 |
BOLT, FLANGE DEEP RECESS Price: $1.15 |
| 22 |
GT9-B4000-00-00 |
GT9B4 GS BATTERY - Price: $110.99 |
| 23 |
1PE-H212B-00-00 |
BOX, BATTERY 1 Price: $46.99 |
| 24 |
90105-06084-00 |
BOLT, FLANGE Price: $4.95 |
| 25 |
95D02-06030-00 |
BOLT, FLANGE DEEP Price: $0.85 |
| 26 |
90387-06153-00 |
COLLAR Price: $8.49 |
| 27 |
90387-06158-00 |
COLLAR This part replaces 90387-063E6-00. Price: $9.49 |
| 28 |
1PE-H2128-00-00 |
BRACKET, BATTERY Price: $28.99 |
| 29 |
95D02-06020-00 |
BOLT, FLANGE DEEP RECESS Price: $0.55 |
| 30 |
1S3-82123-00-00 |
SEAT, BATTERY Price: $3.90 |
| 31 |
1PE-H2129-00-00 |
COVER, BATTERY Price: $33.99 |
| 32 |
4HC-27415-00-00 |
PLATE, FOOTREST Price: $7.49 |
| 33 |
22F-2139X-00-00 |
DAMPER Price: $8.49 |
| 34 |
5TG-82121-10-00 |
PAD, BATTERY Price: $5.00 |
| 35 |
90269-06002-00 |
RIVET Price: $9.49 |
| 36 |
1PE-H2115-00-00 |
WIRE, PLUS LEAD Price: $23.99 |
| 37 |
1PE-H2116-00-00 |
WIRE, MINUS LEAD Price: $23.99 |
| 38 |
1S3-82541-00-00 |
WIRE, LEAD Price: $30.99 |
| 39 |
5UG-81940-00-00 |
STARTER RELAY ASSY (2768112-A) Price: $103.99 |
| 40 |
1AE-82151-00-00 |
FUSE (30A-BL) Price: $8.49 |
| 41 |
95022-06008-00 |
BOLT, FLANGE Price: $9.49 |
| 42 |
4SH-82510-01-00 |
MAIN SWITCH ASSY Price: $68.99 |
| 43 |
3HN-82579-00-00 |
CAP, KEY Price: $15.49 |
| 44 |
3HN-82569-00-00 |
NUT, MAIN SWITCH Price: $5.99 |
| 46 |
2LS-82590-10-00 |
WIRE HARNESS ASSY Price: $665.99 |
| 47 |
3D5-82180-00-00 |
CIRCUIT BREAKER ASSY Price: $26.99 |
| 48 |
3D5-82560-00-00 |
THERMO SWITCH ASSY Price: $41.99 |
| 49 |
5JJ-82151-20-00 |
FUSE (20A-BL) Price: $8.49 |
| 50 |
67F-82151-40-00 |
FUSE (10A) This part replaces 5JJ-82151-30-00. Price: $7.10 |
| 51 |
3WP-81980-00-00 |
DIODE ASSY Price: $24.99 |
| 52 |
1S3-82530-11-00 |
STOP SWITCH ASSY This part replaces 1S3-82530-10-00. Price: $40.99 |
| 53 |
1TP-81950-00-00 |
RELAY ASSY (1TP-00) Price: $16.49 |
| 54 |
5DM-81950-01-00 |
RELAY ASSY (G8HN-1C4T-DJ-Y52) Price: $31.99 |
| 55 |
5PS-82576-02-00 |
SENSOR, LEAN ANGLE This part replaces 5PS-82576-01-00. Price: $96.99 |
| 56 |
91312-04025-00 |
BOLT, HEXAGON SOCKET HEAD Price: $1.95 |
| 57 |
95707-04500-00 |
NUT, FLANGE This part replaces 95702-04500-00. Price: $9.49 |
| 58 |
90201-04030-00 |
WASHER, PLATE Price: $2.40 |
| 59 |
25G-83936-01-00 |
BAND, SWITCH CORD This part replaces 90464-12045-00. Price: $5.49 |
| 60 |
90465-13M11-00 |
CLAMP Price: $8.49 |
| 61 |
1S3-85370-00-00 |
RESISTOR ASSY Price: $105.99 |
| 62 |
95D32-06010-00 |
BOLT, FLANGE DEEP RECESS Price: $0.80 |
| 63 |
90464-15011-00 |
CLAMP Price: $5.50 |
| 64 |
90465-13M11-00 |
CLAMP Price: $8.49 |
| 65 |
90464-40825-00 |
CLAMP Price: $3.05 |
