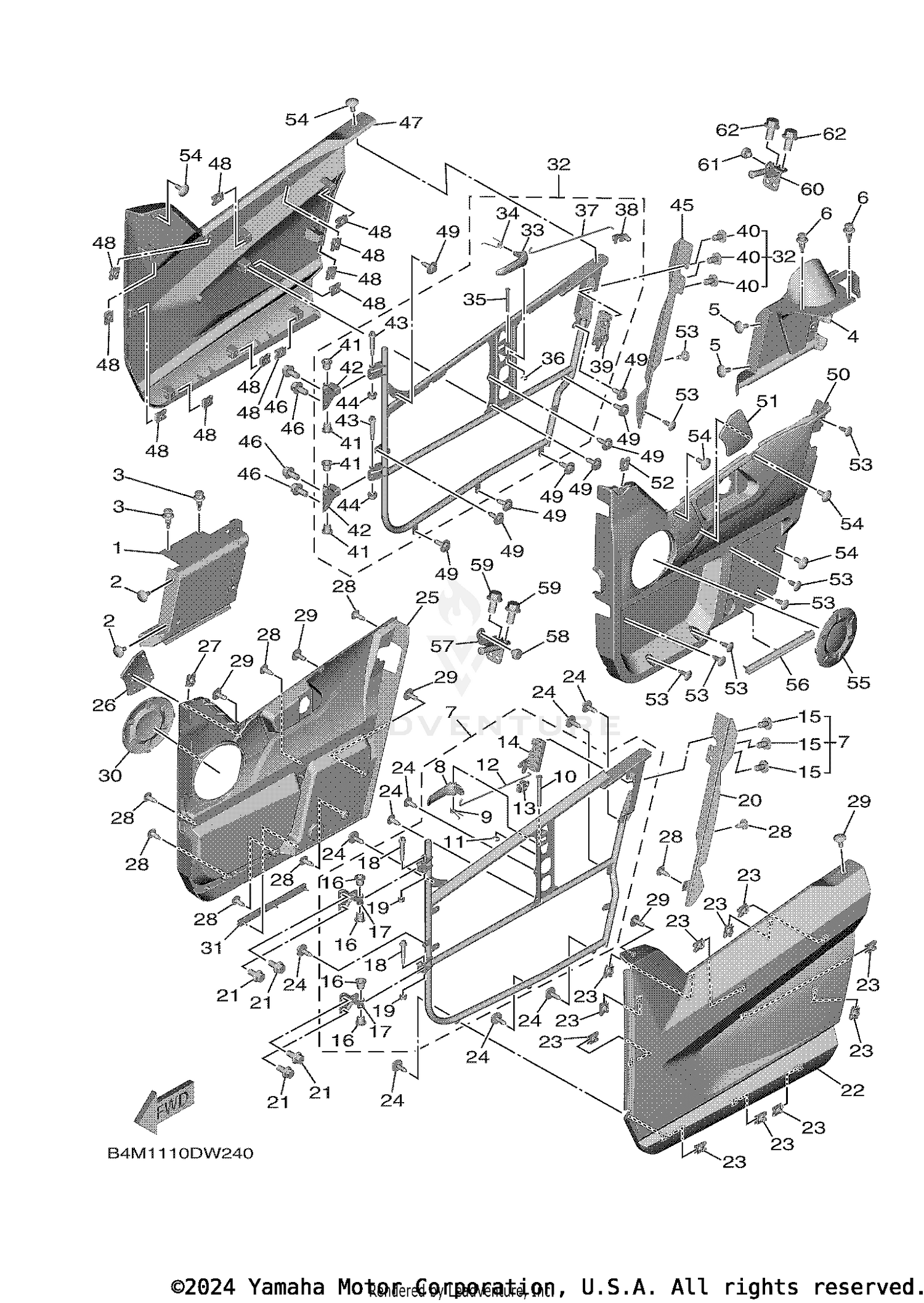

| Ref | Part Number | Description |
|---|
| 1 |
B4J-F1721-01-00 |
COVER, SIDE 2 This part replaces B4J-F1721-00-00. Price: $118.99 |
| 2 |
90110-06090-00 |
BOLT, HEXAGON SOCKET HEAD Price: $5.49 |
| 3 |
90269-07805-00 |
RIVET Price: $1.75 |
| 4 |
B4J-F1731-00-00 |
COVER, SIDE 3 Price: $23.99 |
| 5 |
90110-06090-00 |
BOLT, HEXAGON SOCKET HEAD Price: $5.49 |
| 6 |
90269-07805-00 |
RIVET Price: $1.75 |
| 7 |
B4J-K8504-01-00 |
FF. DOOR COMP. LH Price: $238.99 |
| 8 |
2HC-F17N1-00-00 |
LEVER, LATCH 1 Price: $8.49 |
| 9 |
2HC-F1742-00-00 |
SPRING Price: $3.20 |
| 10 |
90249-05801-00 |
PIN Price: $2.55 |
| 11 |
99080-04600-00 |
CLIP This part replaces 99002-04600-00. Price: $1.99 |
| 12 |
B4J-F7247-00-00 |
ROD 1 Price: $4.55 |
| 15 |
90149-08805-00 |
SCREW Price: $1.20 |
| 16 |
90381-08001-00 |
BUSH, SOLID Price: $6.49 |
| 17 |
B4J-F1796-01-00 |
HINGE Price: $4.50 |
| 18 |
90109-068C9-00 |
BOLT Price: $1.15 |
| 19 |
95604-06200-00 |
NUT, U FLANGE This part replaces 95602-06200-00. Price: $2.95 |
| 20 |
B4J-F191B-00-00 |
PLATE 1 Price: $23.99 |
| 21 |
95817-08016-00 |
BOLT,FLANGE (JN5) This part replaces 95812-08016-00. Price: $5.49 |
| 22 |
B4J-K817H-40-00 |
TRIM, SIDE PANEL 1 Price: $188.99 |
| 23 |
90183-062A1-00 |
NUT, SPRING Price: $2.20 |
| 24 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
| 25 |
B4J-K8557-00-00 |
PNL., DOOR FR. LH Price: $78.99 |
| 26 |
B4J-K811V-01-00 |
PROTECTOR 1 Price: $8.49 |
| 27 |
90183-062A1-00 |
NUT, SPRING Price: $2.20 |
| 28 |
90269-05073-00 |
RIVET Price: $2.70 |
| 29 |
90110-06090-00 |
BOLT, HEXAGON SOCKET HEAD Price: $5.49 |
| 30 |
B4J-F171J-00-00 |
LINING, SIDE COVER Price: $6.49 |
| 31 |
B4J-F1735-00-00 |
SEAL 2 Price: $8.49 |
| 32 |
B4J-K8505-01-00 |
FF. DOOR COMP. RH Price: $238.99 |
| 33 |
2HC-F17N1-00-00 |
LEVER, LATCH 1 Price: $8.49 |
| 34 |
2HC-F1742-00-00 |
SPRING Price: $3.20 |
| 35 |
90249-05801-00 |
PIN Price: $2.55 |
| 36 |
99080-04600-00 |
CLIP This part replaces 99002-04600-00. Price: $1.99 |
| 37 |
B4J-F7248-00-00 |
ROD 2 Price: $5.49 |
| 40 |
90149-08805-00 |
SCREW Price: $1.20 |
| 41 |
90381-08001-00 |
BUSH, SOLID Price: $6.49 |
| 42 |
B4J-F1796-01-00 |
HINGE Price: $4.50 |
| 43 |
90109-068C9-00 |
BOLT Price: $1.15 |
| 44 |
95604-06200-00 |
NUT, U FLANGE This part replaces 95602-06200-00. Price: $2.95 |
| 45 |
B4J-F191C-00-00 |
PLATE 2 Price: $16.49 |
| 46 |
95817-08016-00 |
BOLT,FLANGE (JN5) This part replaces 95812-08016-00. Price: $5.49 |
| 47 |
B4J-K817J-40-00 |
TRIM, SIDE PANEL 2 Price: $188.99 |
| 48 |
90183-062A1-00 |
NUT, SPRING Price: $2.20 |
| 49 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
| 50 |
B4J-K8558-00-00 |
PNL., DOOR FR. RH Price: $78.99 |
| 51 |
B4J-K811V-01-00 |
PROTECTOR 1 Price: $8.49 |
| 52 |
90183-062A1-00 |
NUT, SPRING Price: $2.20 |
| 53 |
90269-05073-00 |
RIVET Price: $2.70 |
| 54 |
90110-06090-00 |
BOLT, HEXAGON SOCKET HEAD Price: $5.49 |
| 55 |
B4J-F171J-00-00 |
LINING, SIDE COVER Price: $6.49 |
| 56 |
B4J-F1735-00-00 |
SEAL 2 Price: $8.49 |
| 57 |
B4J-F1331-01-00 |
HOOK, SIDE COVER 1 Price: $15.49 |
| 58 |
90338-10801-00 |
PLUG Price: $1.20 |
| 59 |
95817-08016-00 |
BOLT,FLANGE (JN5) This part replaces 95812-08016-00. Price: $5.49 |
| 60 |
B4J-F1332-01-00 |
HOOK, SIDE COVER 2 Price: $11.49 |
| 61 |
90338-10801-00 |
PLUG Price: $1.20 |
