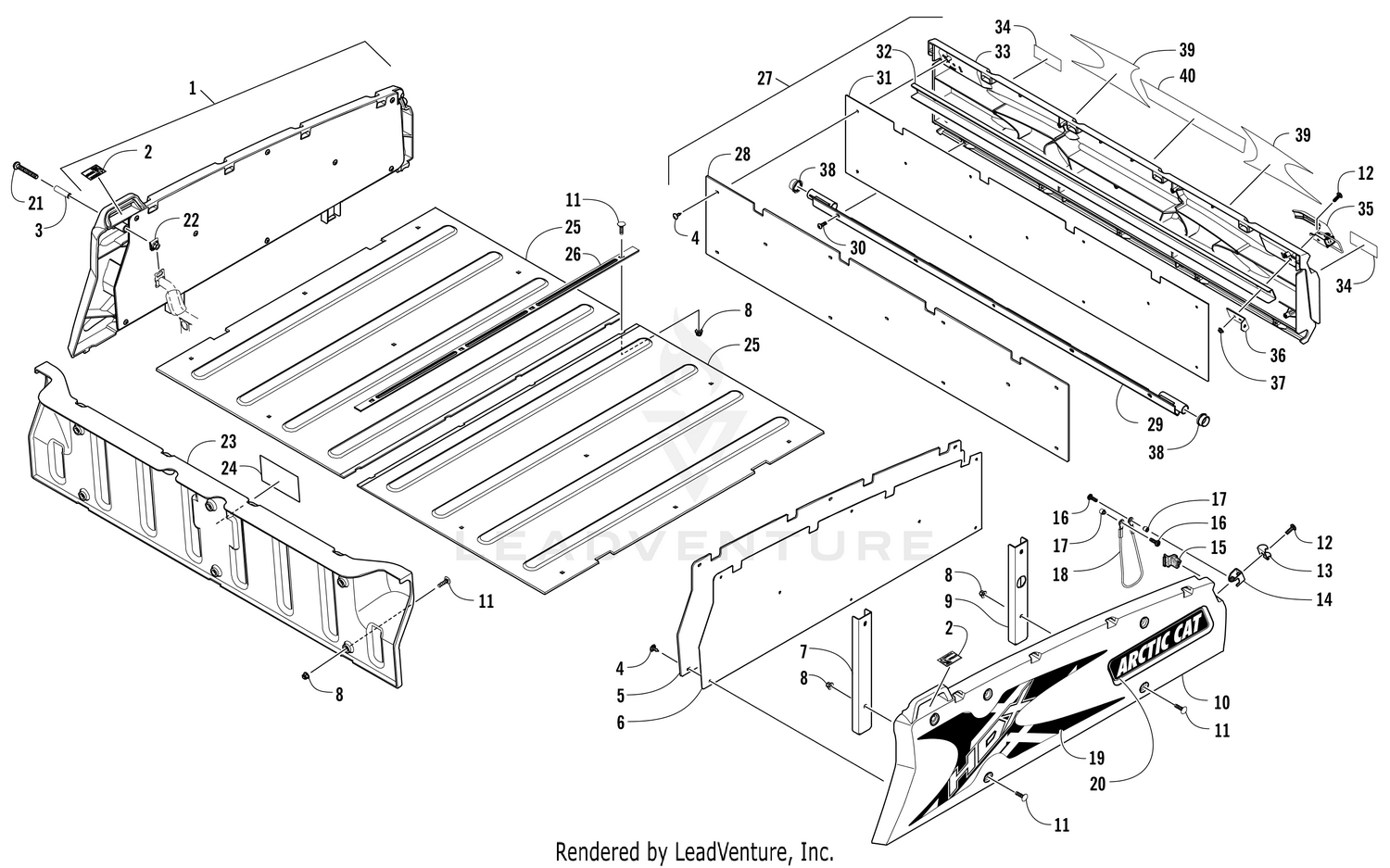

CARGO BOX AND TAILGATE ASSEMBLY [301767]

CARGO BOX AND TAILGATE ASSEMBLY [301767]

Parts (42)

RefPart NumberDescription
2 4411-882 Decal, Warning - Pinch Point Price: $3.46
3 2416-368 Spacer Price: $6.43
4 1423-011 SCREW,TSTRH SELF TAP#10 X 3/4 Price: $1.20
5 7506-728 Panel, Side - Inner Price: $145.95
6 2416-647 Pad, Foam Price: $21.79
7 4506-154 Brace, Support - Rear Price: $54.95
8 8424-802 NUT,HEX-FLG M8X1.25 CL8 Z&Y Price: $0.59
9 4506-153 Brace, Support - Front Price: $50.71
10 2416-392 Side, Cargo Box - Right Price: $134.95
10 2416-393 Side, Cargo Box - Left Price: $134.95
11 0423-623 BOLT,CRG-M8-1.25X30-BLK Price: $1.80
12 1423-038 Screw, Machine Price: $1.56
13 2516-710 Bracket, Latch Price: $18.52
14 2416-379 Bracket, Retaining - Cable Price: $18.52
15 2416-390 Insert, Panel - Right Price: $2.98
15 2416-391 Insert, Panel - Left Price: $2.98
16 8470-520 Screw, Machine Price: $0.48
17 1423-009 SPACER, TAILGATE CABLE Price: $4.71
18 0487-080 Cable, Tailgate Price: $20.38
19 5411-694 Decal, Side Panel - Right - Red Price: $48.95
19 5411-695 Decal, Side Panel - Left - Red Price: $48.95
20 2411-208 Decal, "Arctic Cat" - Right Price: $20.43
20 2411-209 Decal, "Arctic Cat" - Left Price: $20.43
21 1423-010 SCREW,TSPNH M10X1.25X70 4037A RIE Price: $12.51
22 2416-378 Clip, U-Nut Price: $20.38
23 4406-588 Panel, Front Price: $145.95
24 4411-969 Decal, Warning - Cargo Box Price: $79.95
25 2416-396 Panel, Lower Price: $181.95
26 2516-871 Bracket, Retaining - Lower Panel Price: $37.75
28 4506-526 Panel, Tailgate - Inner Price: $136.03
29 4506-626 Shaft, Pivot - Tailgate Price: $129.95
30 1423-083 SCREW,TSPH 1/4-10 X 1-1/4 PLASTITE Price: $0.69
31 2416-648 Pad, Foam Price: $20.38
32 2416-652 SUPPORT, TAILGATE Price: $74.95
33 2416-395 Panel, Tailgate - Outer Price: $145.95
34 2411-182 Decal, Reflector - Red Price: $6.57
35 2516-729 Latch, Tailgate Price: $64.95
36 2416-370 Bracket, Support - Latch Price: $21.96
37 8424-602 NUT,HEX-FLG M6X1.0 CL8 Z&Y Price: $0.35
38 2416-363 Bushing Price: $7.38
39 5411-494 Decal, Tailgate - Right Price: $15.66
39 5411-495 Decal, Tailgate - Left Price: $15.66
