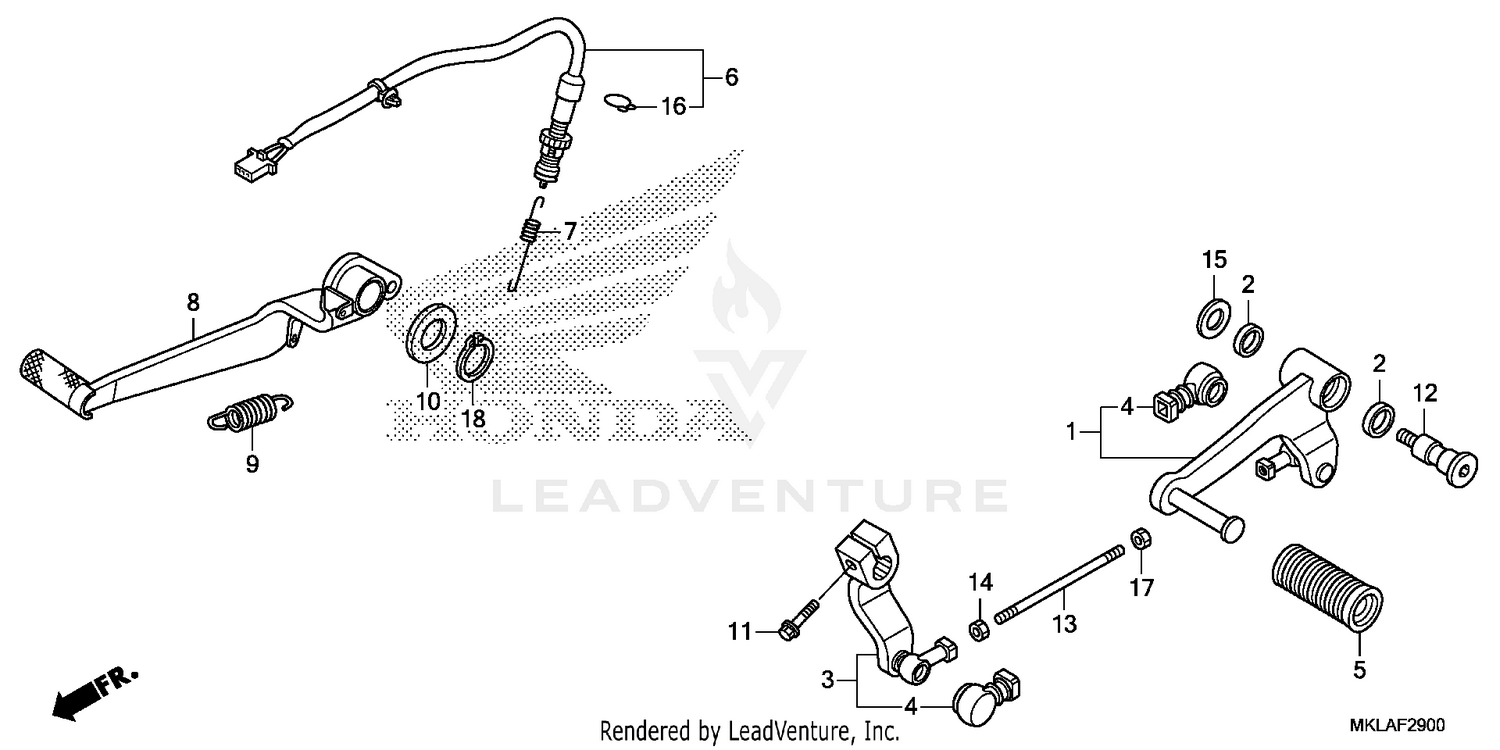

| Ref | Part Number | Description |
|---|
| 1 |
24705-MGS-305 |
PEDAL, GEARSHIFT (COO) This part replaces 24705-MGS-D30. Price: $149.36 |
| 2 |
24706-MK3-770 |
RUBBER, DUST SEAL Price: $5.62 |
| 3 |
24710-MGS-D30 |
ARM, GEARSHIFT Price: $78.60 |
| 4 |
24724-MBW-D21 |
COVER, DUST Price: $8.76 |
| 5 |
24781-KR3-770 |
RUBBER, GEARSHIFT PEDAL Price: $4.25 |
| 6 |
35350-MGS-D32 |
SWITCH ASSY., RR. STOP Price: $31.33 |
| 7 |
35357-MGS-D30 |
SPRING, STOP SWITCH Price: $5.20 |
| 8 |
46500-MGS-305 |
PEDAL, BRAKE (COO) This part replaces 46500-MGS-D30. Price: $125.73 |
| 9 |
46511-MV9-000 |
SPRING, BRAKE PEDAL Price: $11.35 |
| 10 |
50715-KE8-000 |
PLATE, PILLION STEP SIDE Price: $5.27 |
| 11 |
90010-ML0-720 |
BOLT, FLANGE (6X20) Price: $3.62 |
| 12 |
90115-KAF-000 |
BOLT, CHANGE PIVOT Price: $23.93 |
| 13 |
90165-MGS-D30 |
BOLT A, TIE ROD Price: $7.05 |
| 14 |
90201-KV3-700 |
NUT B, TIE ROD (LEFT HAND THREAD) Price: $2.64 |
| 15 |
90514-921-000 |
WASHER (8MM) (Honda Code 0285189) Price: $1.36 |
| 16 |
90601-KAF-003 |
CLIP, SWITCH COVER Price: $3.05 |
| 17 |
94002-06020-0S |
NUT, HEX. (6MM) Price: $1.25 |
