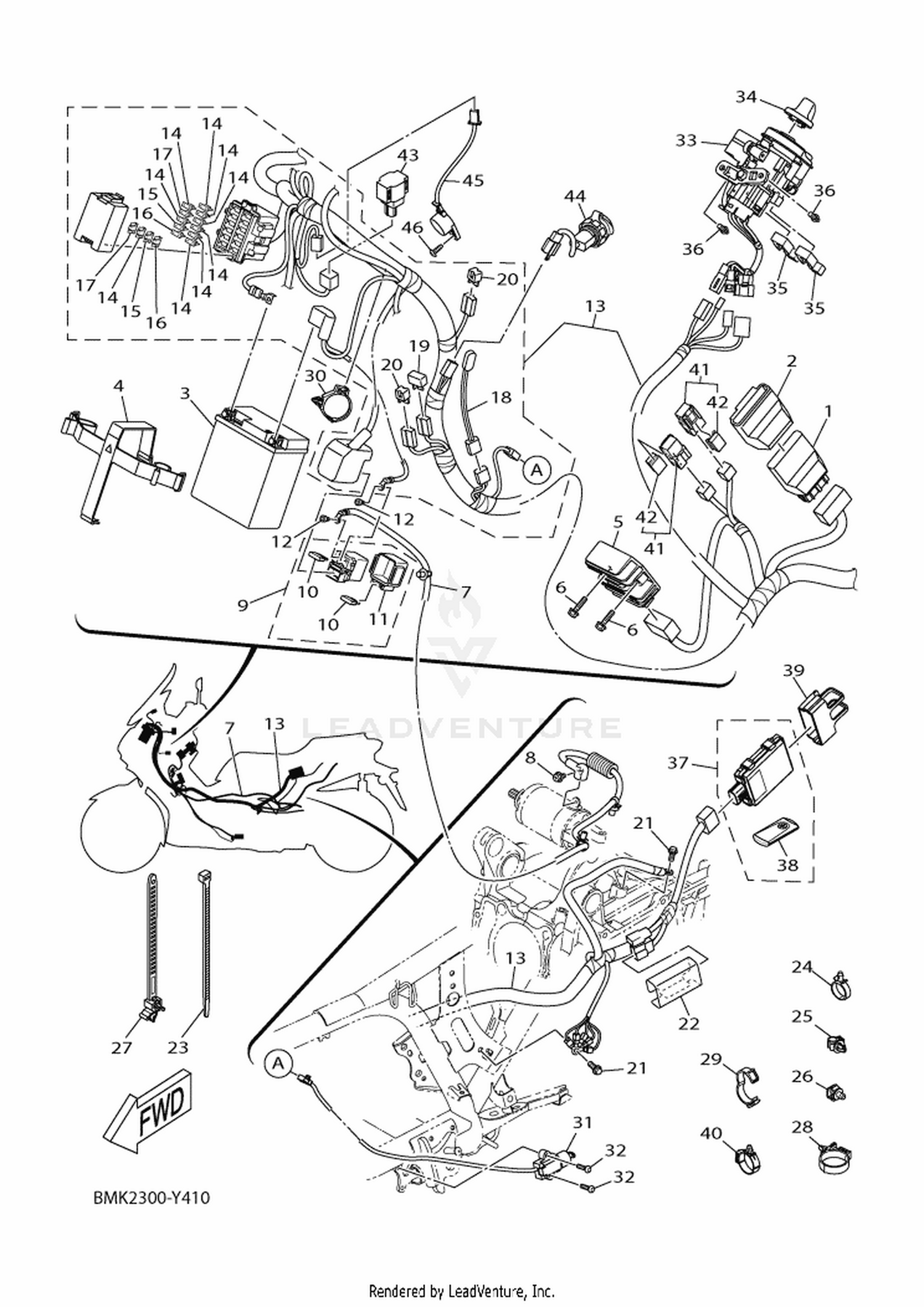

41 ELECTRICAL 1
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BMK-H591A-10 | ENGINE CONTROL UNIT ASSY Price: Call Us |
| 2 | B5X-H2591-00 | BAND Price: Call Us |
| 3 | 1WD-H2100-00 | BATTERY ASSY (GS GTZ8V) Price: Call Us |
| 4 | B74-H2131-00 | BAND, BATTERY Price: Call Us |
| 5 | 2GS-H1960-10 | RECTIFIER & REGULATOR ASSY Price: Call Us |
| 6 | 95D32-06025 | BOLT, FLANGE DEEP RECESS Price: Call Us |
| 7 | B74-H1815-02 | CORD, STARTER MOTOR Price: Call Us |
| 8 | 90149-05018 | SCREW Price: Call Us |
| 9 | B74-H1940-00 | STARTER RELAY ASSY Price: Call Us |
| 12 | 91312-05008 | BOLT Price: Call Us |
| 13 | BKA-H2590-00 | WIRE HARNESS ASSY Price: Call Us |
| 21 | 95E32-06012 | BOLT, FLANGE DEEP RECESS Price: Call Us |
| 22 | 2D1-82589-02 | PROTECTER, WIRE HARNESS Price: Call Us |
| 24 | 90464-24230 | CLAMP Price: Call Us |
| 25 | 90464-10008 | CLAMP Price: Call Us |
| 26 | 90464-12018 | CLAMP Price: Call Us |
| 28 | 90464-36006 | CLAMP Price: Call Us |
| 29 | 90464-16003 | CLAMP Price: Call Us |
| 30 | 90464-34801 | CLAMP Price: Call Us |
| 31 | B74-H2566-00 | SWITCH, SIDE STAND Price: Call Us |
| 32 | 90110-05060 | BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 33 | B74-H2501-13 | MAIN SWITCH STEERING LOCK Price: Call Us |
| 34 | B9Y-H276E-00 | KNOB COMP. Price: Call Us |
| 35 | 90464-09806 | CLAMP Price: Call Us |
| 36 | 90109-068D5 | BOLT Price: Call Us |
| 37 | BKA-H6260-40 | REMOTE CONTROL UNIT ASSY Price: Call Us |
| 38 | B5X-H6261-44 | XMTR. COMP. Price: Call Us |
| 39 | B65-H5546-00 | BAND Price: Call Us |
| 40 | 90464-30001 | CLAMP Price: Call Us |
| 41 | 1ST-81950-00 | RELAY ASSY (1ST-00) Price: Call Us |
| 43 | 1PA-H2576-00 | SENSOR, LEAN ANGLE Price: Call Us |
| 44 | B6H-H254B-00 | TERMINAL COMP. Price: Call Us |
| 45 | B3F-H3383-00 | BUZZER Price: Call Us |
