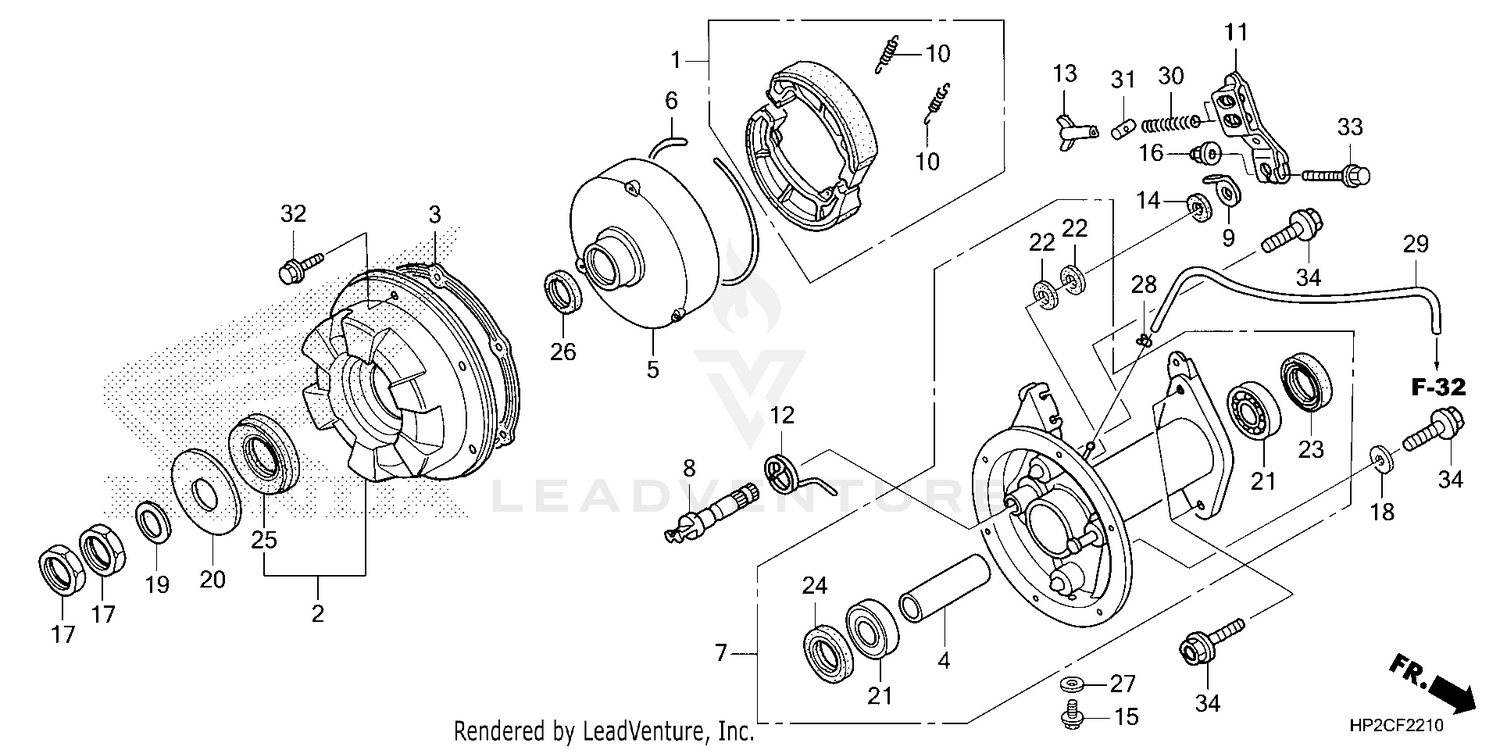

| Ref | Part Number | Description |
|---|
| 1 |
06430-HF7-A30 |
SHOE SET, BRAKE This part replaces 06430-HF7-000. Price: $43.31 |
| 2 |
40520-HF1-670 |
COVER ASSY., DRUM Price: $99.40 |
| 3 |
40539-HC3-000 |
GASKET, BRAKE COVER Price: $22.07 |
| 4 |
42621-HF7-000 |
COLLAR, RR. AXLE Price: $34.24 |
| 5 |
42622-HC3-000 |
DRUM, RR. BRAKE Price: $358.62 |
| 6 |
42624-HB3-000 |
RING, DAMPER Price: $22.44 |
| 7 |
43010-HP2-670 |
PANEL SET, RR. BRAKE Price: $279.85 |
| 8 |
43141-HF7-003 |
CAM, RR. BRAKE Price: $33.27 |
| 9 |
43145-HB3-000 |
INDICATOR, RR. BRAKE Price: $6.67 |
| 10 |
43151-329-000 |
SPRING, BRAKE SHOE (THIS APPLICATION-FRONT) Price: $3.29 |
| 11 |
43410-HF1-670 |
ARM, RR. BRAKE Price: $33.31 |
| 12 |
43413-HF1-670 |
SPRING, RR. BRAKE ARM RETURN Price: $7.89 |
| 13 |
43459-HM5-A10 |
NUT, BRAKE ADJUSTING Price: $11.51 |
| 14 |
45134-250-000 |
DUST SEAL, BRAKE CAM Price: $3.47 |
| 15 |
90131-HF1-670 |
BOLT, DRAIN PLUG (12MM) Price: $5.29 |
| 16 |
90301-473-003 |
NUT, U (6MM) NUT, FLANGE (6MM) Price: $5.11 |
| 17 |
90307-HB6-000 |
NUT, AXLE Price: $22.05 |
| 18 |
90406-751-700 |
WASHER, SPECIAL (12MM) Price: $7.92 |
| 19 |
90481-HB6-000 |
WASHER, TAPER Price: $9.69 |
| 20 |
90501-HB6-000 |
WASHER (31X86X1.5) Price: $29.93 |
| 21 |
91055-HA0-681 |
BEARING, RADIAL BALL (32X58X13) Price: $51.71 |
| 22 |
91208-HF7-005 |
DUST SEAL (14X20X4) (NOK) Price: $7.29 |
| 23 |
91251-HF7-003 |
DUST SEAL (44X58X8) (ARAI) Price: $16.91 |
| 24 |
91252-HB6-000 |
DUST SEAL (43X58X8) Price: $15.40 |
| 25 |
91253-HC4-003 |
DUST SEAL (45X76X19) Price: $19.22 |
| 26 |
91351-HB6-003 |
RING, SEAL Price: $3.95 |
| 27 |
94109-12000 |
WASHER, DRAIN PLUG (12MM) Price: $1.28 |
| 28 |
95002-02650 |
CLIP, TUBE (B6.5) Price: $1.55 |
| 29 |
95005-35001-30M |
BULK HOSE, VACUUM (3.5X1000) (3.5X860) (BULK HOSE: 95005-35001-30M) Price: $10.45 |
| 30 |
95014-73100 |
SPRING A, BRAKE ROD Price: $1.47 |
| 31 |
95015-32001 |
JOINT B, BRAKE ARM Price: $1.07 |
| 32 |
95701-06012-07 |
BOLT, FLANGE (6X12) Price: $1.70 |
| 33 |
95701-06032-00 |
BOLT, FLANGE (6X32) (Honda Code 2105856) Price: $1.97 |
