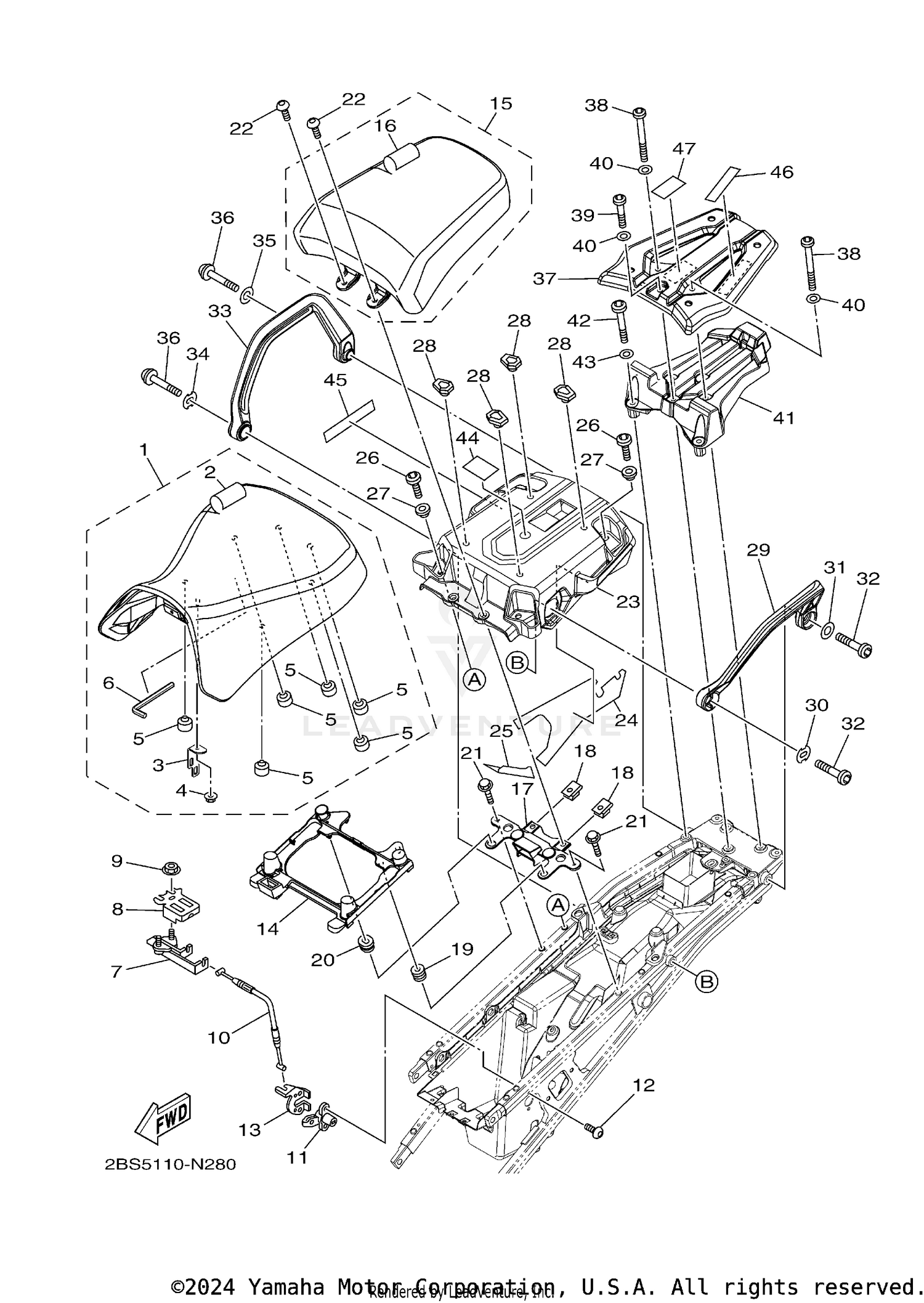

| Ref | Part Number | Description |
|---|
| 1 |
2KB-24710-01-00 |
SINGLE SEAT ASSY Price: $276.99 |
| 2 |
2KB-24711-01-00 |
COVER, SINGLE SEAT Price: $140.99 |
| 3 |
23P-24718-00-00 |
BRACKET, SEAT Price: $15.49 |
| 4 |
95604-06200-00 |
NUT, U FLANGE This part replaces 95602-06200-00. Price: $2.95 |
| 5 |
371-27114-00-00 |
STOPPER, MAIN STAND Price: $8.49 |
| 6 |
23P-28164-00-00 |
WRENCH, HEXAGON 8 Price: $3.65 |
| 7 |
4BP-24780-00-00 |
SEAT LOCK ASSY Price: $105.99 |
| 8 |
23P-2475H-00-00 |
BRACKET, SEAT LEVER 1 Price: $9.99 |
| 9 |
90179-06403-00 |
NUT Price: $6.99 |
| 10 |
23P-2478E-00-00 |
CABLE, SEAT LOCK Price: $8.49 |
| 11 |
3CK-W2470-00-00 |
SEAT LOCK ASSY This part replaces 2TV-24799-00-00. Price: $91.99 |
| 12 |
90149-06308-00 |
SCREW Price: $9.49 |
| 13 |
23P-2117K-01-00 |
STAY, LOCK Price: $7.49 |
| 14 |
23P-24708-00-00 |
SEAT BRACKET ASSY Price: $32.99 |
| 15 |
2KB-24750-01-00 |
TANDEM SEAT ASSY Price: $273.99 |
| 16 |
2KB-24751-01-00 |
COVER, TANDEM SEAT Price: $86.99 |
| 17 |
23P-2474F-00-00 |
STAY, FRONT 1 Price: $41.99 |
| 18 |
90183-08060-00 |
NUT, SPRING Price: $9.49 |
| 19 |
90480-13014-00 |
GROMMET This part replaces 90480-13398-00. Price: $9.49 |
| 20 |
90480-01559-00 |
GROMMET Price: $6.49 |
| 21 |
95817-06020-00 |
BOLT, FLANGE This part replaces 95802-06020-00. Price: $3.50 |
| 22 |
92012-08025-00 |
BOLT, BUTTON HEAD Price: $8.49 |
| 23 |
23P-24842-10-00 |
CARRIER, 2 Price: $297.99 |
| 24 |
23P-2172P-10-00 |
SEAT Price: $11.99 |
| 25 |
23P-2173P-00-00 |
SEAT 2 Price: $2.55 |
| 26 |
90149-06121-00 |
SCREW Price: $9.49 |
| 27 |
90387-06264-00 |
COLLAR Price: $6.49 |
| 28 |
23P-24737-00-00 |
DAMPER, SEAT Price: $4.20 |
| 30 |
23P-24736-00-00 |
WASHER Price: $11.99 |
| 31 |
92990-10200-00 |
WASHER, PLAIN This part replaces 92902-10200-00. Price: $3.72 |
| 32 |
90111-10054-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 34 |
23P-24736-00-00 |
WASHER Price: $11.99 |
| 35 |
92990-10200-00 |
WASHER, PLAIN This part replaces 92902-10200-00. Price: $3.72 |
| 36 |
90111-10054-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 37 |
23P-24841-10-00 |
CARRIER, 1 Price: $273.99 |
| 38 |
90111-08074-00 |
BOLT, HEX. SOCKET BUTTON Price: $11.49 |
| 39 |
90111-08076-00 |
BOLT, HEX. SOCKET BUTTON Price: $4.50 |
| 40 |
90201-08048-00 |
WASHER, PLATE Price: $6.49 |
| 41 |
23P-24884-00-00 |
STAY, BOX Price: $242.99 |
| 42 |
90111-08076-00 |
BOLT, HEX. SOCKET BUTTON Price: $4.50 |
| 43 |
90201-08048-00 |
WASHER, PLATE Price: $6.49 |
| 44 |
23P-2816K-10-00 |
LABEL, WARNING CARRIER 2 Price: $7.99 |
| 45 |
23P-2816J-10-00 |
LABEL, WARNING CARRIER 1 Price: $9.49 |
| 46 |
23P-2815T-10-00 |
LABEL, NOTICE CARRIER Price: $7.49 |
