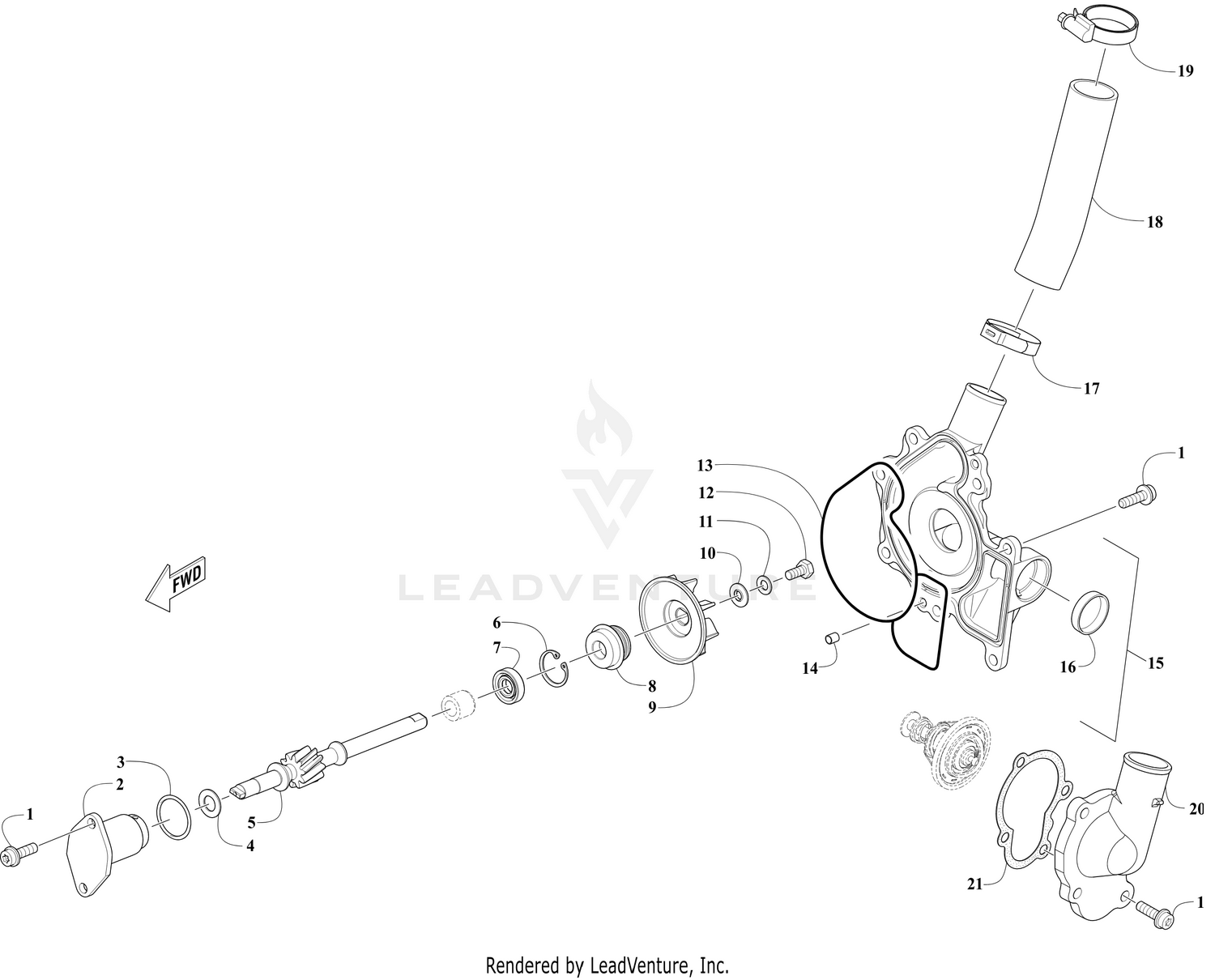

WATER PUMP ASSEMBLY [110902]

Ref	Part Number	Description
1	0923-025	Screw, Cap Price: $0.71
2	0913-020	Retainer, Driven Shaft Price: $126.95
3	0930-031	O-Ring Price: $3.75
4	0923-036	Shim, 10 x 18 x 1 mm Price: $27.95
5	0905-231	Shaft, Driven Price: $62.95
6	0931-003	Circlip Price: $2.05
7	0930-060	Seal, Oil Price: $7.23
8	0930-005	Seal, Mechanical Price: $36.95
9	0913-006	Impeller Price: $21.77
10	0923-011	Washer, Seal Price: $8.43
11	0923-035	Washer Price: $7.23
12	0923-030	Screw, Cap Price: $3.26
13	0930-025	Seal Price: $4.35
14	0829-049	Pin, Dowel Price: $1.45
16	0	Not A Serviceable Item Not Available Price:
17	1623-656	Clamp, Hose Price: $4.35
18	0610-870	Hose Price: $53.95
19	2623-088	Clamp, Hose Price: $3.14
20	0913-048	Cover, Thermostat Price: $15.79
