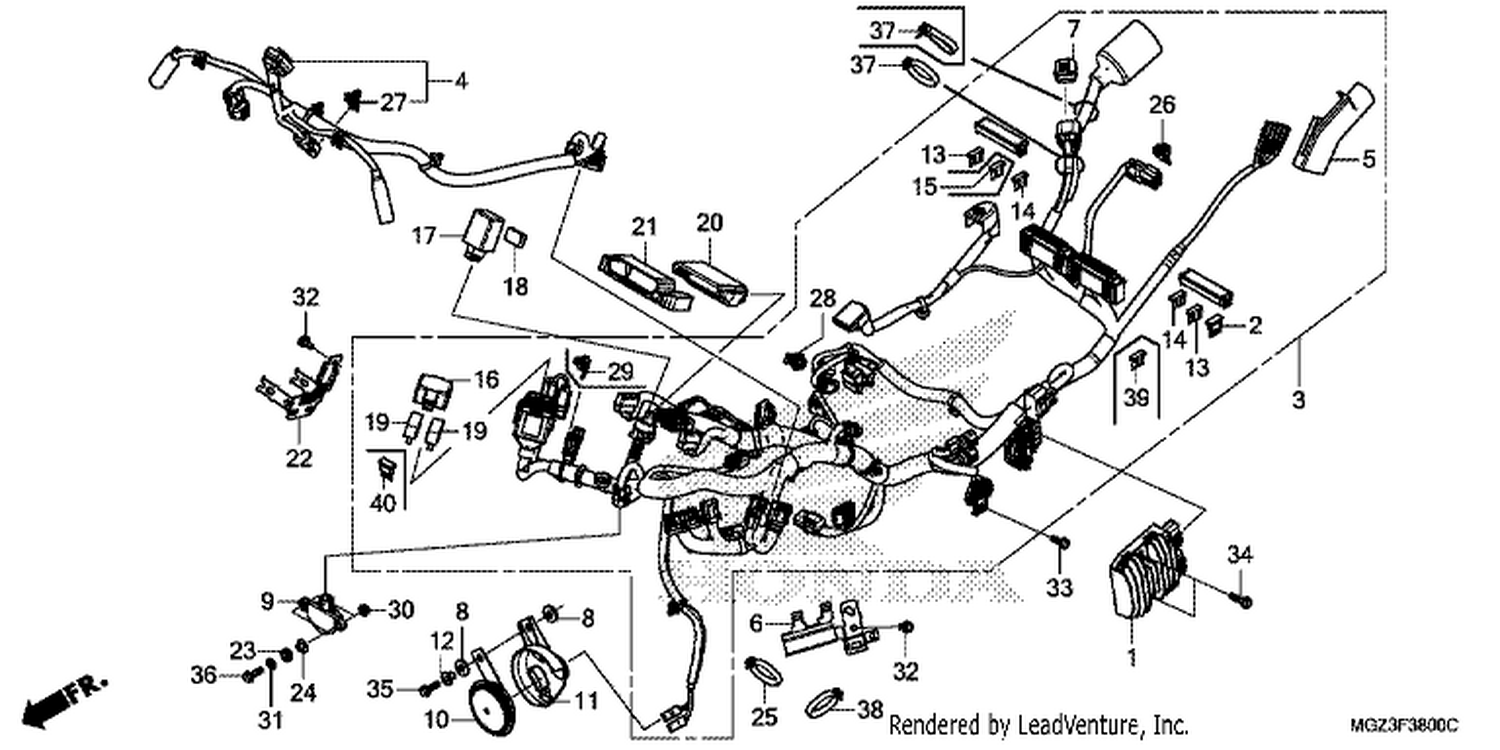

WIRE HARNESS

 WIRE HARNESS

Parts (37)

RefPart NumberDescription
1 31600MGZJ01 RECTIFIER ASSY., REGULATOR Price: Call Us
2 31730MAS601 DIODE ASSY., THREE WAY (SUMITOMO) Price: Call Us
3 32100MGZD11 HARNESS, WIRE Price: Call Us
4 32103MGZJ00 SUB HARNESS, FR. Price: Call Us
5 32109MGZJ41 SUSPENSION, COUPLER Price: Call Us
6 32206MGZJ00 STAY, COUPLER Price: Call Us
7 32606GEV761 CAP, DUMMY (4P) (RED) Price: Call Us
8 33714KL3620 RUBBER, TAILLIGHT BRACKET Price: Call Us
9 35160MGSD31 SENSOR ASSY., BANK ANGLE Price: Call Us
10 38110MGZJ01 HORN COMP. (HIGH) Price: Call Us
11 38111MGZJ00 HEAT GUARD, HORN Price: Call Us
12 38117MGZJ00 COLLAR, HORN SETTING Price: Call Us
13 38221SNAA31 FUSE, BLADE (7.5A) Price: Call Us
14 38221SNAA51 FUSE, BLADE (15A) Price: Call Us
15 38221SNAA81 FUSE, BLADE (30A) Price: Call Us
16 38281MGZJ01 COVER, RELAY BOX Price: Call Us
17 38301MEW921 RELAY COMP., WINKER (MITSUBA) Price: Call Us
18 38306KK4000 SUSPENSION, WINKER RELAY (MITSUBA) Price: Call Us
19 38501MEL003 RELAY ASSY., POWER (MICRO ISO 4P) Price: Call Us
20 38770MGZD03 PGM-FI UNIT Price: Call Us
21 38774MGZJ00 CUSHION, PGM FI UNIT Price: Call Us
22 50194MGZJ00 STAY, RELAY BOX Price: Call Us
23 64535MFJD00 RUBBER, SIDE COVER Price: Call Us
24 90129MGZJ00 COLLAR, BANK ANGLE SENSOR Price: Call Us
25 90651KV6003 BAND, WIRE, 165MM (BLACK) Price: Call Us
26 91535TA0003 CLIP, COUPLER (DARK BROWN) Price: Call Us
27 91565S3Y003 CLIP, COUPLER Price: Call Us
28 91565SEL003 CLIP, COUPLER (BLACK) Price: Call Us
29 91565SEL003 CLIP, COUPLER (BLACK) Price: Call Us
30 9405006080 NUT, FLANGE, 6MM Price: Call Us
31 9410306800 WASHER, PLAIN, 6MM Price: Call Us
32 957010601000 BOLT, FLANGE, 6X10 Price: Call Us
33 957010601408 BOLT, FLANGE, 6X14 Price: Call Us
34 957010602000 BOLT, FLANGE, 6X20 Price: Call Us
35 957010602007 BOLT, FLANGE, 6X20 Price: Call Us
36 957010602208 BOLT, FLANGE, 6X22 Price: Call Us
37 90652KT1771 BAND, WIRE (BLACK) Price: Call Us
