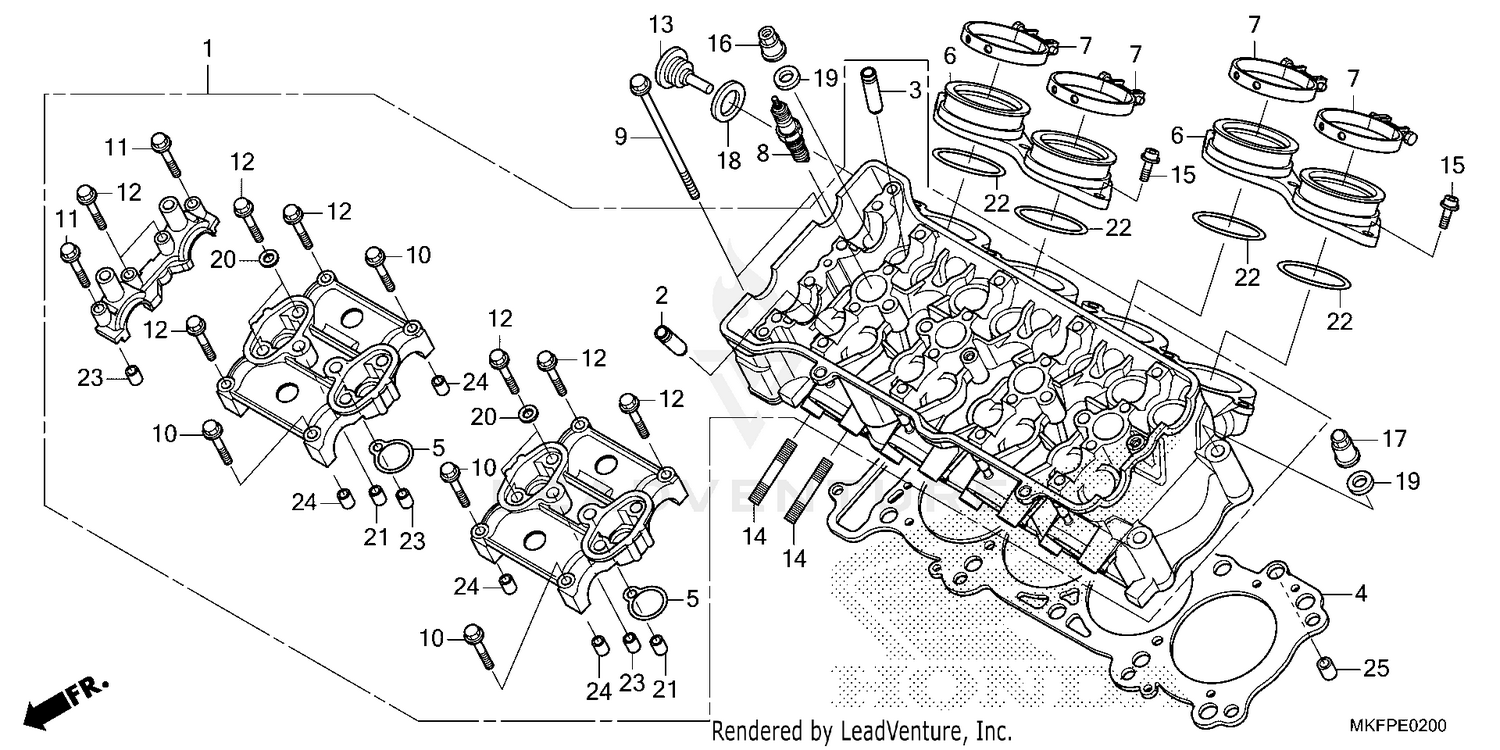

| Ref | Part Number | Description |
|---|
| 1 |
12010-MKF-D40 |
CYLINDER HEAD ASSY. Price: $1,983.07 |
| 2 |
12204-MBW-305 |
GUIDE, VALVE (OVER SIZE) (EXHAUST SIDE) Price: $18.24 |
| 3 |
12204-MFL-305 |
GUIDE, VALVE (OVER SIZE) (INLET SIDE) Price: $19.35 |
| 4 |
12251-MFL-003 |
GASKET, CYLINDER HEAD Price: $108.75 |
| 5 |
12395-MBW-003 |
GASKET, PLUG HOLE Price: $5.85 |
| 6 |
16210-MKF-D40 |
INSULATOR, THROTTLE BODY Price: $77.15 |
| 7 |
16218-MKF-D40 |
BAND, INSULATOR Price: $9.56 |
| 8 |
31912-MFL-003 |
SPARK PLUG (IMR9E-9HES) (NGK) Price: $16.38 |
| 8 |
31922-MEL-003 |
SPARK PLUG (VUH27ES) (DENSO) Price: $29.27 |
| 9 |
90012-MFL-000 |
BOLT, FLANGE (6X105) Price: $3.84 |
| 10 |
90018-425-000 |
BOLT, FLANGE (6X48) (Honda Code 0717256) Price: $4.20 |
| 11 |
90018-425-000 |
BOLT, FLANGE (6X48) (Honda Code 0717256) Price: $4.20 |
| 12 |
90016-KT7-000 |
BOLT, FLANGE (6X37) Price: $3.62 |
| 13 |
90023-MFL-000 |
SHAFT B, CAM CHAIN TENSIONER Price: $27.40 |
| 14 |
90035-MM5-000 |
BOLT, STUD (8X24) Price: $6.42 |
| 15 |
90071-MEL-000 |
BOLT, FLANGE SOCKET (6X16) Price: $2.56 |
| 16 |
90232-MFL-000 |
NUT, SPECIAL (9MM) Price: $4.71 |
| 17 |
90234-MFL-000 |
NUT, SPECIAL CAP (9MM) Price: $6.44 |
| 18 |
90403-MFL-000 |
WASHER, SEALING (24MM) Price: $1.64 |
| 19 |
90405-MFL-000 |
WASHER, PLAIN (9MM) Price: $2.44 |
| 20 |
90463-ML7-000 |
WASHER, SEALING (6.5MM) Price: $3.53 |
| 21 |
94301-08200 |
PIN, DOWEL (8X20) (Honda Code 1417369) Price: $2.35 |
| 22 |
91301-MEL-003 |
O-RING (44.3X2.5) Price: $5.58 |
| 23 |
94301-08200 |
PIN, DOWEL (8X20) (Honda Code 1417369) Price: $2.35 |
| 24 |
94301-08200 |
PIN, DOWEL (8X20) (Honda Code 1417369) Price: $2.35 |
