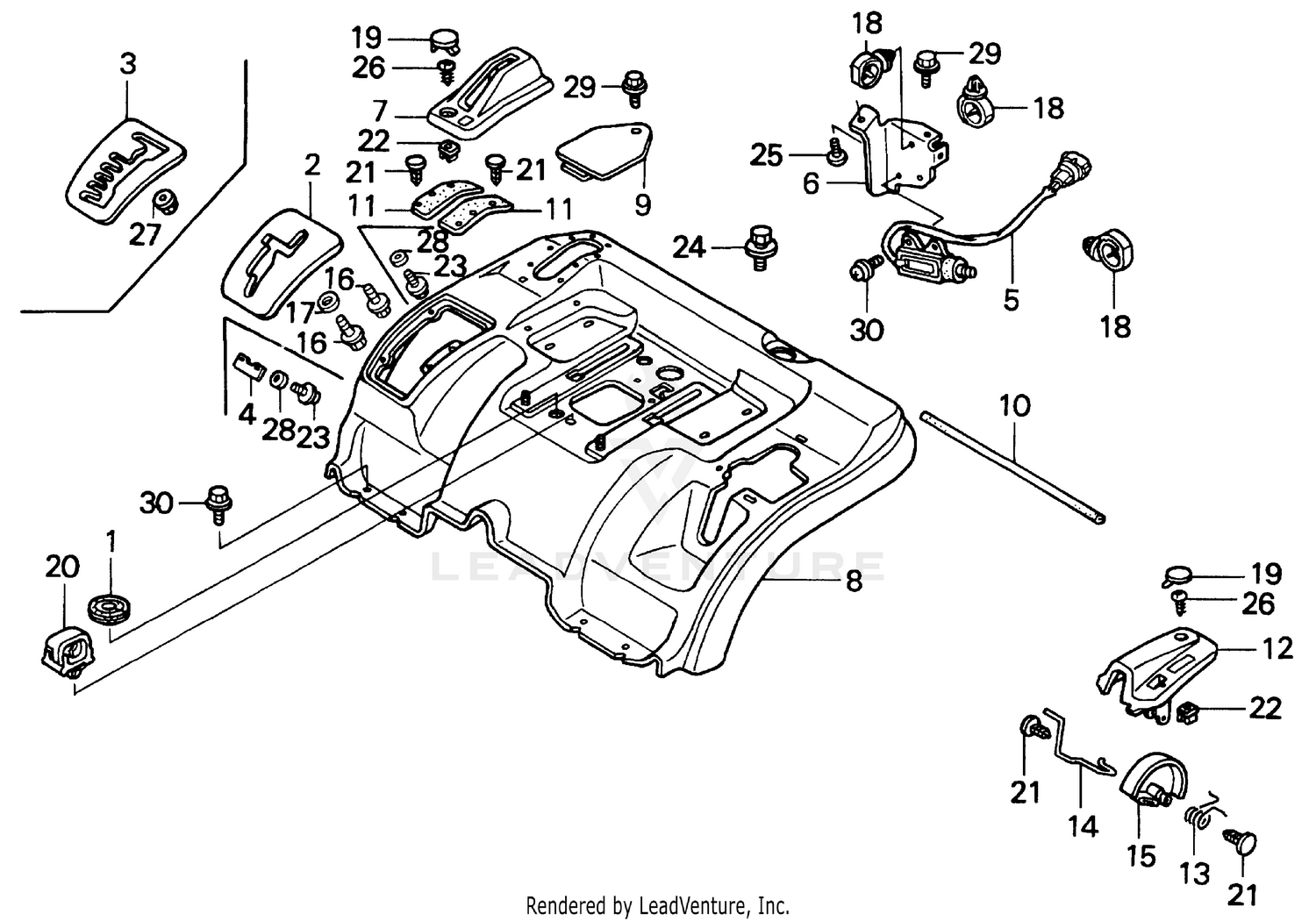

| Ref | Part Number | Description |
|---|
| 1 |
19905-750-000 |
GROMMET, WIRE Price: $5.80 |
| 3 |
24139-758-701ZA |
GUIDE, CHANGE LEVER *R165* (JOLLY RED) Price: $80.12 |
| 7 |
47125-758-000ZA |
PROTECTOR, PARKING BRAKE LEVER *NH247* (ASSEMBLY GRAY) Price: $31.68 |
| 8 |
63402-758-010ZB |
FENDER, RR. *R165* This part replaces 63402-758-010ZA. Price: $511.03 |
| 10 |
63414-758-000 |
TRIM, RR. FENDER Price: $25.12 |
| 12 |
66153-758-000ZA |
PROTECTOR, HEIGHT ADJUSTING LEVER *NH247* (ASSEMBLY GRAY) Price: $11.23 |
| 13 |
76347-758-000 |
SPRING, INDICATOR Price: $4.22 |
| 14 |
76424-758-000 |
ROD, INDICATOR Price: $6.12 |
| 15 |
76429-758-000 |
INDICATOR, HEIGHT Price: $16.90 |
| 19 |
90693-693-000ZE |
SEE PART DETAILS - SUP; CAP, LINING *NH1L* (BLACK) Price: Call Us |
| 20 |
91505-ZA0-601 |
CLIP, HARNESS (7MM) Price: $4.72 |
| 21 |
91504-SD5-901 |
CLIP, WASHER MOUTH Price: $6.62 |
| 21 |
91544-SD4-003 |
CLIP, COVER (5MM) Price: $6.62 |
| 22 |
91604-SE0-003 |
GROMMET, SCREW (5MM) Price: $3.98 |
| 24 |
93404-08016-07 |
BOLT-WASHER (8X16) Price: $2.34 |
| 26 |
93903-25220 |
SCREW, TAPPING (5X12) Price: $1.14 |
| 27 |
94050-06080 |
SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689). Price: $0.82 |
