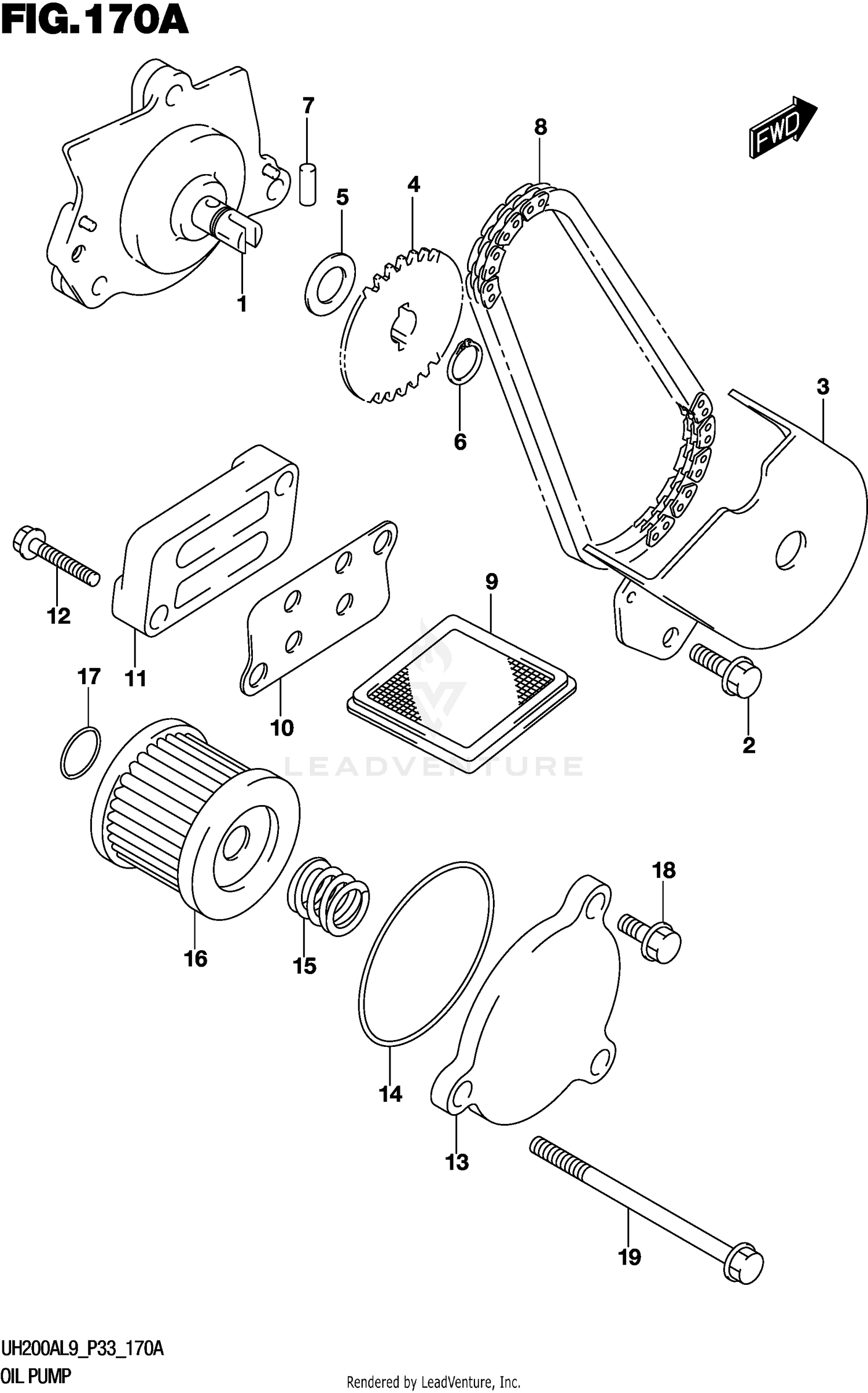

OIL PUMP
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 01547-0625A | BOLT Price: $2.45 |
| 3 | 16422-03H10 | COVER,OIL PUMP Price: $11.62 |
| 4 | 16331-49F00 | SPROCKET,OIL PUMP DRIVEN (NT: Price: $28.89 |
| 5 | 09181-10158 | SHIM (10X18X0.5) Price: $2.37 |
| 6 | 08331-31109 | CIRCLIP Price: $2.15 |
| 7 | 09261-04009 | PIN (4X15.8) Price: $1.75 |
| 8 | 16310-14F00 | CHAIN ASSY,OIL PUMP DRIVE (82 Price: $41.81 |
| 9 | 16520-09403 | STRAINER,ENGINE OIL This part replaces 16520-09402. Price: $9.22 |
| 10 | 16524-46G00 | GASKET,OIL STRAINER CAP Price: $6.93 |
| 11 | 16523-20E00 | CAP,OIL STRAINER Price: $12.09 |
| 12 | 01547-0625A | BOLT Price: $2.45 |
| 13 | 16512-20G00 | CAP,OIL FILTER Price: Call Us |
| 15 | 09440-18002 | SPRING Price: $1.33 |
| 16 | 16510-45H10 | FILTER ASSY,ENG OIL Price: $10.47 |
| 17 | 09280-12009 | O RING (D:1.9,ID:12.6) This part replaces 09280-13007. Price: $3.87 |
| 18 | 07130-0616B | BOLT This part replaces 07130-0616A. Price: $2.87 |
