| Ref | Part Number | Description |
|---|
| 3 |
1607-332 |
Bracket, Mounting - Suspension - Right Price: $20.56 |
| 3 |
1607-333 |
Bracket, Mounting - Suspension - Left Price: $20.56 |
| 4 |
8060-686 |
Rivet - Zinc Price: $0.46 |
| 5 |
1623-206 |
Rivet Price: $2.30 |
| 6 |
8422-502 |
Nut, Lock Price: $0.48 |
| 7 |
1707-644 |
Bracket, Mounting - Rear Spar - Right Price: $33.95 |
| 7 |
1707-645 |
Bracket, Mounting - Rear Spar - Left Price: $33.95 |
| 8 |
8476-512 |
Screw, Machine Price: $1.45 |
| 9 |
1623-257 |
Rivet Price: $2.30 |
| 10 |
8060-682 |
Rivet Price: $0.24 |
| 11 |
1607-251 |
Tunnel, Rear Price: $400.95 |
| 12 |
8060-482 |
Rivet Price: $0.48 |
| 13 |
1607-104 |
End Cap, Tunnel Price: $41.95 |
| 14 |
8060-706 |
Rivet Price: $0.46 |
| 15 |
1623-762 |
Clamp, Routing Price: $8.43 |
| 16 |
0645-709 |
Clip, Routing Price: $13.28 |
| 17 |
8476-820 |
Screw, Machine Price: $1.08 |
| 18 |
1707-454 |
Support, Footrest - Right Price: $71.95 |
| 18 |
1707-455 |
Support, Footrest - Left Price: $71.95 |
| 19 |
8427-802 |
Nut, Lock Price: $0.58 |
| 20 |
0744-087 |
Kit, Tool Price: $90.14 |
| 21 |
8468-535 |
Screw, Machine Price: $1.07 |
| 22 |
1623-637 |
Clip, U-Nut Price: $2.61 |
| 23 |
0607-996 |
Footrest - Right Price: $28.95 |
| 23 |
0607-997 |
Footrest - Left Price: $28.95 |
| 24 |
8470-516 |
Screw, Machine Price: $0.35 |
| 25 |
0608-705 |
Bracket, Routing - Oil Line Price: $14.49 |
| 26 |
1607-109 |
Protector, Chain Case Price: $5.90 |
| 27 |
8061-708 |
Rivet Price: $1.08 |
| 28 |
0607-351 |
Protector, Brake Disc Price: $13.28 |
| 29 |
1607-371 |
Shield, Brake Disc Price: $111.95 |
| 30 |
8408-613 |
Screw, Cap Price: $1.66 |
| 31 |
1623-130 |
Rivet Price: $1.80 |
| 32 |
1607-092 |
Roll, Tunnel - Right Price: $64.95 |
| 33 |
0630-309 |
Protector, Taillight Harness Price: $18.13 |
| 34 |
1623-241 |
Rivet Price: $2.05 |
| 35 |
1607-162 |
Gusset, Running Board - Right Price: $19.35 |
| 35 |
1607-163 |
Gusset, Running Board - Left Price: $19.35 |
| 36 |
1607-040 |
Gusset, Tunnel Roll - Right Price: $22.99 |
| 36 |
1607-041 |
Gusset, Tunnel Roll - Left Price: $22.99 |
| 37 |
3621-138 |
Decal, Tunnel "137" - Right Price: $22.99 |
| 37 |
3621-139 |
Decal, Tunnel "137" - Left Price: $1.89 |
| 38 |
0630-292 |
Protector, Taillight Harness Price: $16.92 |
| 39 |
0621-991 |
Decal, Reflector - Red Price: $18.13 |
| 40 |
8470-510 |
Screw, Machine Price: $0.71 |
| 41 |
0630-328 |
Bracket, Mounting - Taillight Price: $30.95 |
| 42 |
0609-898 |
Taillight, LED Price: $70.95 |
| 43 |
6606-394 |
Snowflap Price: $109.95 |
| 44 |
5611-852 |
Decal, Warning - Towing (French) Price: $2.54 |
| 45 |
5611-853 |
Decal, Warning - Towing (English) Price: $2.81 |
| 46 |
8061-706 |
Rivet Price: $1.07 |
| 47 |
2707-902 |
Bumper, Rear - w/Hitch - Green Price: $306.67 |
| 48 |
0441-592 |
BUSHING,RACK FRAME Price: $2.29 |
| 49 |
0423-946 |
Screw, Self Tapping Price: $0.71 |
| 50 |
8476-620 |
Screw, Machine Price: $0.48 |
| 51 |
8427-602 |
Nut, Hex Price: $0.23 |
| 53 |
0623-213 |
Pin, Hitch Price: $24.20 |
| 54 |
2706-229 |
Latch, Hitch - Black Price: $18.13 |
| 55 |
0623-335 |
Spring, Hitch Price: $28.95 |
| 56 |
8040-366 |
Nut, Lock Price: $0.35 |
| 57 |
8002-046 |
Screw, Cap Price: $1.20 |
| 58 |
8408-830 |
Screw, Cap Price: $1.08 |
| 59 |
8422-802 |
Nut, Lock Price: $0.46 |
| 60 |
7606-075 |
Saddlebag - Rear Price: $149.95 |
| 61 |
8060-630 |
Rivet Price: $1.32 |

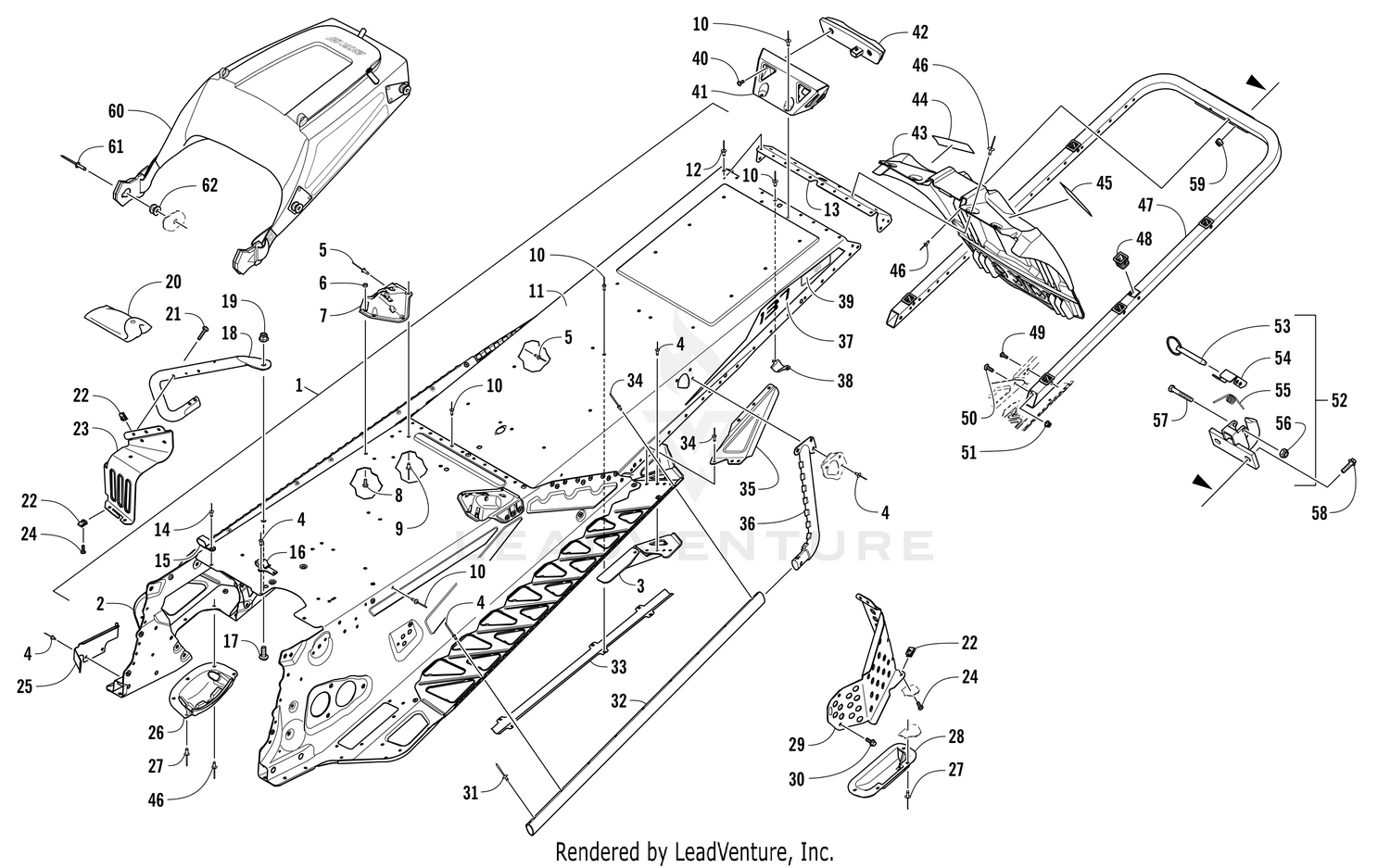

![TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY [104344]](https://cdn.datamanager.arinet.com/image/ARCT/1596b3b0-af66-46ab-9c11-452b6a7c634e/Max)
