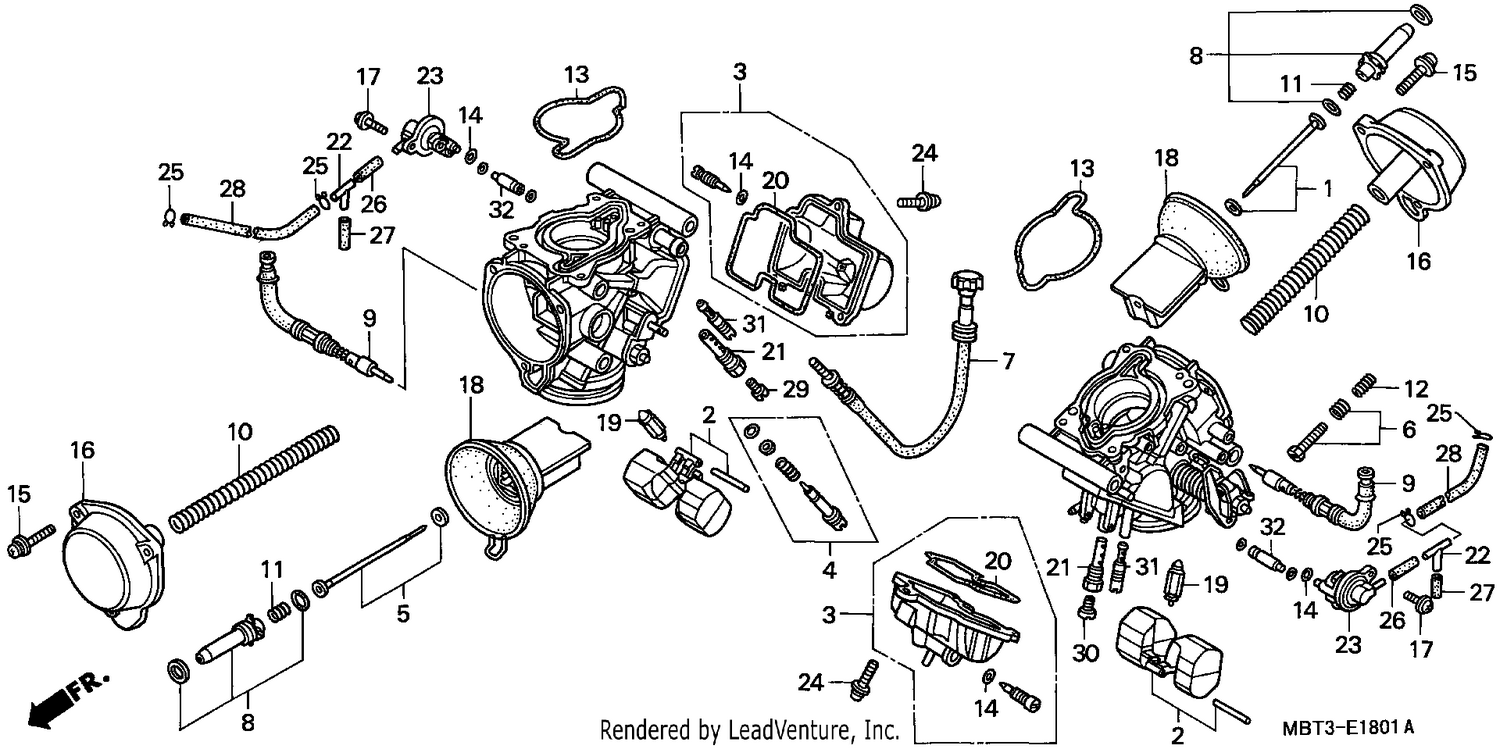

CARBURETOR (COMPONENT PARTS)

CARBURETOR (COMPONENT PARTS)

Parts (31)

RefPart NumberDescription
1 16012MBT621 NEEDLE SET, JET Price: Call Us
2 16013MAT600 FLOAT SET Price: Call Us
3 16015MBT621 CHAMBER SET, FLOAT Price: Call Us
4 16016MY1000 SCREW SET Price: Call Us
5 16027MBT621 NEEDLE SET, JET Price: Call Us
6 16028MBB640 SCREW SET Price: Call Us
7 16029MBT621 SCREW SET Price: Call Us
8 16037MAT600 PLATE SET, VALVE Price: Call Us
9 16046MBB640 VALVE SET, STARTER Price: Call Us
10 16050MBT621 SPRING, VACUUM PISTON Price: Call Us
11 16051MV4000 SPRING, COMPRESSION COIL Price: Call Us
12 16052KG4003 SPRING, COMPRESSION COIL Price: Call Us
13 16076MBT621 O-RING Price: Call Us
14 16076ND5004 O-RING, 1.3X4.3 Price: Call Us
15 16080MV4000 SCREW-WASHER Price: Call Us
16 16107MBT621 TOP Price: Call Us
17 16108MW0750 SCREW Price: Call Us
18 16111MBT621 PISTON COMP., VACUUM Price: Call Us
19 16155413751 VALVE COMP., FLOAT Price: Call Us
20 16163MZ5920 GASKET, FLOAT CHAMBER Price: Call Us
21 16165MBT621 HOLDER, NEEDLE JET Price: Call Us
22 16180195731 T-JOINT Price: Call Us
23 16510MBT621 VALVE ASSY., AIR CUT Price: Call Us
24 938920501610 SCREW-WASHER, 5X16 Price: Call Us
25 9500202079 CLIP, TUBE (B7) Price: Call Us
26 950053503020 TUBE, 3.5X30 (95005-35001-20M) Price: Call Us
27 950053505020 TUBE, 3.5X50 (95005-35001-20M) Price: Call Us
28 95005351502A TUBE, 3.5X150 (95005-35001-20M) Price: Call Us
29 991013931680 JET, MAIN, #168 Price: Call Us
30 991013931700 JET, MAIN, #170 Price: Call Us
31 99103MT20420 JET, SLOW, #42 Price: Call Us
