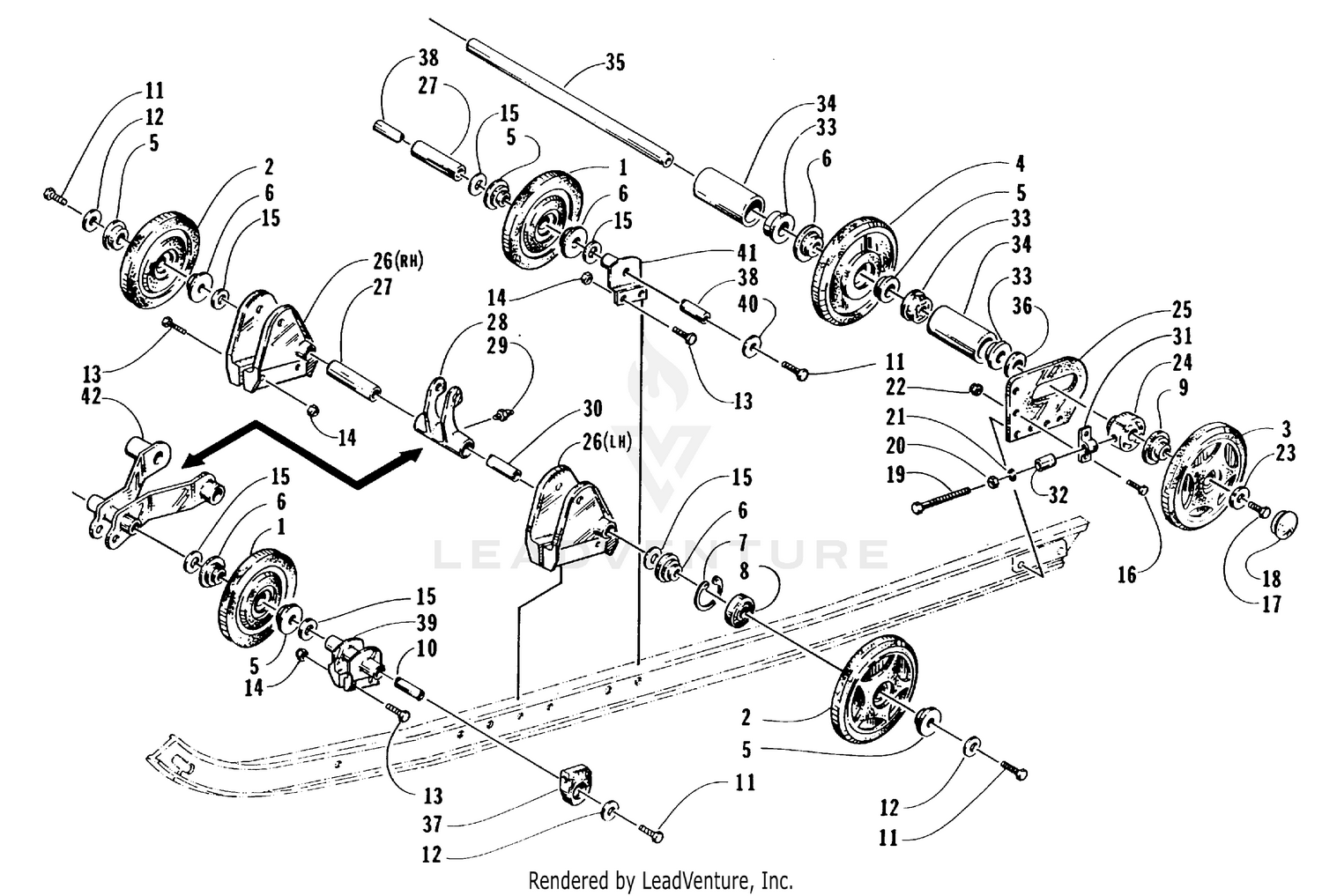

REAR SUSPENSION AXLE ASSEMBLY [63945]

Parts (42)

Ref	Part Number	Description
1	0114-240	Wheel, Idler Price: $53.95
2	0604-240	Wheel, Idler Price: $39.95
3	0604-238	Wheel, Idler Price: $35.95
4	0604-210	Wheel, Idler (inc. 2-5) Price: $51.79
5	1604-773	Insert, 5/8 Bore X 1.580 OD Price: $5.81
6	1604-772	Insert, 5/8 Bore X 2 OD (Short) Price: $2.89
7	0123-798	Ring, Retaining Price: $1.80
8	0107-598	Bearing Price: $13.28
9	1604-774	INSERT,5/8 BORE X 2" (LONG) Price: $7.23
10	0604-578	Axle, Idler Wheel Price: $36.95
11	8012-132	Screw, Cap Price: $0.49
12	0123-260	Washer Price: $1.66
13	8002-131	Screw, Cap Price: $1.20
14	8040-426	Nut, Hex Lock - NYL 5/16-18 Z&Y Price: $1.79
15	0123-439	Washer Price: $4.04
16	8002-041	Screw, Cap Price: $4.29
17	8012-222	Screw, Cap Price: $1.09
18	0604-246	Cap, Idler Wheel Price: $3.38
19	0623-123	Screw, Cap Price: $2.66
20	8042-486	Nut Price: $1.77
21	8051-277	Washer, Lock Price: $1.70
22	8040-366	Nut, Lock Price: $0.35
23	0123-570	Washer Price: $7.23
24	0604-165	Bushing, Adjuster Price: $9.03
25	0604-131	Housing, Rear Axle Price: $34.95
26	0704-190	Bracket, Mounting - Right Price: $34.95
26	0704-191	Bracket, Mounting - Left Price: $35.95
27	0603-105	Spacer Price: $15.71
28	0704-589	PIVOT,REAR SHOCK-PTD BLK Price: $33.95
29	9916-963	Fitting, Grease Price: $4.35
30	0604-576	Axle, Idler Wheel Price: $23.95
31	0604-206	Adjuster, Track Price: $14.23
32	0604-298	SPACER,SHOCK LINK-Z&Y Price: $36.95
33	0604-968	Bushing, Spacer - Rear Wheel Price: $10.85
34	0604-730	Spacer, Rear Idler Wheel Price: $20.16
35	0604-208	Axle, Rear Price: $58.95
36	0623-220	Washer Price: $2.49
37	2604-515	Slide, Spring Price: $7.23
38	0604-142	Axle, Inner Price: $32.95
39	0704-201	Bracket Price: $24.66
40	0623-140	Washer Price: $0.84
41	0704-196	Support, Idler Wheel Price: $31.95
