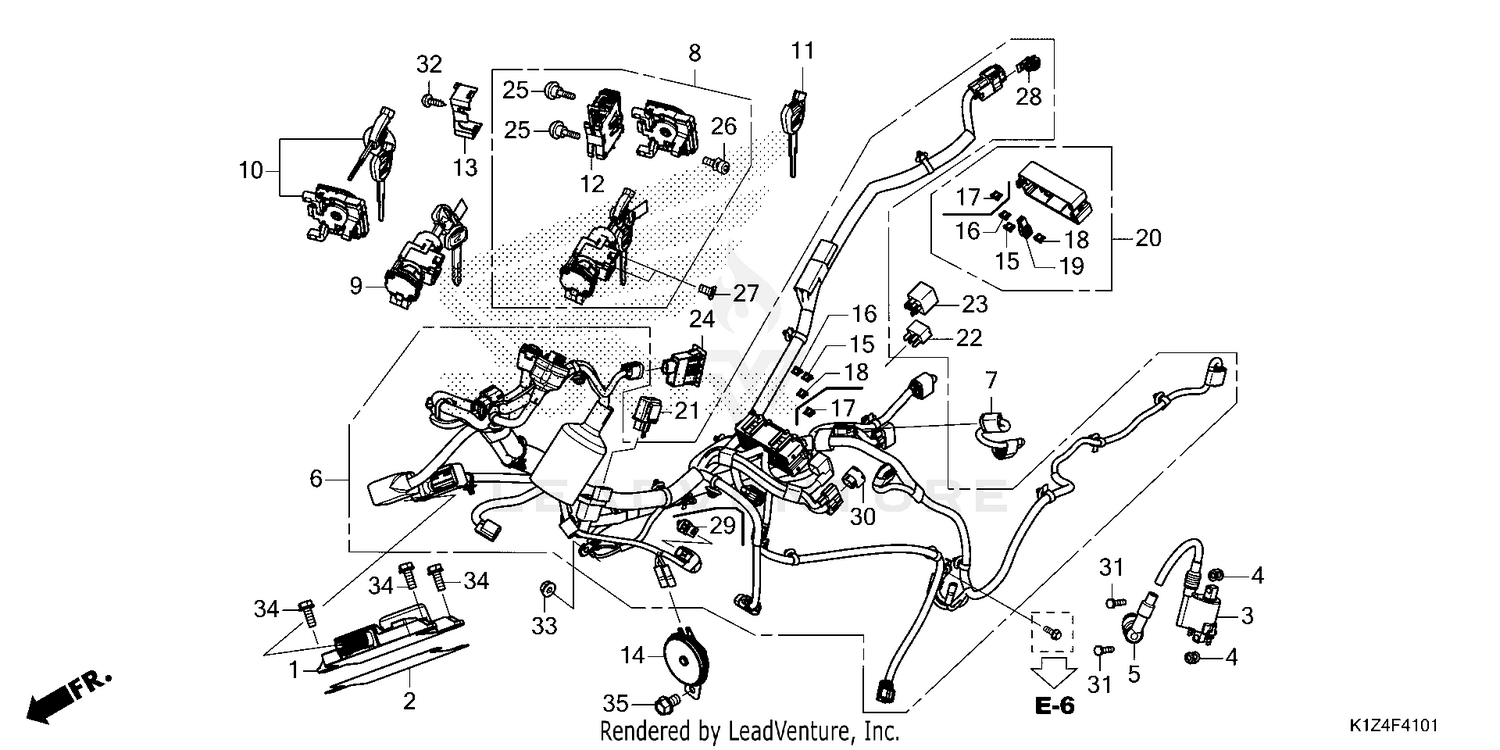

| Ref | Part Number | Description |
|---|
| 1 |
30400-K1Z-A41 |
ENG CONTROL UNIT Price: $160.58 |
| 2 |
30401-K1Z-J10 |
COVER, ENGINE CONTROL UNIT Price: $1.40 |
| 3 |
30510-K1Z-J51 |
COIL COMP (MP39) Price: $9.63 |
| 4 |
30520-GFM-900 |
SPACER, IGNITION COIL Price: $2.98 |
| 5 |
30700-K0R-V01 |
CAP ASSY., NOISE SUPPRESSOR Price: $6.11 |
| 6 |
32100-K1Z-A40 |
WIRE HARNESS Price: $204.61 |
| 7 |
32104-K1Z-J50 |
SUB-HARNESS Price: $2.44 |
| 8 |
35100-K97-A02 |
SWITCH, COMB&LOCK Price: $54.78 |
| 9 |
35101-K97-A01 |
SWITCH COMP Price: $39.96 |
| 10 |
35110-K35-V02 |
SHUTTER, KEY Price: $25.16 |
| 12 |
35190-K97-B01 |
SWITCH ASSY., FUEL LID & SEAT OPENER Price: $7.75 |
| 13 |
35191-K27-V01 |
COVER, CABLE Price: $2.13 |
| 14 |
38120-K1Z-J11 |
HORN (LOW) Price: $15.13 |
| 15 |
38221-SNA-A31 |
FUSE, BLADE (7.5A) Price: $3.90 |
| 16 |
38221-SNA-A41 |
FUSE, BLADE (10A) Price: $3.90 |
| 18 |
38221-SNA-A81 |
FUSE, BLADE (30A) Price: $2.53 |
| 19 |
38235-SNA-A01 |
PULLER, MINI FUSE Price: $4.68 |
| 20 |
38255-K1Y-K01 |
COVER ASSY., POWER BOX Price: $6.22 |
| 21 |
38301-KZZ-J01 |
RELAY, TURN SIGNAL Price: $64.98 |
| 22 |
38501-MKR-D11 |
RELAY, POWER (MICRO ISO 4P) Price: $14.87 |
| 23 |
38502-KWN-701 |
RELAY, POWER (PANASONIC) Price: $38.75 |
| 24 |
38940-K1B-T01 |
CHARGER UNIT, USB (TYPE-C) Price: $42.60 |
| 25 |
90101-MT4-000 |
SCREW, SCREEN SETTING Price: $2.04 |
| 26 |
90111-MR5-000 |
BOLT, SOCKET (5X9) Price: $2.98 |
| 27 |
90164-KZL-A00 |
SCREW, U-LOCK FLAT (6X12) Price: $2.04 |
| 28 |
91535-TA0-003 |
CLIP, CONNECTOR (DARK BROWN) Price: $5.20 |
| 30 |
91771-MKK-H11 |
CAP, DUMMY (6P) (RED) Price: $25.67 |
| 31 |
92101-06022-4J |
BOLT, HEX. (6X22) Price: $4.60 |
| 32 |
93901-24320 |
SCREW, TAPPING (4X12) Price: $0.95 |
| 33 |
94050-06080 |
NUT, FLANGE (6MM) Price: $0.68 |
| 34 |
95701-06016-00 |
BOLT, FLANGE (6X16) (Honda Code 2410892) Price: $1.70 |
