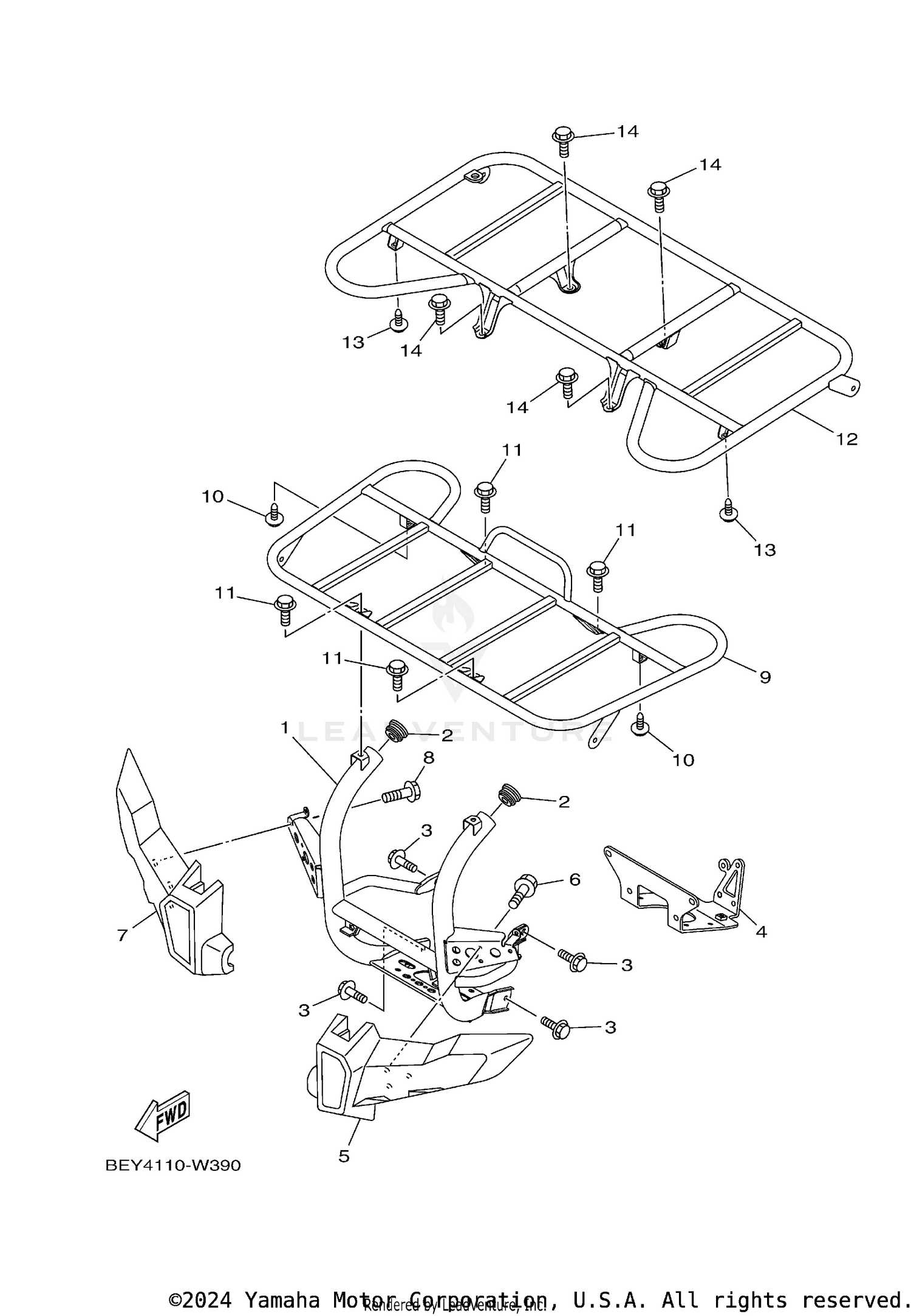

GUARD
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B5R-F845N-10-00 | BAR, CARRY FRONT Price: $336.99 |
| 2 | 90338-29800-00 | PLUG Price: $9.49 |
| 3 | 95817-08014-00 | BOLT, FLANGE This part replaces 95812-08014-00. Price: $2.50 |
| 4 | BEY-F8426-00-00 | BRACKET 1 Price: $86.99 |
| 5 | 37S-F8415-00-00 | DAMPER 1 Price: $102.99 |
| 6 | 95D32-06010-00 | BOLT, FLANGE DEEP RECESS Price: $0.80 |
| 7 | 37S-F8416-00-00 | DAMPER 2 Price: $99.99 |
| 8 | 95D32-06010-00 | BOLT, FLANGE DEEP RECESS Price: $0.80 |
| 9 | BB5-F4841-30-00 | CARRIER, FRONT Price: $164.99 |
| 10 | 90119-06157-00 | BOLT, WITH WASHER Price: $9.49 |
| 11 | 95817-08012-00 | BOLT, FLANGE This part replaces 95812-08012-00. Price: $5.49 |
| 12 | BB5-F4842-30-00 | CARRIER, REAR Price: $198.99 |
| 13 | 90119-06157-00 | BOLT, WITH WASHER Price: $9.49 |
