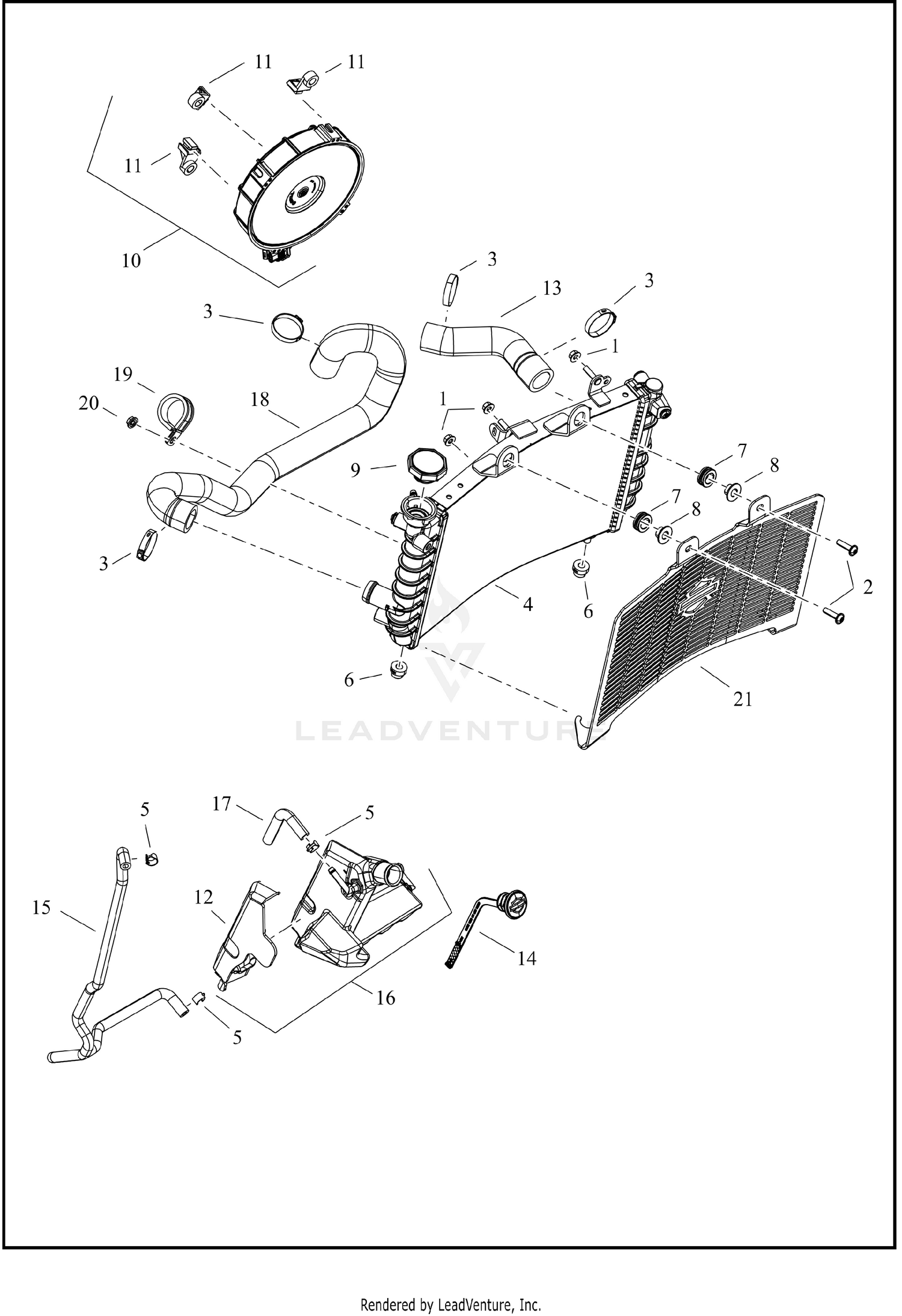

RADIATOR
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5238M | FLANGE NUT,HEX/LOCK Price: $1.38 |
| 2 | 10201183 | SCREW,BHCS TORX,GR 8.8,M6X1.0-25 Price: $1.43 |
| 4 | 26800221A | RADIATOR,CORE Price: $247.88 |
| 7 | 12100137 | GROMMET,3MM PANEL - 18MM OD 13.6MM ID Price: $25.97 |
| 8 | 12600240 | HDW,MISC,COM LIMITER,13.6MM OD 10.6MM ID Price: $4.29 |
| 9 | 26800086 | CAP,RDTR PRESS,20 PSI, COOLANT FILL Price: $27.38 |
| 11 | 26800226 | FAN,CLG,MTG FOOT Price: $4.32 |
| 12 | 26900332 | TANK,RDTR OVRFL,HEAT SHIELD Price: $33.48 |
| 20 | 7495 | NUT,FLANGE,HEX Price: $1.22 |
