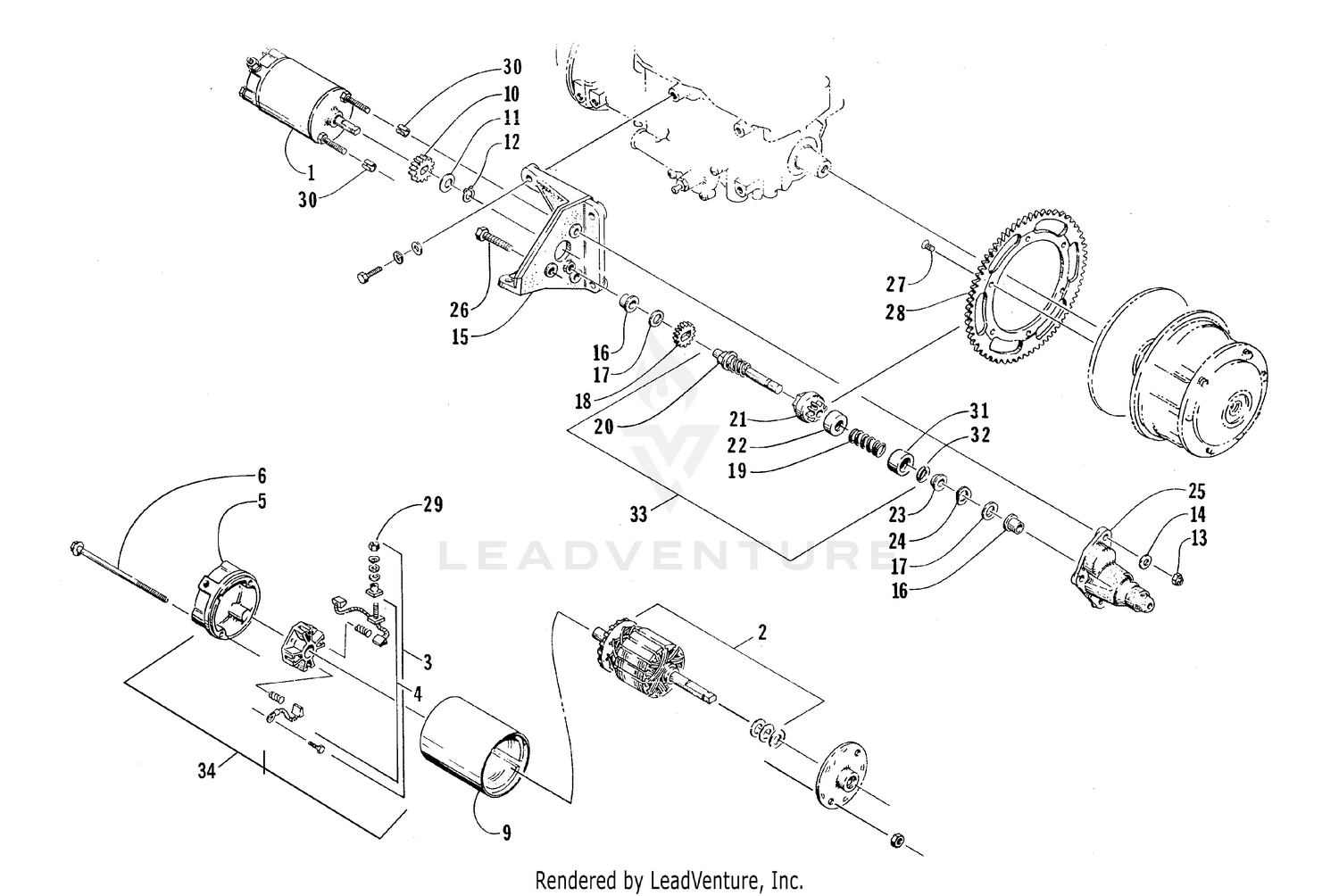

ELECTRIC START - STARTER MOTOR ASSEMBLY [63509]

Ref	Part Number	Description
1	0645-578	MOTOR,STARTER Price: $393.95
1	0745-344	Kit, Starter Motor Price: $668.95
2	0645-146	Armature Assembly Price: $247.95
4	0645-275	Kit, Brush & Springs Price: $74.95
5	0645-054	Commutator Cap Price: $196.88
6	0645-128	Through-Bolt Price: $43.95
7	0745-367	Cap, Motor w/Bushing Price: $69.95
8	0623-036	Nut, Lock Price: $0.09
10	0645-098	Gear, Drive Price: $77.95
11	0623-336	Washer, Spring Price: $4.69
12	0645-130	Ring, Snap Price: $1.09
13	8040-366	Nut, Lock Price: $0.35
14	8050-217	Washer, Flat Price: $0.24
15	0745-054	Bracket, Offset Starter Price: $95.95
16	0645-108	Bushing Price: $29.95
17	0645-127	Washer, Thrust Price: $0.79
18	0645-290	GEAR, ES-20T FX SECONDARY Price: $0.79
19	0645-424	SPRING,PINION-HD ES Price: $2.69
20	0645-100	Shaft, Drive/Pinion Price: Call Us
21	0745-325	Kit, Drive/Pinion (0645-228) (RB 0745-347) Price: $189.95
22	0645-218	Cover, Dust Price: $9.95
23	0645-107	Sleeve, Spacer Price: $2.89
24	0645-126	Washer, Wave Price: $0.79
25	0745-069	Cap, End - Starter Motor Price: $285.95
26	0623-440	Screw, Self-Tapping Price: $0.19
27	0623-441	Screw, Machine - Socket Head Price: $0.69
28	0645-329	RING GEAR,ELECTRIC START-LW Price: $274.95
29	0623-122	Nut, Lock Price: $1.57
30	0645-106	Sleeve Price: $1.39
31	0645-217	Stop, Pinion Price: $82.95
