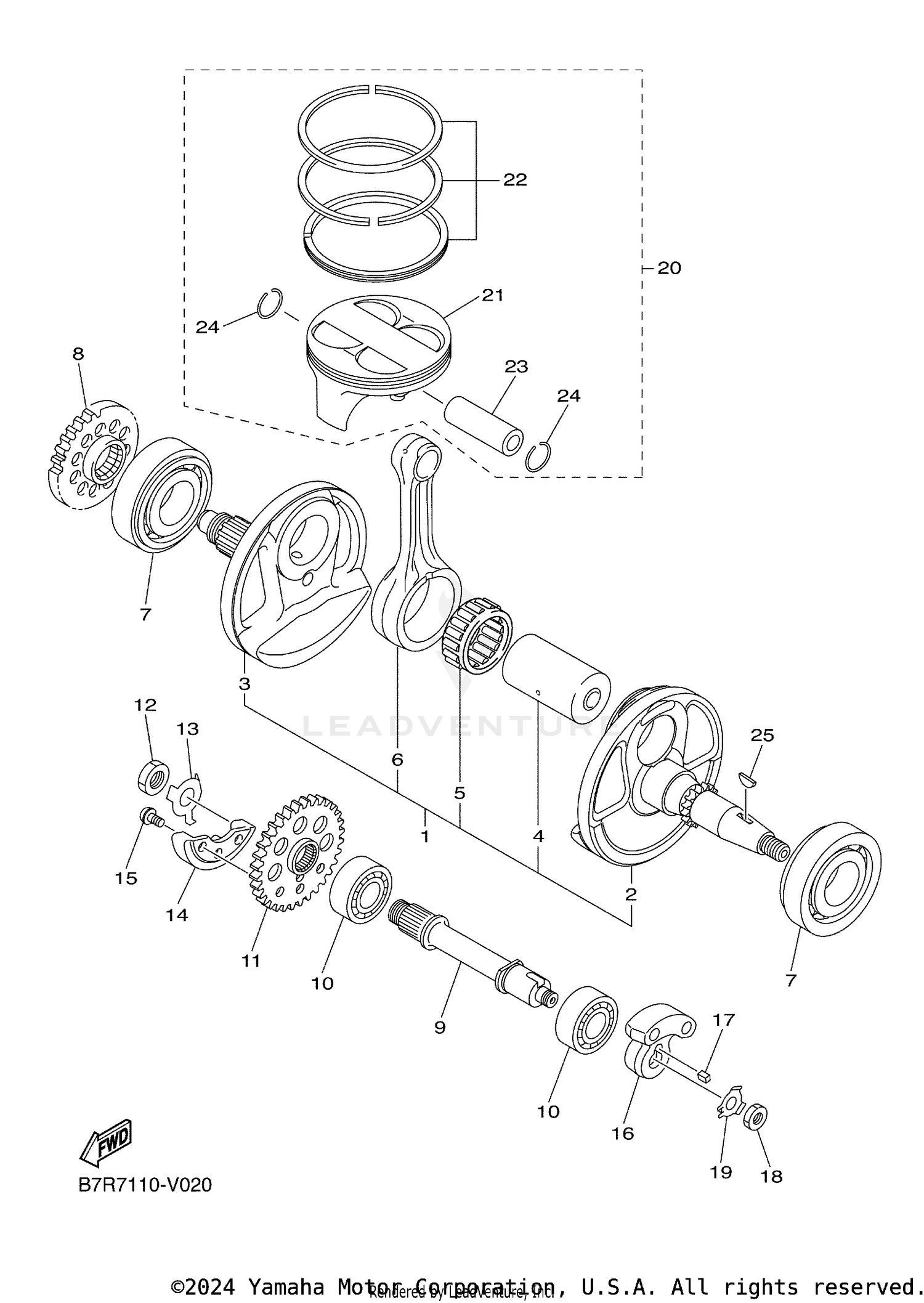

CRANKSHAFT PISTON
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B3J-11400-00-00 | CRANKSHAFT ASSY Price: $660.99 |
| 2 | BR9-11412-10-00 | CRANK 1 Price: $270.99 |
| 3 | BR9-11422-00-00 | CRANK 2 Price: $300.99 |
| 4 | 5TG-11681-01-00 | PIN, CRANK 1 Price: $90.99 |
| 5 | 93310-63499-00 | BEARING Price: $65.99 |
| 6 | 33D-11651-03-00 | ROD, CONNECTING Price: $140.99 |
| 7 | 93306-30633-00 | BEARING Price: $110.99 |
| 8 | 2S2-11536-00-00 | GEAR, DRIVE Price: $91.99 |
| 9 | BR9-11455-00-00 | SHAFT 1 Price: $194.99 |
| 10 | 93306-20335-00 | BEARING Price: $38.99 |
| 11 | 2S2-11531-10-00 | GEAR, BALANCE WEIGHT Price: $185.99 |
| 12 | 90170-14171-00 | NUT Price: $10.49 |
| 13 | 90215-14287-00 | WASHER, LOCK Price: $6.49 |
| 14 | 33D-11454-00-00 | WEIGHT 1 Price: $84.99 |
| 15 | 90149-06193-00 | SCREW Price: $2.55 |
| 16 | 33D-11464-00-00 | WEIGHT 2 Price: $95.99 |
| 17 | 90282-05034-00 | KEY, STRAIGHT Price: $10.49 |
| 18 | 90170-10013-00 | NUT Price: $13.49 |
| 19 | 90215-10009-00 | WASHER, LOCK Price: $16.49 |
| 20 | BR9-116A0-00-00 | PISTON ASSY Price: $215.99 |
| 21 | BR9-11631-00-00 | PISTON (STD) Price: $143.99 |
| 22 | 33D-11603-00-00 | PISTON RING SET (STD) Price: $69.99 |
| 23 | BR9-11633-10-00 | PIN, PISTON This part replaces BR9-11633-00-00. Price: $69.99 |
| 24 | 93450-19052-00 | CIRCLIP, INNER Price: $7.49 |
