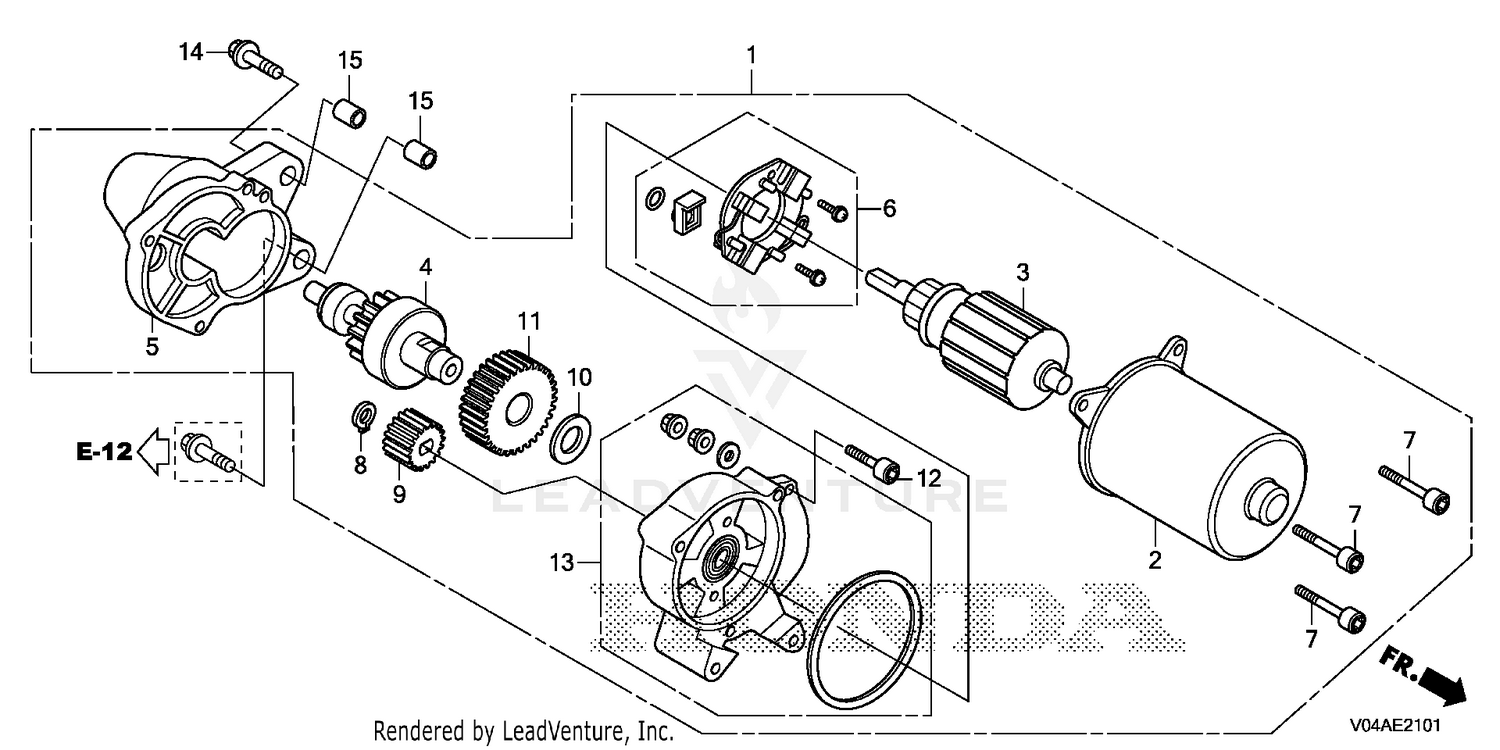

STARTER MOTOR (2)
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 31210-Z0V-H31 | STARTER MOTOR UNIT Price: $219.21 |
| 2 | 31211-Z7E-701 | HOUSING ASSY. Price: $71.92 |
| 3 | 31212-Z0V-701 | ARMATURE ASSY. Price: $48.60 |
| 4 | 31213-Z0V-701 | GEAR ASSY., DRIVE Price: $94.50 |
| 5 | 31214-Z0V-701 | CONE ASSY., NOSE Price: $72.44 |
| 6 | 31215-Z7E-701 | BOARD ASSY., BRUSH Price: $44.24 |
| 7 | 31218-Z7E-701 | SCREW B Price: $3.84 |
| 8 | 31222-Z7E-701 | RING, RETAINER Price: $4.26 |
| 9 | 31223-Z0V-701 | GEAR A Price: $27.44 |
| 10 | 31224-Z7E-701 | WASHER Price: $7.64 |
| 11 | 31225-Z0V-701 | GEAR B Price: $30.68 |
| 12 | 31226-Z0V-701 | SCREW C Price: $9.38 |
| 13 | 31230-Z0V-701 | BRACKET ASSY. Price: $63.26 |
| 14 | 90017-883-000 | SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 0636076). Price: $3.36 |
