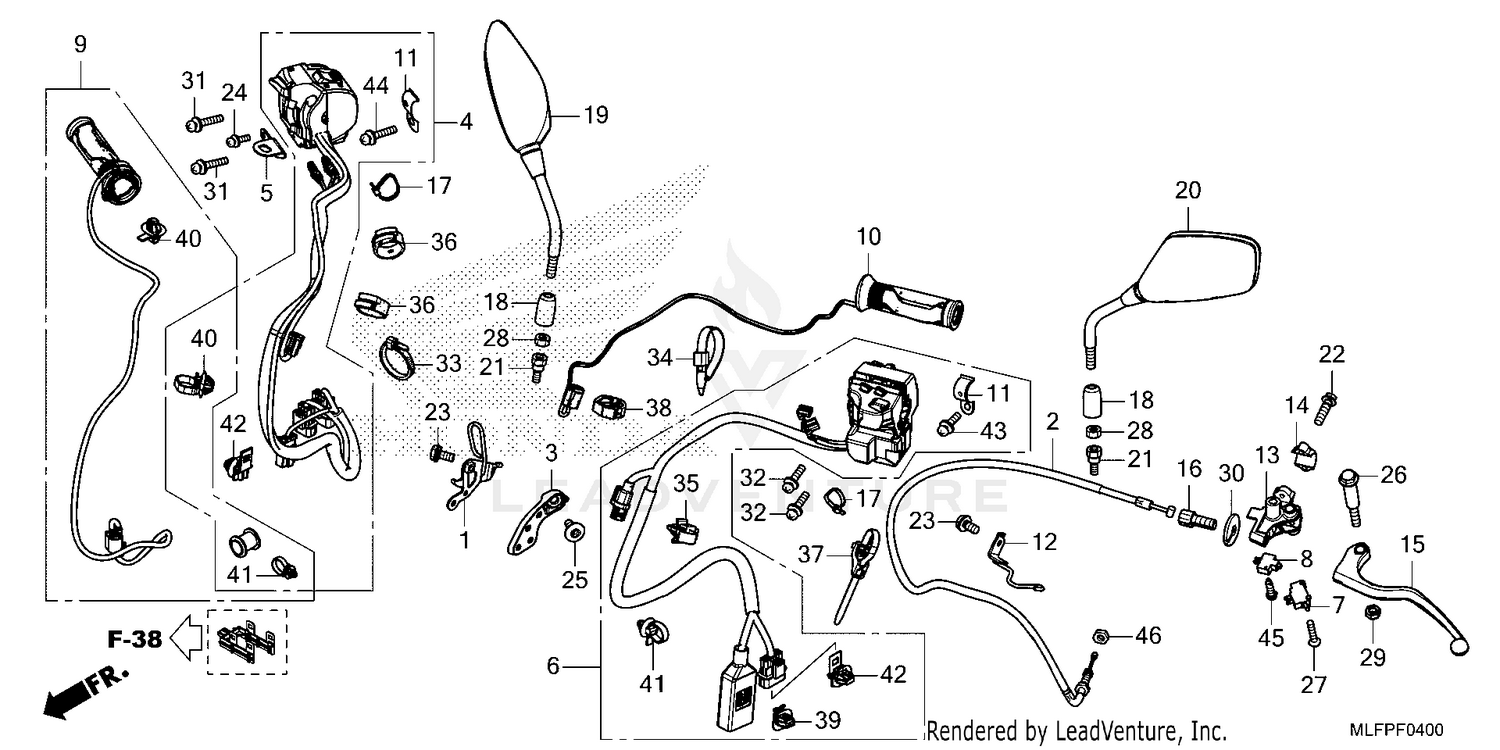

| Ref | Part Number | Description |
|---|
| 1 |
17925-MKS-E00 |
GUIDE, CABLE Price: $14.18 |
| 2 |
22870-MLF-E01 |
CABLE, CLUTCH (NOT AVAILABLE) Price: $21.29 |
| 3 |
32151-MKK-D00 |
STAY, CLIP Price: $9.76 |
| 4 |
35135-MLF-E81 |
SWITCH UNIT Price: $290.78 |
| 5 |
35138-MKS-E20 |
STAY, GRIP HEATER WIRE Price: $4.33 |
| 6 |
35200-MLF-A81 |
SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE) Price: $232.33 |
| 7 |
35330-MCJ-751 |
SWITCH ASSY., CLUTCH Price: $9.15 |
| 8 |
35330-MK5-003 |
SWITCH ASSY., CLUTCH Price: $21.53 |
| 9 |
35511-MKS-E21 |
HEATER UNIT, R. HANDLE Price: $96.85 |
| 10 |
35520-MLF-305 |
HEATER ASSY., L. (NOT AVAILABLE) Price: $113.73 |
| 11 |
37971-MKS-E01 |
PLATE A, SETTING Price: $5.09 |
| 12 |
53112-MJP-G50 |
GUIDE, CLUTCH CABLE Price: $12.35 |
| 13 |
53172-MKS-E00 |
BRACKET, L. HANDLE LEVER Price: $70.51 |
| 14 |
53174-KA3-730 |
HOLDER, L. LEVER BRACKET Price: $28.53 |
| 15 |
53178-MKS-E00 |
LEVER, L. HANDLEBAR Price: $45.91 |
| 16 |
53192-MCJ-000 |
BOLT, CABLE ADJUSTING Price: $10.27 |
| 17 |
83645-GG0-000 |
BAND, NYLON Price: $2.22 |
| 18 |
88130-MFG-D00 |
COVER, LOCK NUT Price: $1.96 |
| 19 |
88210-MLC-D00 |
MIRROR COMP R Price: $80.45 |
| 20 |
88220-MLC-D00 |
MIRROR COMP L Price: $80.45 |
| 21 |
90003-MW3-620 |
BOLT, ADAPTER (10MM) Price: $9.80 |
| 22 |
90021-GHB-670 |
BOLT, FLANGE (6X22) Price: $2.49 |
| 23 |
90030-GHB-620 |
BOLT, FLANGE (6X12) Price: $2.44 |
| 24 |
90110-MKS-E20 |
SCREW-WASHER (4X8) Price: $1.65 |
| 25 |
90114-MGE-D00 |
BOLT, SPECIAL (6X15) Price: $2.35 |
| 26 |
90117-MJP-G50 |
BOLT, L. HANDLE LEVER Price: $8.82 |
| 27 |
90124-MCJ-752 |
SCREW, FLAT (3X16) Price: $0.71 |
| 28 |
90201-MW3-620 |
NUT, HEX. (10MM) (LEFT HAND THREAD) Price: $5.53 |
| 29 |
90301-782-000 |
NUT, U (6MM) Price: $2.04 |
| 30 |
90321-MCJ-000 |
NUT, FIXING Price: $3.65 |
| 31 |
90508-MGE-D00 |
SCREW-WASHER (5X25) Price: $1.47 |
| 32 |
90508-MGS-D30 |
SCREW-WASHER (5X16) Price: $2.13 |
| 33 |
90650-KV6-003 |
BAND, WIRE (Honda Code 2687788) Price: $3.91 |
| 34 |
90652-KT1-771 |
BAND, WIRE (BLACK) Price: $5.62 |
| 35 |
90672-SA0-003 |
STRAP, CABLE (118MM) (BLACK) (Honda Code 1170653) Price: $7.85 |
| 36 |
90683-KJ2-003 |
CLIP, WIRE HARNESS Price: $4.47 |
| 37 |
90690-GHB-611 |
CLIP, HARNESS BAND (25MM) Price: $2.49 |
| 38 |
90690-MEF-800 |
CLAMP, HARNESS Price: $1.49 |
| 39 |
91533-MGS-D30 |
CLIP, CONNECTOR (BLACK) Price: $1.53 |
| 40 |
91540-S7S-003 |
CLIP, HARNESS BAND (157.7MM) (BLACK) Price: $6.08 |
| 41 |
91541-S0A-003 |
CLIP, HARNESS BAND (145MM) (BLACK) Price: $4.15 |
| 42 |
91565-SEL-003 |
CLIP, CONNECTOR (BLACK) (Honda Code 7386865) Price: $4.62 |
| 43 |
93892-05010-08 |
SCREW-WASHER (5X10) Price: $1.20 |
| 44 |
93892-05025-08 |
SCREW-WASHER (5X25) Price: $1.40 |
| 45 |
93901-32320 |
SCREW, TAPPING (3X12) Price: $0.95 |
