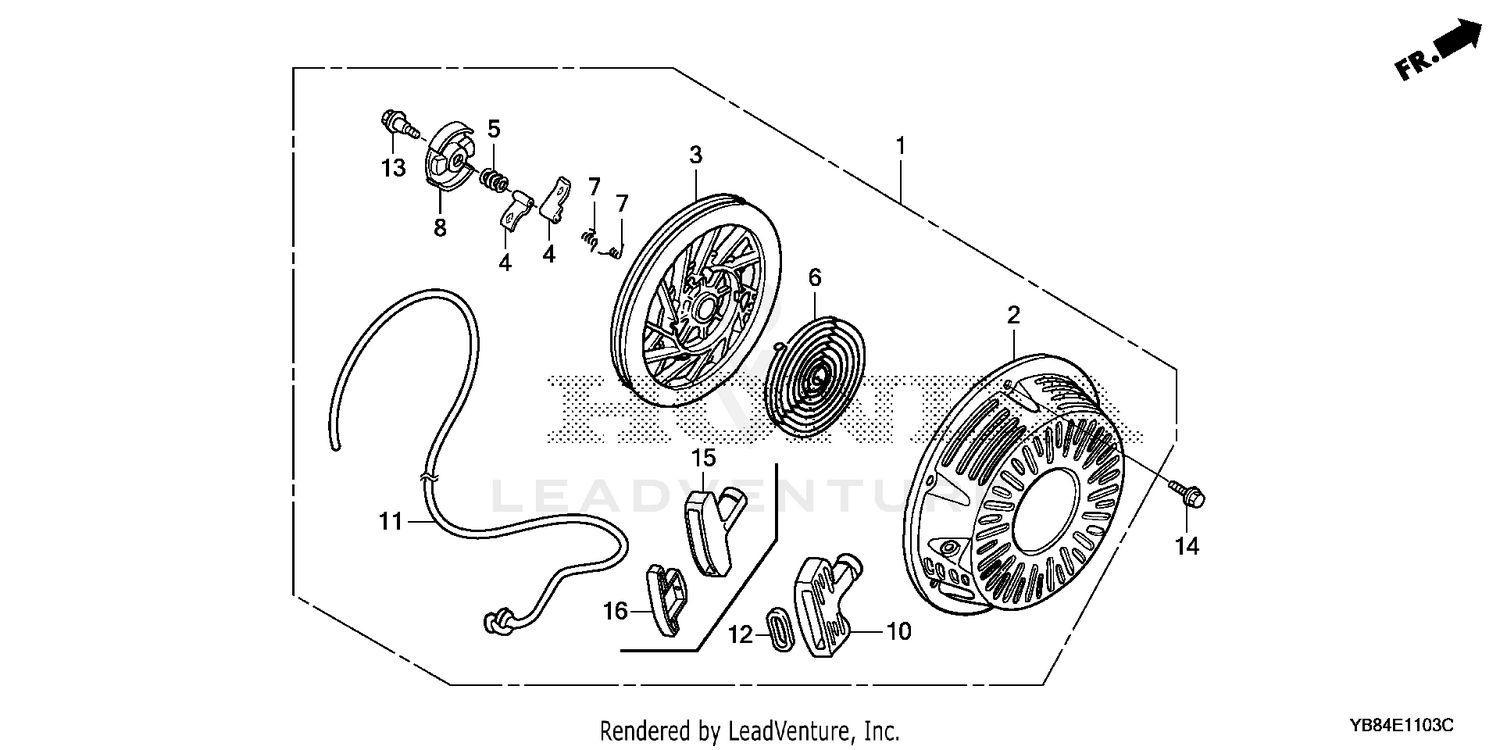

| Ref | Part Number | Description |
|---|
| 1 |
28400-Z5K-305ZA |
STARTER ASSY., RECOIL *R280* (COO)(FOR U.S.A.) (POWER RED) Price: $33.67 |
| 2 |
28410-ZE2-W01ZN |
SEE PART DETAILS - PRI; CASE, RECOIL STARTER *R280* (POWER RED) Price: $134.82 |
| 3 |
28421-ZE2-W01 |
PULLEY, RECOIL STARTER Price: $42.32 |
| 4 |
28422-ZE2-W01 |
RATCHET, STARTER (Honda Code 3678877). Price: $7.54 |
| 5 |
28441-ZE2-W01 |
SPRING, FRICTION (Honda Code 3678885). Price: $6.06 |
| 6 |
28442-ZE2-W01 |
SPRING, STARTER RETURN (Honda Code 3678893). Price: $18.54 |
| 7 |
28443-ZE2-W01 |
SPRING, RATCHET (Honda Code 3678901). Price: $5.28 |
| 8 |
28444-ZE2-W01 |
RETAINER, SPRING (Honda Code 3678919). Price: $14.56 |
| 11 |
28462-ZE2-W11 |
ROPE, RECOIL STARTER (#5X55") Price: $11.04 |
| 13 |
90004-ZE2-W01 |
SCREW, CENTER (Honda Code 3679024). Price: $4.08 |
| 14 |
95701-06010-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876). Price: $1.58 |
| 15 |
28461-Z5T-003 |
SEE PART DETAILS - PRI; GRIP, STARTER Price: $10.52 |
