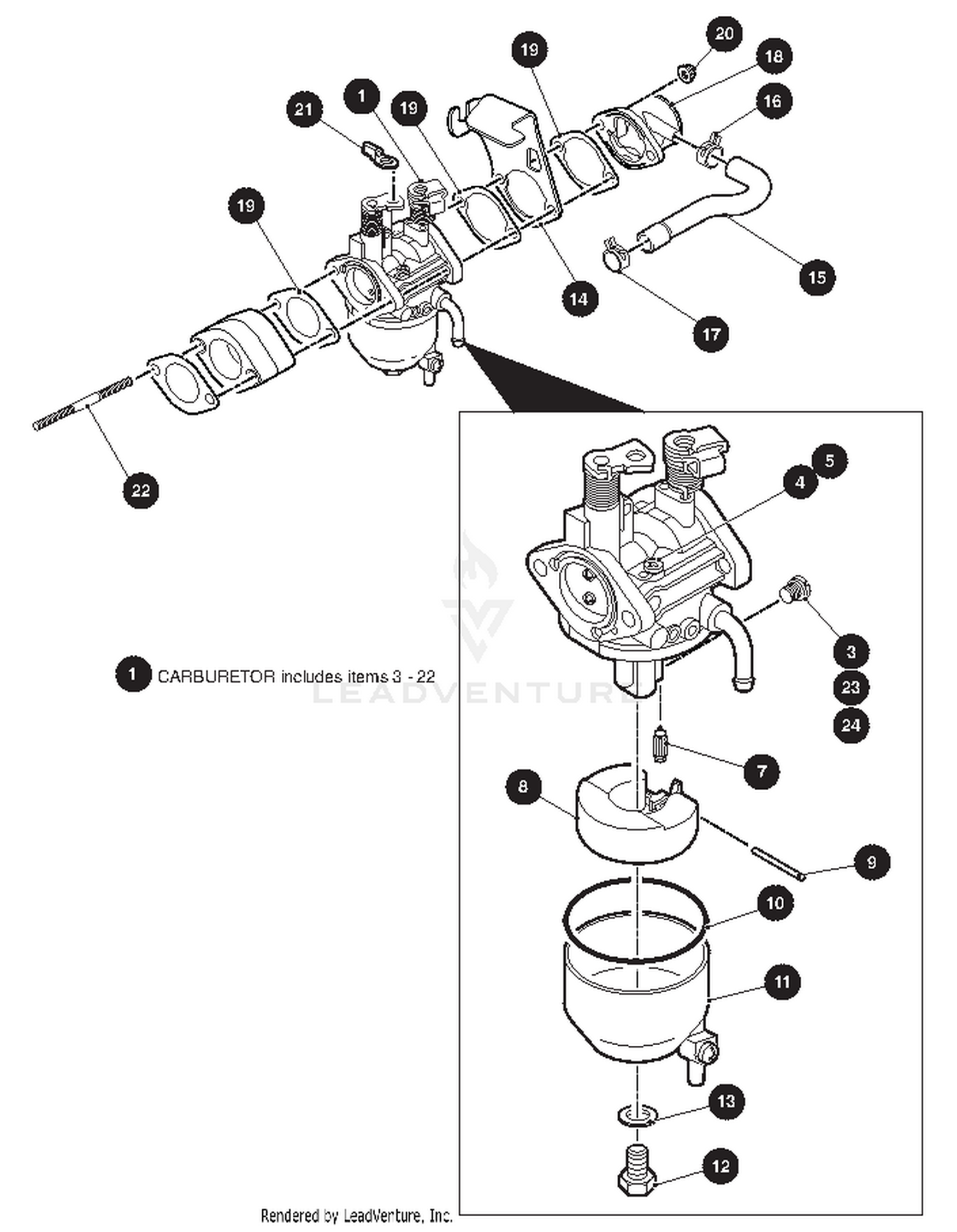

| Ref | Part Number | Description |
|---|
| 1 |
607955 |
CARBURETOR Price: $465.99 |
| 3 |
607956 |
MAIN JET,#106 Not Available Price: |
| 4 |
607957 |
PILOT JET,#52 Price: $101.19 |
| 5 |
603585 |
PILOT JET PLUG Not Available Price: |
| 7 |
603586 |
NEEDLE VALVE Price: $84.99 |
| 8 |
603587 |
FLOAT Price: $85.99 |
| 9 |
603588 |
FLOAT PIN Price: $7.32 |
| 10 |
603589 |
FLOAT CHAMBER GASKET Price: $30.99 |
| 11 |
603590 |
FLOAT CHAMBER ASSY Price: $142.41 |
| 12 |
603592 |
CHAMBER PLUG Price: $39.24 |
| 13 |
603591 |
CHAMBER GASKET Price: $5.99 |
| 14 |
603583 |
CHOKE CABLE BRACKET Price: $8.99 |
| 15 |
603598 |
BREATHER TUBE Price: $22.99 |
| 16 |
603596 |
INTAKE PIPE CLAMP Price: $3.99 |
| 17 |
603597 |
CYLINDER HEAD CLAMP Price: $4.99 |
| 18 |
603594 |
INTAKE PIPE Price: $19.99 |
| 19 |
603593 |
CHOKE GASKET Price: $4.99 |
| 20 |
603595 |
HEX NUT, M6X1.0 Price: $11.99 |
| 21 |
608023 |
BUSHING Price: $11.99 |
| 22 |
603584 |
STUD BOLT Price: $12.99 |
| 23 |
607684 |
MAIN JET,#102 Price: $25.99 |
