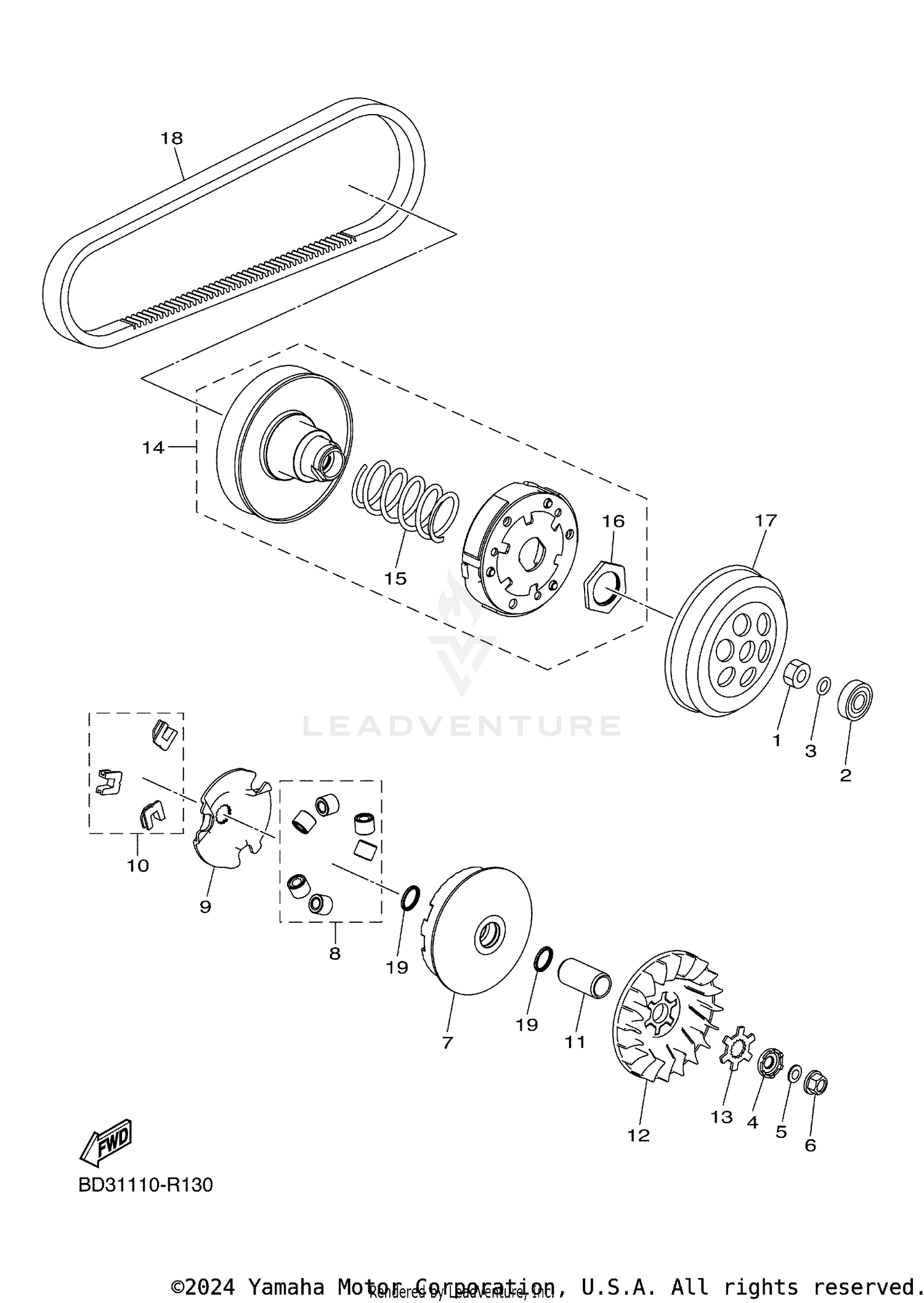

CLUTCH
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BD3-E4594-10-00 | NUT Price: $16.49 |
| 2 | BD3-E7156-00-00 | BEARING 1 Price: $50.99 |
| 3 | BD3-E3769-00-00 | O-RING Price: $2.85 |
| 4 | BD3-E5657-00-00 | CLUTCH, ONEWAY Price: $13.49 |
| 5 | BD3-F3427-00-00 | WASHER Price: $5.99 |
| 6 | BD3-F3834-10-00 | NUT 2 Price: $4.20 |
| 7 | BD3-E7621-00-00 | SHEAVE, PRIMARY SLIDING Price: $79.99 |
| 8 | BYS-E7632-00-00 | WEIGHT Price: $76.99 |
| 9 | BD3-E7623-00-00 | CAM Price: $25.99 |
| 10 | BD3-E7625-00-00 | BUSH Price: $16.49 |
| 11 | BD3-E7637-00-00 | BUSH Price: $53.99 |
| 12 | BD3-E7611-00-00 | SHEAVE, PRIMARY FIXED Price: $45.99 |
| 13 | BD3-E7646-00-00 | WASHER, LOCK Price: $8.49 |
| 14 | BD3-E6620-10-00 | CLUTCH CARRIER ASSY Price: $234.99 |
| 15 | BD3-E7683-00-00 | SPRING, SECONDARY Price: $31.99 |
| 16 | BD3-E4595-10-00 | NUT Price: $15.49 |
| 17 | BD3-E6611-00-00 | CLUTCH HOUSING COMP. Price: $147.99 |
| 18 | BD3-E7641-00-00 | V-BELT Price: $123.99 |
