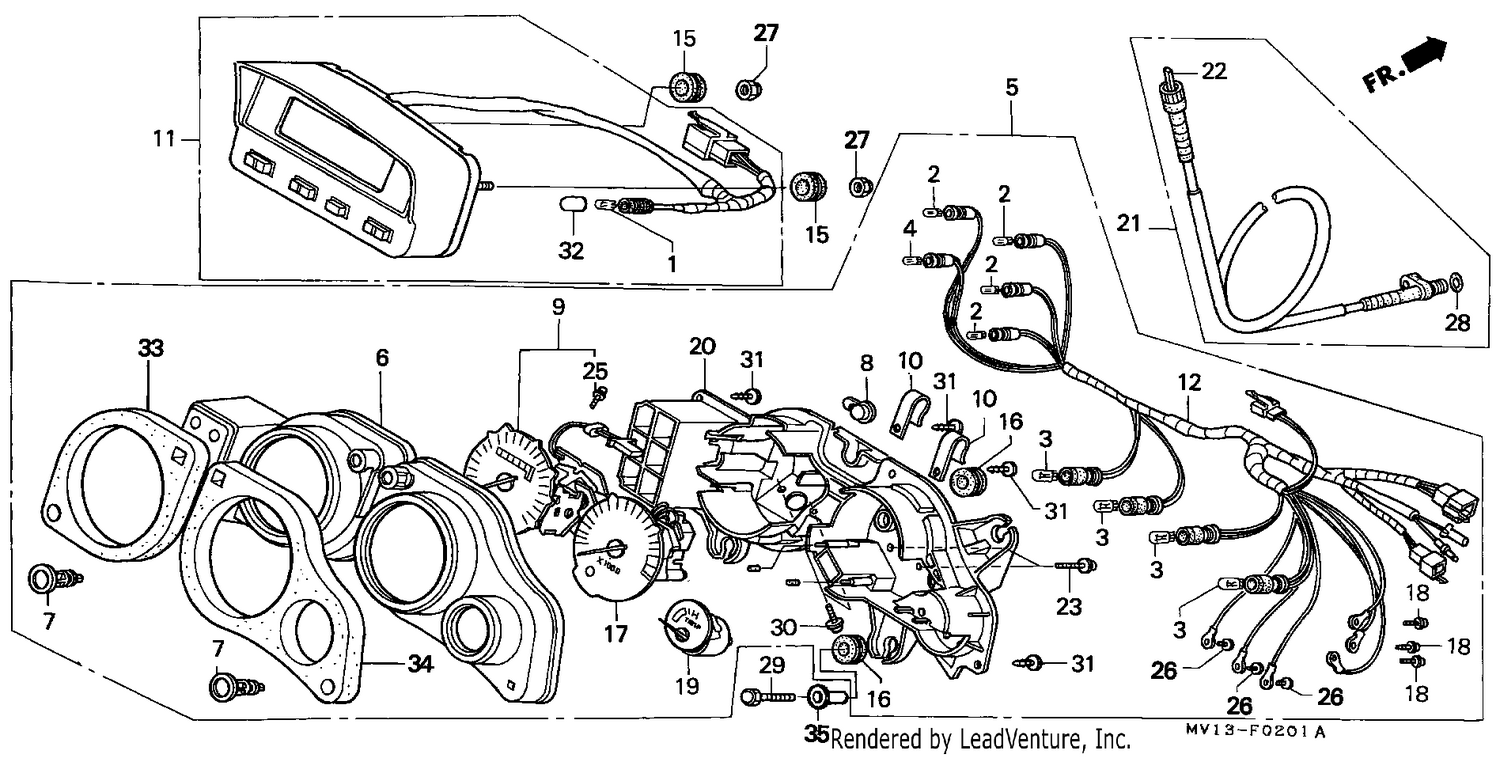

METER (XRV750N)

METER (XRV750N)

Parts (31)

RefPart NumberDescription
1 34908GE0701 BULB, WEDGE BASE (12V/2W) Price: Call Us
2 34908KM1671 BULB, WEDGE BASE (T6.5) (12V 3W) Price: Call Us
3 34908MB9871 BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY) Price: Call Us
4 34908MG9951 BULB, WEDGE BASE (12V 1.7W) Price: Call Us
5 37100MV1941 METER ASSY., COMBINATION (KPH) Price: Call Us
6 37110MV1941 CASE ASSY., UPPER Price: Call Us
7 37112MS8003 CLIP, METER PANEL Price: Call Us
8 37113ML7008 CAP Price: Call Us
9 37200MV1941 SPEEDOMETER ASSY. (KPH) Price: Call Us
10 37215MV1941 CLAMP Price: Call Us
11 37220MV1941 METER ASSY., DIGITAL TRIP Price: Call Us
12 37222MV1941 SOCKET COMP. Price: Call Us
15 37242435700 RUBBER, SPEEDOMETER MOUNTING Price: Call Us
16 37244MB6631 RUBBER, METER MOUNTING Price: Call Us
17 37250MV1941 TACHOMETER ASSY. Price: Call Us
18 37305KE5008 SCREW-WASHER, 3X22 Price: Call Us
19 37400MV1941 METER ASSY., TEMPERATURE Price: Call Us
20 37610MV1941 CASE ASSY., LOWER Price: Call Us
21 44830MV1000 CABLE ASSY., SPEEDOMETER Price: Call Us
22 44831443720 CABLE, SPEEDOMETER INNER Price: Call Us
23 90032ML7671 SCREW, TAPPING, 4X36 Price: Call Us
25 90102MT8008 SCREW-WASHER, 3X12 Price: Call Us
26 90108GN2008 SCREW-WASHER, 3X10 Price: Call Us
27 90215GM0000 NUT, CAP, 6MM Price: Call Us
28 91301027000 O-RING, 6.8X1.9 Price: Call Us
29 92501060250G BOLT, CAP, 6X25 Price: Call Us
30 938930401210 SCREW-WASHER, 4X12 Price: Call Us
31 9391324420 SCREW, TAPPING, 4X16 (PO) Price: Call Us
32 34909MV1941 CAP, BULB Price: Call Us
33 37205MV1941 PANEL, SPEEDOMETER Price: Call Us
34 37241MV1941 PANEL, TACHOMETER & TEMPERATURE METER Price: Call Us
