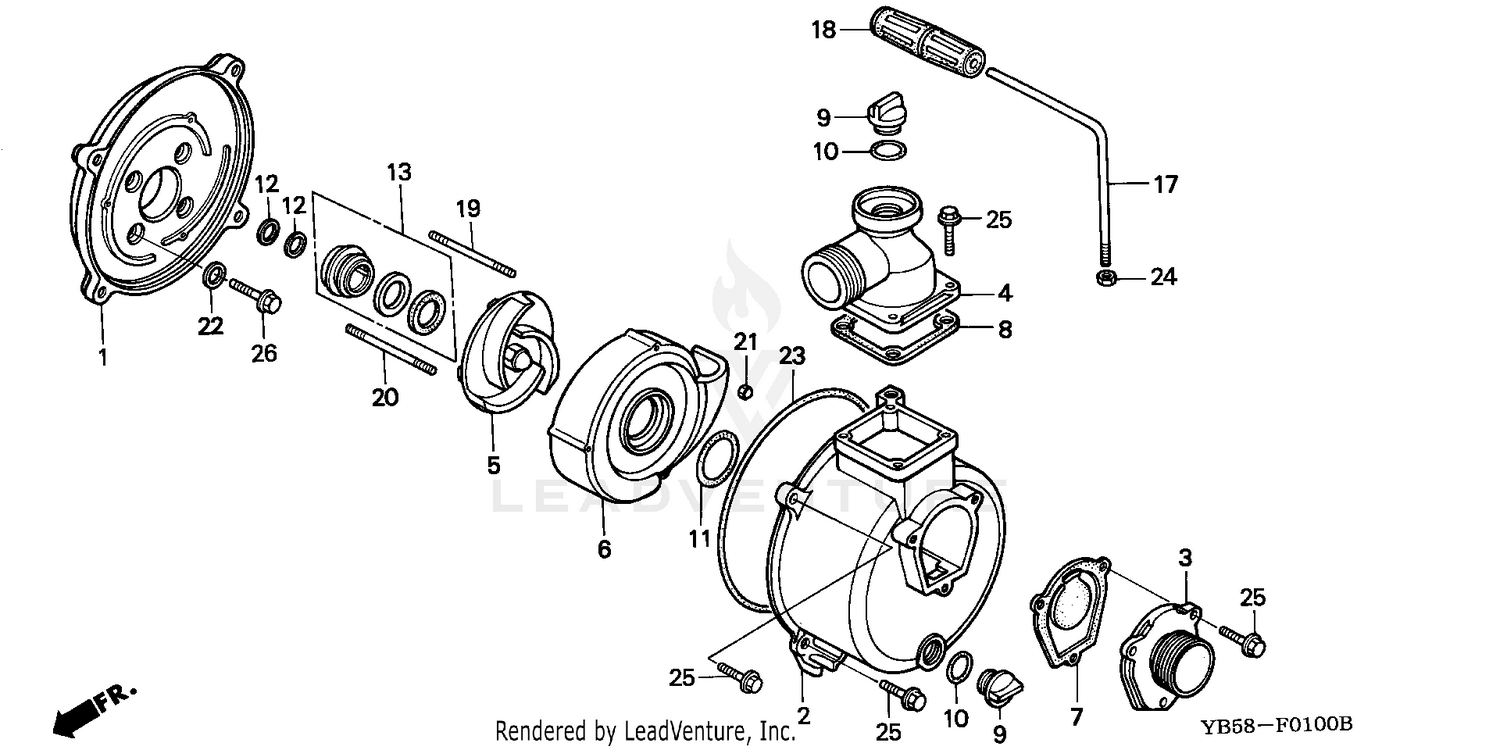

| Ref | Part Number | Description |
|---|
| 1 |
78102-YB3-020 |
COVER, CASING Price: Call Us |
| 2 |
78101-YB3-030 |
CASING Price: Call Us |
| 3 |
78103-YB3-630 |
PIPE, INLET Price: $72.48 |
| 4 |
78104-YB3-631 |
PIPE, OUTLET Price: $145.20 |
| 5 |
78106-YB3-000 |
IMPELLER Price: $12.28 |
| 6 |
78107-YB3-K10 |
SEE PART DETAILS - PRI; CASE, VOLUTE Price: $25.12 |
| 7 |
78110-YB3-000 |
VALVE, IN. Price: $22.46 |
| 8 |
78114-YB3-000 |
GASKET, OUTLET Price: $5.42 |
| 9 |
78117-YB7-020 |
SEE PART DETAILS - PRI; CAP, FILLER Price: $13.86 |
| 10 |
78118-YB0-004 |
SEE PART DETAILS - PRI; RING, SEAL (B) This part replaces 78118-YB0-003. Price: $9.64 |
| 11 |
78118-YB3-004 |
O-RING (49X5.7) (NOK) Price: $9.80 |
| 12 |
78122-YB3-000 |
SHIM, ADJUSTER Price: $4.86 |
| 13 |
78130-YB4-901 |
SEE PART DETAILS - PRI; SEAL ASSY., MECHANICAL WATER Price: $112.98 |
| 17 |
78206-YB3-611 |
HANDLE Price: $30.64 |
| 18 |
78207-YB3-611 |
GRIP, HANDLE Price: $15.12 |
| 19 |
90034-402-000 |
BOLT, STUD (6X50) Price: $5.64 |
| 20 |
90043-YB4-000 |
BOLT, STUD (6X50) Price: $3.98 |
| 21 |
90281-YB4-000 |
NUT, CAP (6MM) Price: $2.32 |
| 22 |
90474-333-000 |
WASHER, SEALING (8MM) Price: $4.98 |
| 23 |
91351-YB3-003 |
O-RING (217.5X3.5) (ARAI) Price: $18.16 |
| 24 |
94001-14000-0S |
NUT, HEX. (14MM) Price: $2.62 |
| 25 |
95701-08025-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X25) (Honda Code 2545325). Price: $2.24 |
