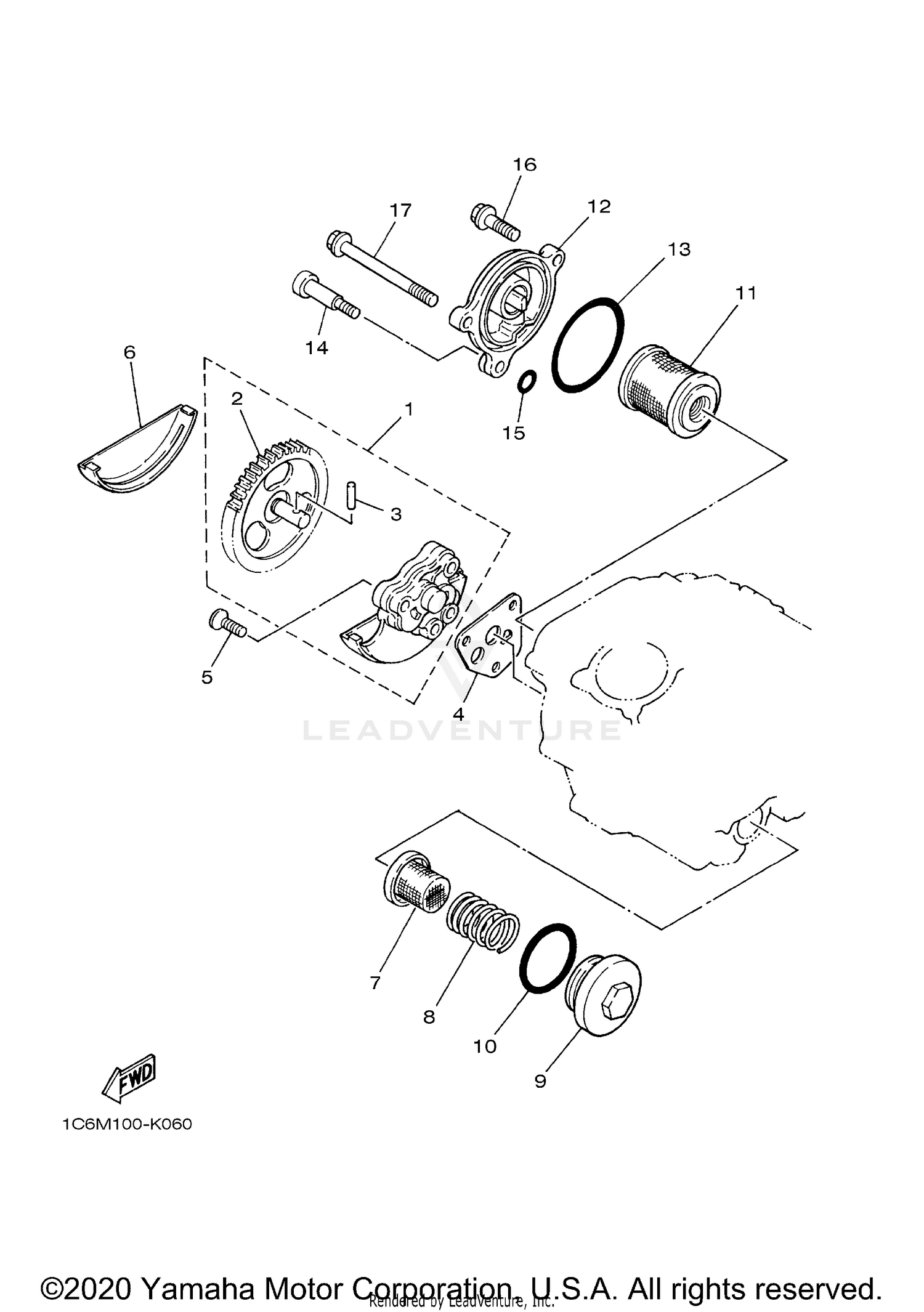

| Ref | Part Number | Description |
|---|
| 1 |
5H0-13300-02-00 |
OIL PUMP ASSY Price: $179.99 |
| 2 |
5H0-13326-01-00 |
GEAR, PUMP DRIVEN 2 (45T) Price: $43.99 |
| 3 |
93603-12030-00 |
PIN, PLUNGER Price: $2.80 |
| 4 |
3GD-13329-00-00 |
GASKET, PUMP COVER This part replaces 4BE-13329-01-00. Price: $8.49 |
| 5 |
98707-06030-00 |
SCREW, FLAT HEAD This part replaces 9870M-06030-00. Price: $7.99 |
| 6 |
5H0-13327-00-00 |
COVER, PUMP GEAR Price: $35.99 |
| 7 |
51Y-13411-00-00 |
STRAINER, OIL Price: $41.99 |
| 8 |
90501-18576-00 |
SPRING, COMPRESSION Price: $9.49 |
| 9 |
5H0-15351-00-00 |
PLUG, DRAIN This part replaces 4VW-E5351-00-00. Price: $34.99 |
| 10 |
93210-347A1-00 |
O-RING Price: $8.49 |
| 11 |
5H0-13440-09-00 |
ELEMENT ASSY, OIL CLEANER This part replaces 5H0-13440-00-00. Price: $11.49 |
| 12 |
3AW-13447-01-00 |
COVER, OIL ELEMENT This part replaces 4VW-E3447-01-00. Price: $20.99 |
| 13 |
93210-54175-00 |
O-RING Price: $13.99 |
| 14 |
90109-065G0-00 |
BOLT Price: $9.49 |
| 15 |
93210-07135-00 |
O-RING Price: $6.99 |
| 16 |
95027-06025-00 |
BOLT, FLANGE This part replaces 9502M-06025-00. Price: $4.16 |
