Parts Catalog

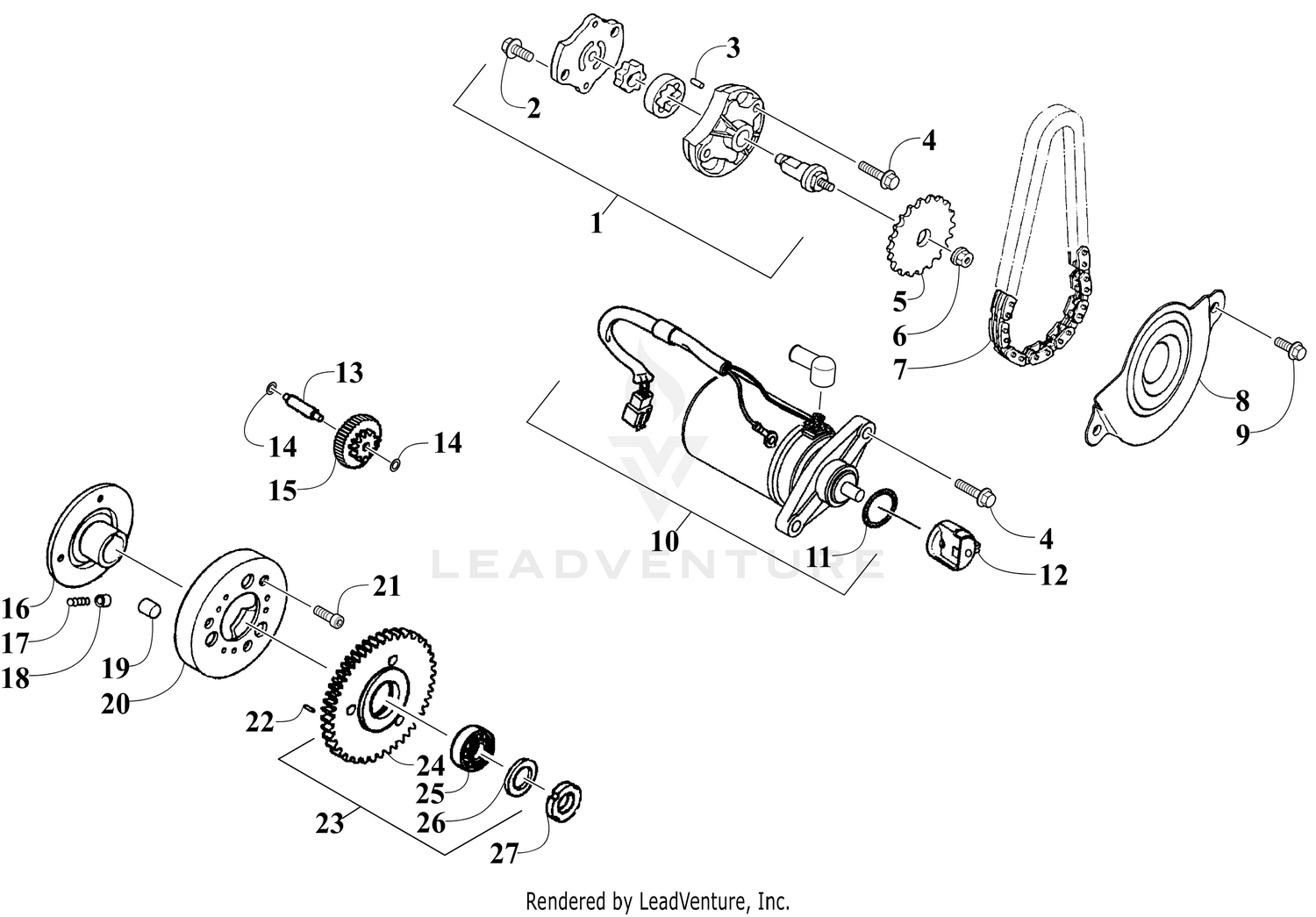

STARTER MOTOR AND OIL PUMP ASSEMBLY [302056]

Parts (23)

Ref	Part Number	Description
2	3307-201	SCREW PAN 3X10 (G) Price: $3.14
3	3304-144	PIN DOWEL 4*6.5 Price: $1.56
4	3303-384	BOLT FLANGE SH 6*25 Price: $0.93
5	3303-046	SPRKT OIL PUMP DRIVEN **9000 C.2000.04 Price: $14.08
6	3304-654	Nut, Flange Price: $1.27
7	3303-047	CHAIN OIL PUMP Price: $37.75
8	3303-051	SEPARATOR OIL **9000 C.98.11.16. Price: $4.08
9	3303-381	BOLT FLANGE SH 6*12 Price: $0.93
11	3303-604	O-RING Price: $2.03
12	3303-130	HOLDER COMP STARTER REDUCTION **9000 Price: $23.53
13	3303-110	SHAFT START REDUCTION **9000 C.97.09.18 Price: $23.53
14	3303-282	WASHER 24*8.5 **0000 C.97.07.26. Price: $1.41
15	3303-109	GEAR COMP ST REDUCTION **9000 C.97.09.18 Price: $75.55
16	3303-115	BOSS STARTER CLUTCH **9000 C.97.09.18. Price: $68.95
17	3303-113	SPG ROLLER ST CLUTCH **0000 C.97.09.18 Price: $1.87
18	3303-114	STARTING ROLLER SPG **9000 C.97.09.18. Price: $2.18
19	3303-293	ROLLER 10.2*11.5 **9000 C.97.07.26. Price: $3.76
20	3303-112	OUTER COMP ST CLUTCH **9000 C.97.09.18. Price: $84.95
21	3307-852	SOCKET BOLT Price: $4.23
22	3303-395	ROLLER 6*10 Price: $2.03
24	3306-803	GEAR COMP STARTER DRIVEN Price: $64.95
25	3303-292	BRG BALL RADIAL 6005-2NG/25*47*12 Price: $40.95
26	3303-285	CIR CLIP B 1I 14 Price: $5.02
