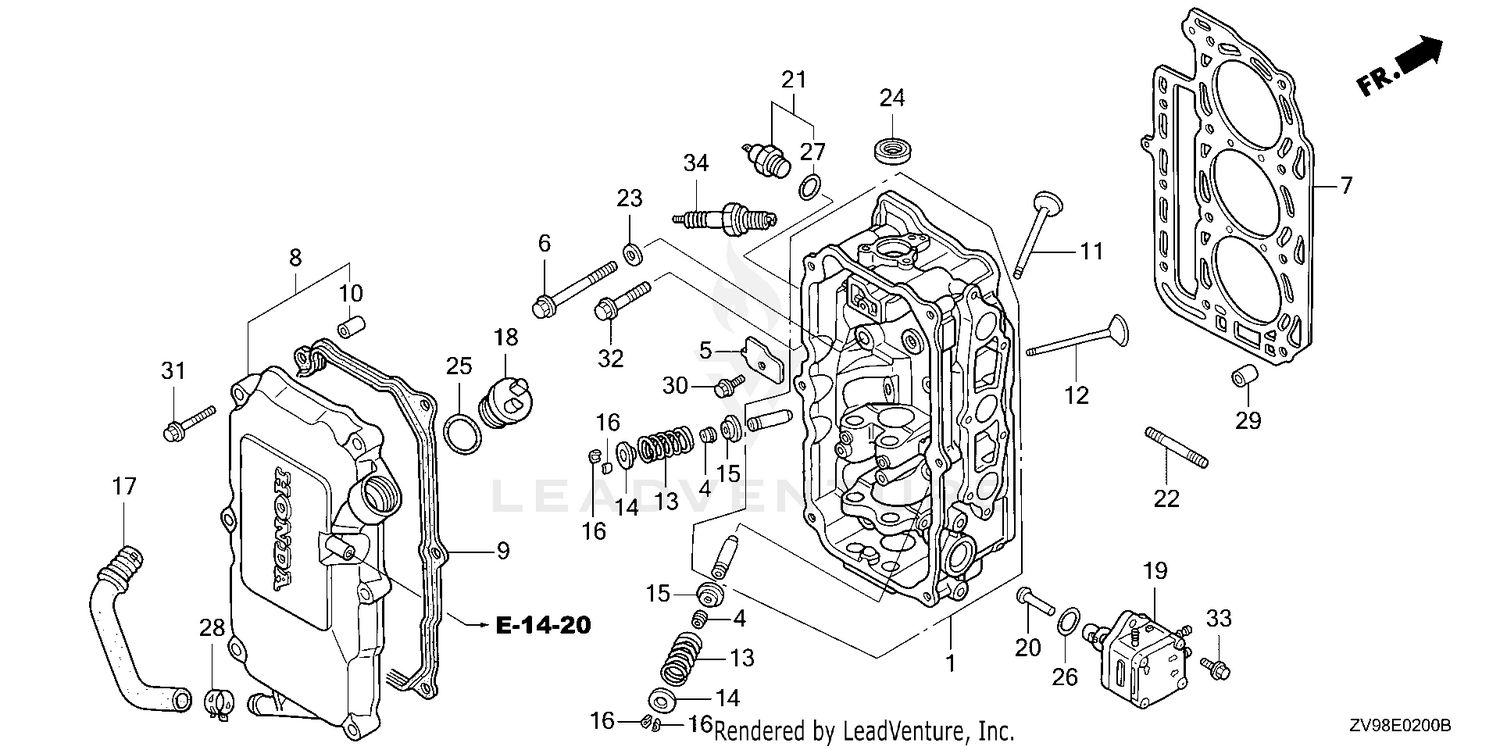

| Ref | Part Number | Description |
|---|
| 1 |
04101-ZV7-505ZA |
CYLINDER HEAD *NH8* (DARK GRAY) Price: $1,030.87 |
| 4 |
12209-KL4-005 |
SEAL, VALVE STEM (NOK) Price: $10.80 |
| 5 |
12212-ZV7-000 |
PLATE, OIL CHAMBER Price: $9.48 |
| 6 |
12228-ZV7-000 |
BOLT, FLANGE (8X83) Price: $5.98 |
| 7 |
12251-ZV7-004 |
GASKET, CYLINDER HEAD Price: $109.60 |
| 8 |
12310-ZV7-040 |
COVER, CYLINDER HEAD This part replaces 12310-ZV7-020. Price: $130.78 |
| 9 |
12312-ZV7-010 |
SEE PART DETAILS - PRI; GASKET, HEAD COVER Price: $27.38 |
| 10 |
12314-ZV5-300 |
COLLAR, HEAD COVER Price: $6.62 |
| 11 |
14711-ZV4-000 |
VALVE, IN. Price: $17.14 |
| 12 |
14721-ZV7-000 |
VALVE, EX. Price: $38.12 |
| 13 |
14751-ZV4-000 |
SPRING, VALVE Price: $3.48 |
| 14 |
14771-ZV1-000 |
RETAINER, VALVE SPRING Price: $8.60 |
| 15 |
14775-028-010 |
SEAT, VALVE SPRING Price: $5.62 |
| 16 |
14781-107-003 |
COTTER, VALVE (SANKO) Price: $3.36 |
| 17 |
06154-ZV7-000 |
TUBE SET, OIL Price: $22.44 |
| 18 |
15611-ZV4-000 |
CAP, OIL Price: $10.84 |
| 19 |
16700-ZW1-004 |
SEE PART DETAILS - PRI; PUMP ASSY., FUEL This part replaces 16700-ZV5-003. Price: $155.12 |
| 20 |
16716-ZV5-000 |
LIFTER, FUEL PUMP Price: $12.60 |
| 21 |
37760-ZV7-013 |
SEE PART DETAILS - PRI; SWITCH ASSY., THERMOSTAT Price: $51.98 |
| 22 |
90006-ZV5-000 |
BOLT, STUD (6X28) Price: $2.64 |
| 23 |
90405-ZZ5-M01 |
WASHER, PLAIN (8MM) This part replaces 90405-ZV5-010. Price: $2.68 |
| 24 |
91202-KJ9-003 |
OIL SEAL (20X32X6) Price: $6.58 |
| 25 |
91301-805-000 |
SEE PART DETAILS - PRI; O-RING (26X2.7) (Honda Code 0065185). Price: $5.00 |
| 26 |
91351-MG7-003 |
SEE PART DETAILS - PRI; O-RING (20.8X2.4) Price: $3.42 |
| 27 |
91307-PH7-660 |
SEE PART DETAILS - PRI; O-RING (13.5X1.4) (Honda Code 2514651). Price: $3.84 |
| 28 |
90601-ZV3-030 |
SEE PART DETAILS - PRI; CLAMP, TUBE (D17) Price: $3.56 |
| 29 |
94301-10120 |
SEE PART DETAILS - PRI; PIN, DOWEL (10X12) Price: $3.10 |
| 30 |
95701-06012-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277. Price: $2.04 |
| 31 |
95701-06035-02 |
BOLT, FLANGE (6X35) Price: $1.36 |
| 32 |
95701-08040-02 |
BOLT, FLANGE (8X40) Price: $1.82 |
| 33 |
96001-06020-02 |
BOLT, FLANGE (6X20) Price: $1.64 |
| 34 |
98069-5771P |
SPARK PLUG (DR7EA) (NGK) Price: $2.98 |
