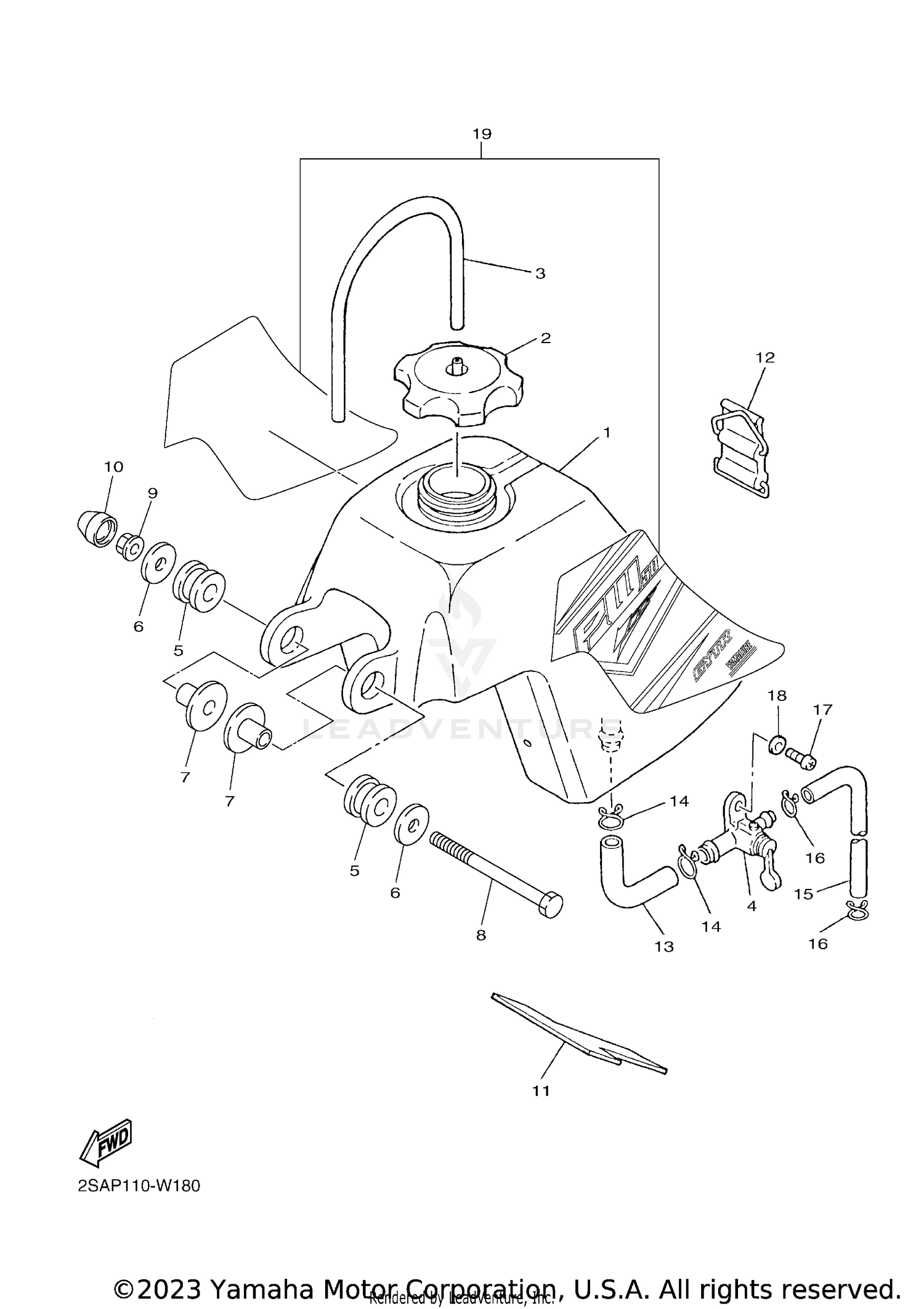

FUEL TANK
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5PG-24110-00-00 | FUEL TANK COMP. Price: $267.99 |
| 2 | 2FG-24610-10-00 | CAP ASSY Price: $70.99 |
| 3 | 5RB-24315-00-00 | PIPE 5 This part replaces 90445-09005-00. Price: $8.49 |
| 4 | 4X4-24500-11-00 | FUEL COCK ASSY 1 This part replaces 4X4-24500-10-00. Price: $32.99 |
| 5 | 90480-18290-00 | GROMMET Price: $9.49 |
| 6 | 90201-06747-00 | WASHER, PLATE Price: $9.49 |
| 7 | 90387-077F4-00 | COLLAR Price: $10.49 |
| 8 | 97017-06090-00 | BOLT This part replaces 97007-06090-00. Price: $3.45 |
| 9 | 95707-06500-00 | NUT, FLANGE Price: $1.00 |
| 10 | 5PG-2467E-00-00 | CAP Price: $8.49 |
| 11 | 3R0-24181-00-00 | DAMPER, LOCATING 1 Price: $9.49 |
| 12 | 59V-24173-00-00 | BAND, TANK FITTING 1 Price: $19.99 |
| 13 | 5PG-24311-00-00 | PIPE, FUEL 1 Price: $28.99 |
| 14 | 90467-12052-00 | CLIP Price: $10.49 |
| 15 | 90445-09029-00 | HOSE This part replaces 90445-09028-00. Price: $26.99 |
| 16 | 90467-08003-00 | CLIP, SCISSOR Price: $11.49 |
| 17 | 98507-06010-00 | SCREW, PAN HEAD Price: $3.85 |
| 18 | 92907-06600-00 | WASHER, PLATE Price: $1.00 |
