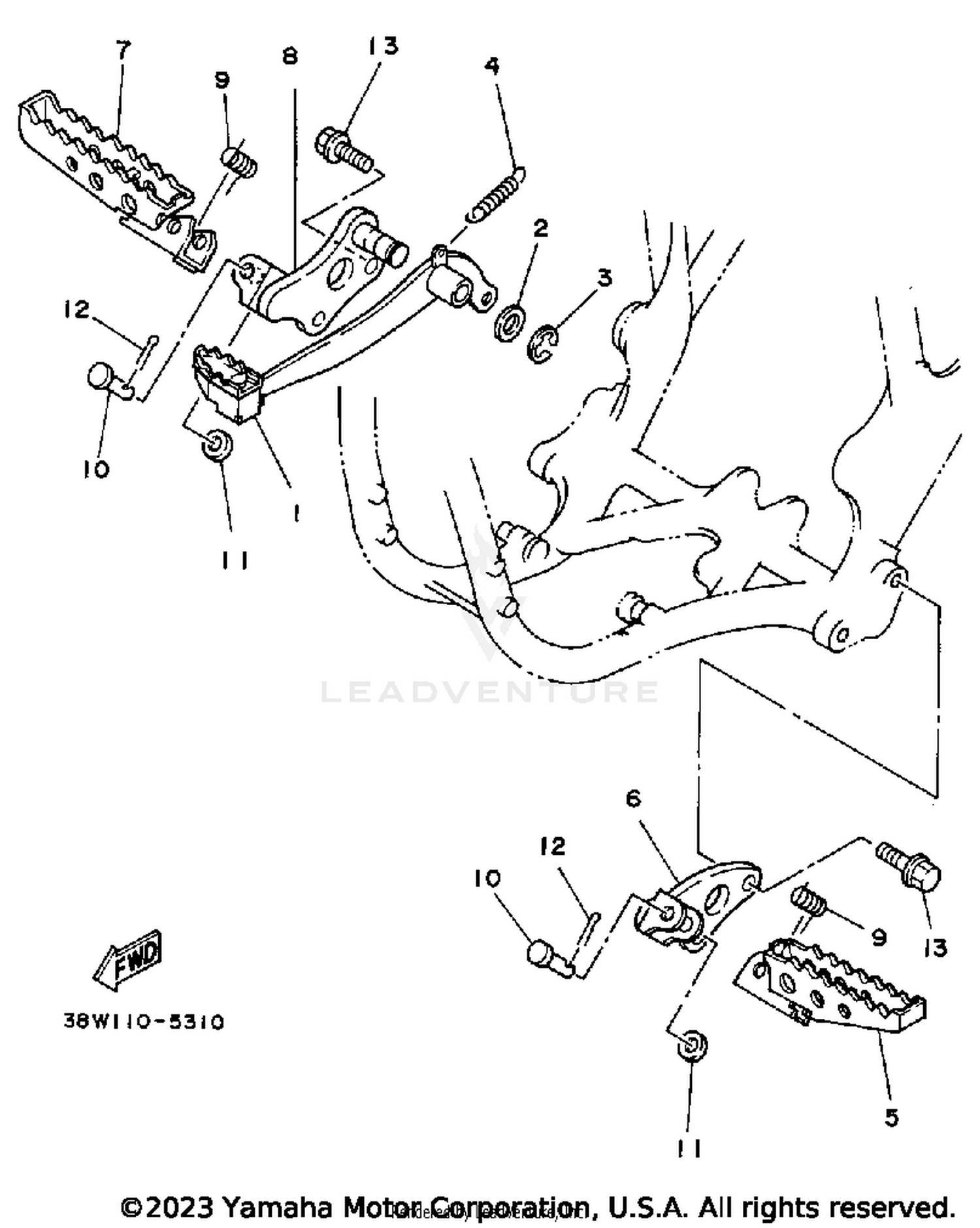

STAND
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 38W-27200-00-00 | PEDAL, BRAKE Price: $40.46 |
| 2 | 90201-15797-00 | WASHER, PLATE Price: $10.49 |
| 3 | 93430-12008-00 | CIRCLIP, E-TYPE Price: $9.49 |
| 4 | 90506-20193-00 | SPRING, TENSION Price: $16.49 |
| 5 | 38W-27411-00-00 | FOOTREST 1 Price: $52.99 |
| 6 | 38W-27412-00-00 | BRACKET, FOOTREST 1 Price: $29.99 |
| 7 | 38W-27421-00-00 | FOOTREST 2 Price: $52.99 |
| 8 | 38W-27422-00-00 | BRACKET, FOOTREST 2 Price: $54.99 |
| 9 | 90508-26672-00 | SPRING, TORSION Price: $3.00 |
| 10 | 90240-10101-00 | PIN, CLEVIS Price: $13.49 |
| 11 | 90201-10119-00 | WASHER, PLATE Price: $1.00 |
| 12 | 91490-25020-00 | PIN. COTTER This part replaces 91401-25020-00. Price: $3.45 |
