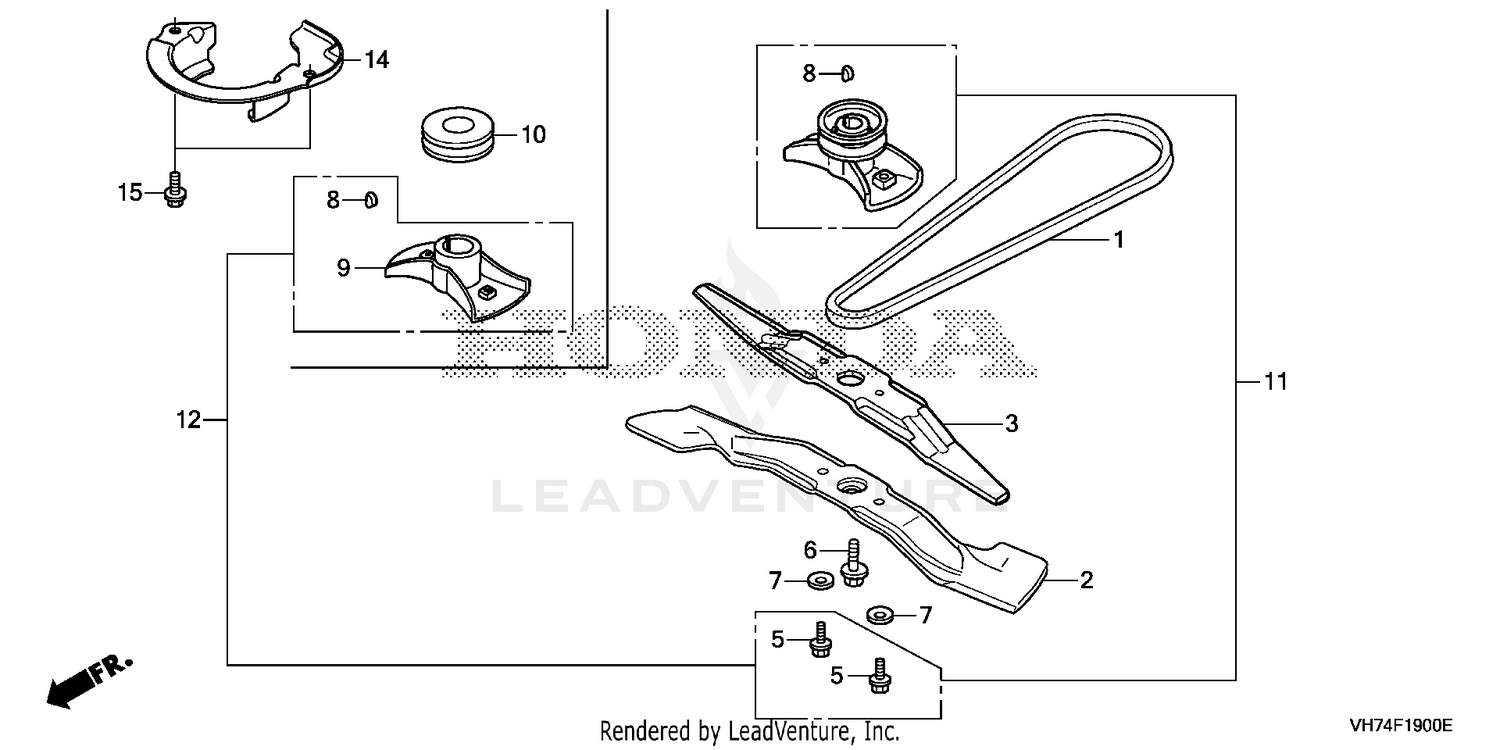

ROTARY BLADE (1)
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 22431-VH7-T31 | V-BELT (3L-38.6) Price: $15.46 |
| 2 | 72511-VH7-000 | BLADE, ROTARY Price: $21.50 |
| 3 | 72531-VH7-000 | BLADE, ROTARY (UPPER) Price: $17.94 |
| 5 | 90105-VA3-J01 | SEE PART DETAILS - PRI; BOLT, HEX. (10X25) Price: $1.86 |
| 6 | 90109-VG3-000 | BOLT, FLANGE (3/8-24X1") Price: $1.00 |
| 7 | 90502-VG3-000 | WASHER, SPRING (10MM) Price: $1.18 |
| 8 | 90751-VG3-000 | KEY, WOODRUFF (3/16X5/8) Price: $0.40 |
| 9 | 72610-VG3-030 | HOLDER, BLADE Price: $89.90 |
| 10 | 75161-VL0-S00 | PULLEY, DRIVE Price: $13.32 |
| 14 | 22453-VL0-S00 | GUIDE, ENGINE BELT Price: $12.02 |
